The following sections explain the steps in detail.
How to Mount the Switch on a Rapid 45 Duct
This topic describes the installation procedure for mounting the switch on a rapid 45 duct.
Procedure
Step 1 Cut the front cover of the duct on both sides to make an opening corresponding to the width of the switch.

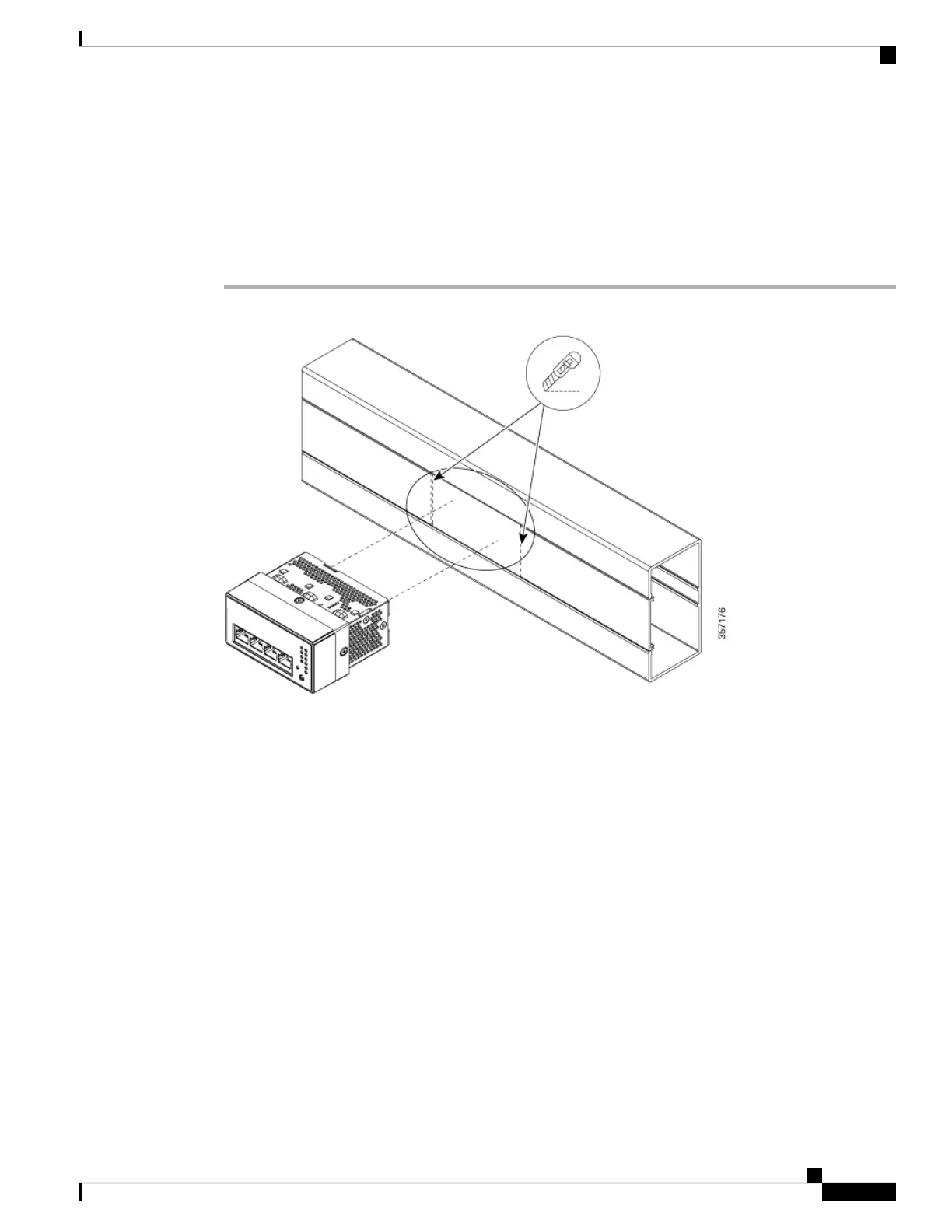

Step 2 Align and insert the switch in to the opening in the duct such that the four lancing features locks into the
opening on the duct.
Cisco Catalyst Micro Series Switch Hardware Installation Guide
13
Switch Installation
How to Mount the Switch on a Rapid 45 Duct
