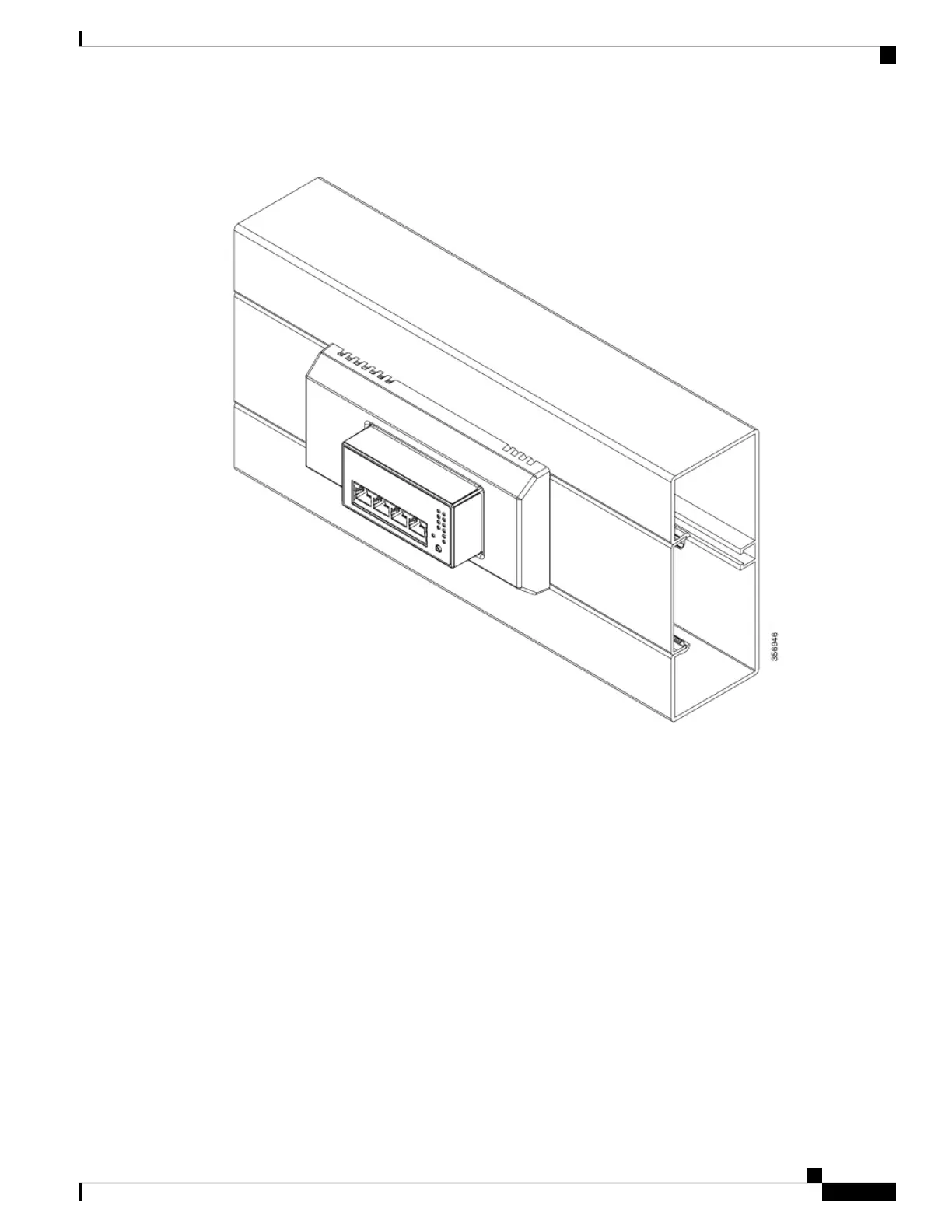

Figure 7: Switch Mounted on a Cable Duct with Mounting Box
How to Mount the Switch in a Cable Duct with Anchor Rail
This topic describes the installation procedure for mounting the switch on a wall duct with anchor rail. This
procedure assumes that you have an existing duct with device support and bracket installed.
Before you begin
Ensure you have the following accessories available before starting the installation.
