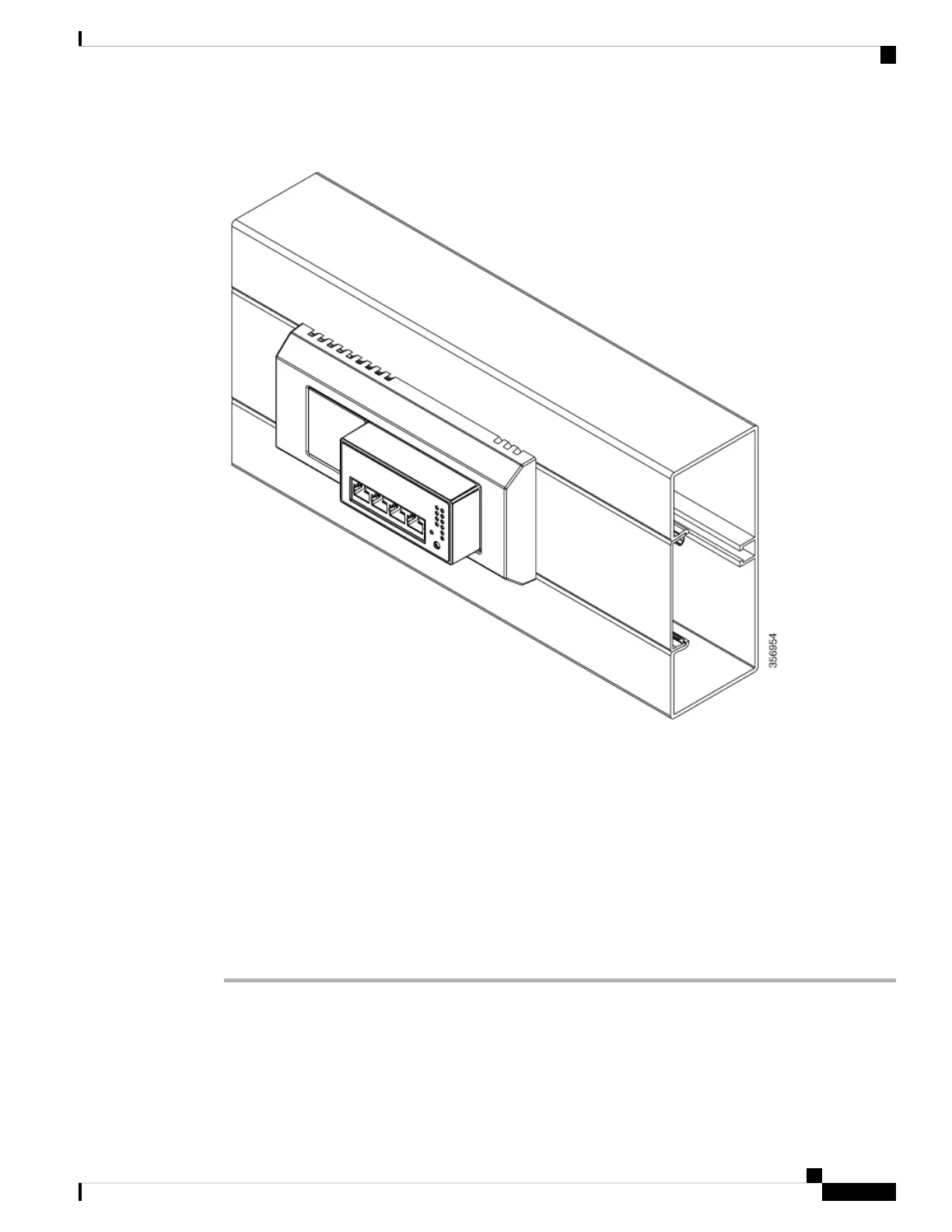

Figure 9: Switch Mounted in a Front-Locking Cable Duct
How to Mount the Switch on a DIN Rail
Before you begin
Ensure you have obtained the following before proceeding with the mounting:
• DIN rail clip
• Two Phillips flat head screws
Procedure
Step 1 Attach the DIN rail clip to the rear of the switch using the two screws provided in the kit.
Cisco Catalyst Micro Series Switch Hardware Installation Guide
37
Switch Installation
How to Mount the Switch on a DIN Rail
