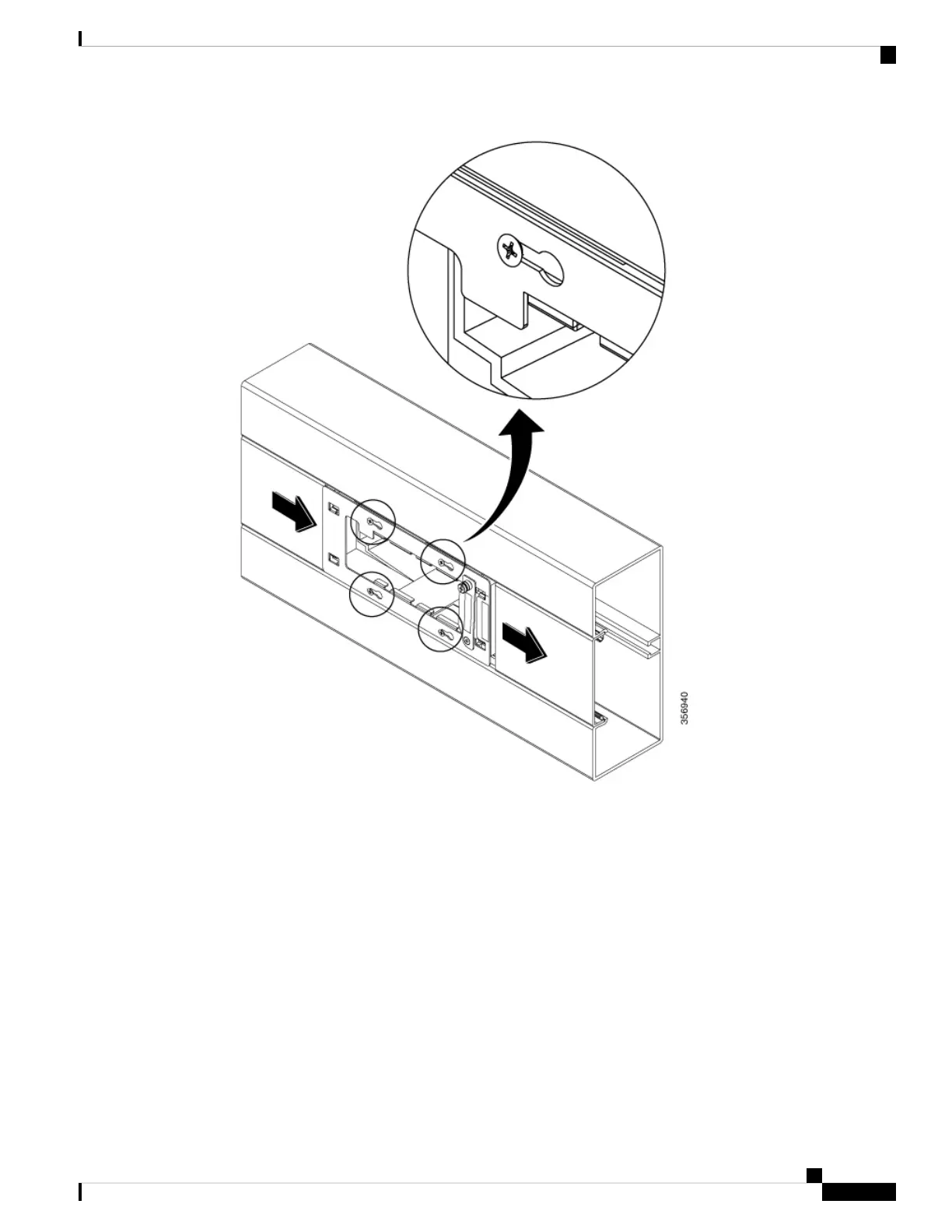

Step 4 Unscrew the locking plate on the mounting bracket and rotate it by 90 degrees clockwise to make enough
space to install the switch.
Cisco Catalyst Micro Series Switch Hardware Installation Guide
19
Switch Installation
How to Mount the Switch in a Cable Duct with Mounting Box
