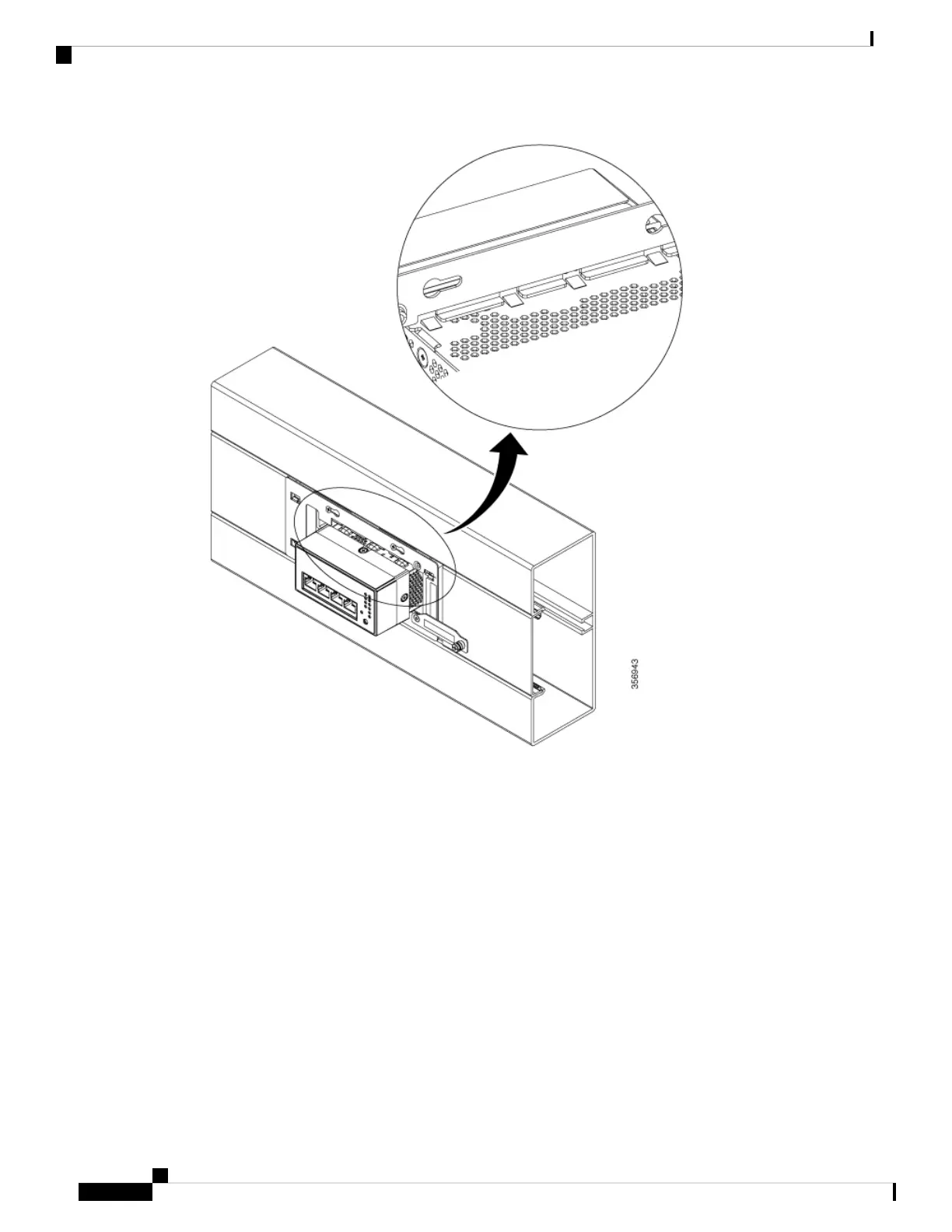

Step 7 Slide the switch to the left until the switch touches the other end of the bracket.
Step 8 Rotate the locking plate on the mounting bracket 90 degrees anticlockwise and fasten the screw.
Cisco Catalyst Micro Series Switch Hardware Installation Guide
22
Switch Installation
How to Mount the Switch in a Cable Duct with Mounting Box
