Cisco CDB-8U User Manual

Cables and Adapters
Cable Pinouts

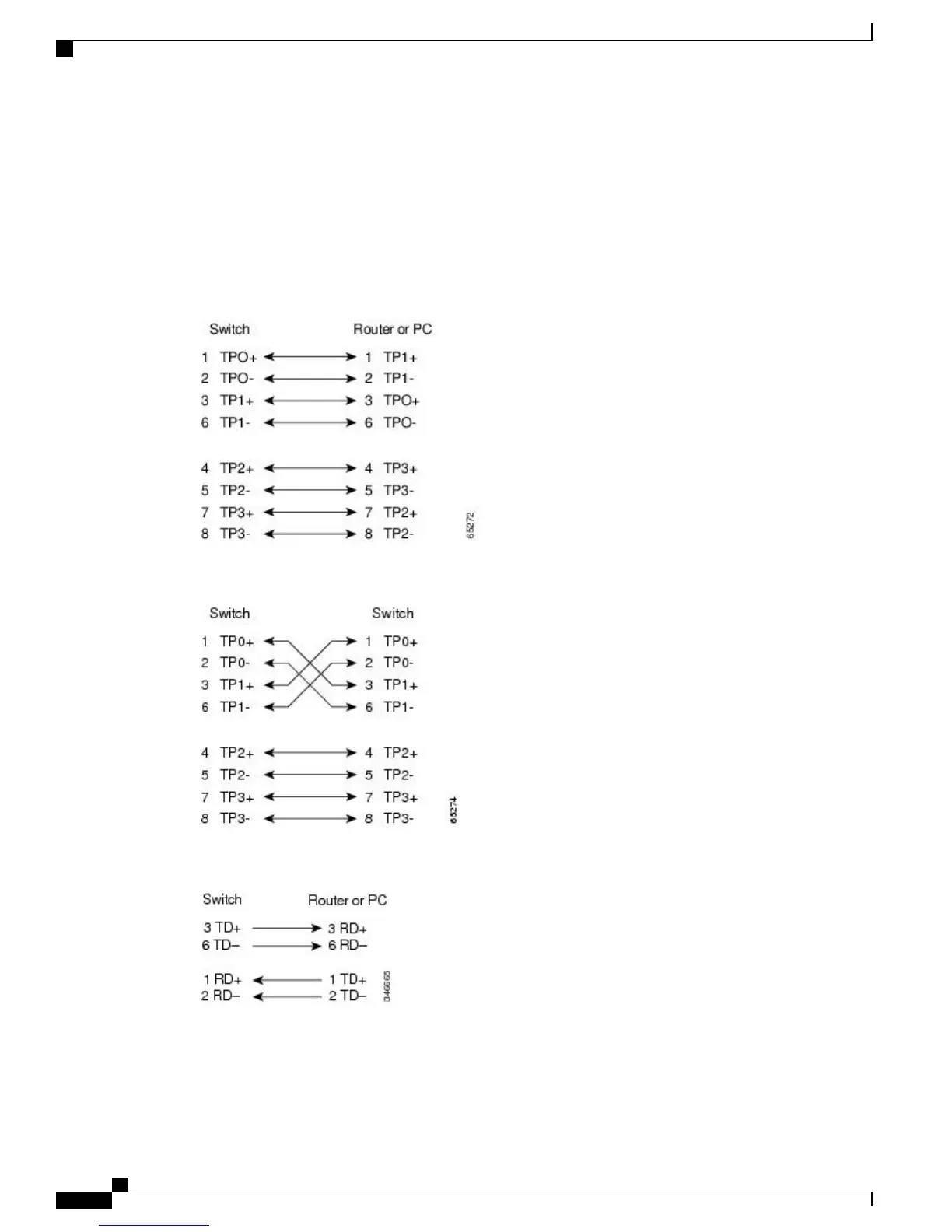

Figure 59: Four Twisted-Pair Straight-Through Cable Schematic
Figure 60: Four Twisted-Pair Semi-Cross Cable Schematic
Figure 61: Two Twisted-Pair Straight-Through Cable Schematic
Figure 62: Two Twisted-Pair Crossover Cable Schematic
Catalyst Digital Building Series Switch Hardware Installation Guide
90
Connector and Cable Specifications
Cables and Adapters

Cisco CDB-8U Specifications
