CDB-MNT-FLEX-C14 accepts 100V – 240V AC Input.
Step 5
Slide the switch into the flexible mount in a front mounting position as shown in the figure and tighten thumb
screws to secure the switch to flexible mount.
Switches require at least 3 inches of space above the heatsink fins for proper cooling. Do not
stack multiple switches on top of each other in horizontal mounting orientation. To collocate
multiple switches, use top vertical mounting orientation as described in Top Vertical Mount .
Warning

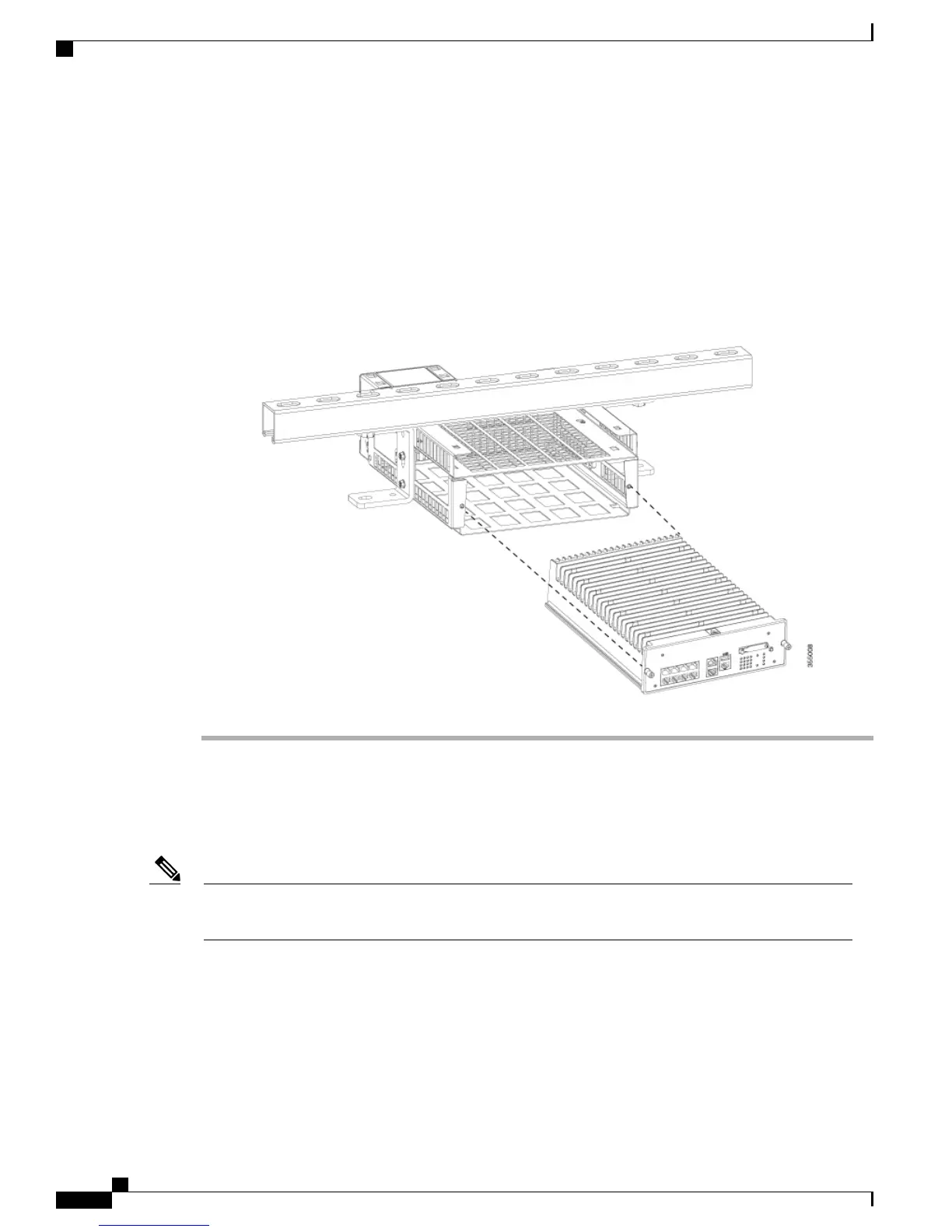

Figure 18: Inserting switch into flexible mount assembly
Horizontal Mounting - Overmount
To install the Catalyst Digital Building Series Switch in a flexible mount in horizontal overmount orientation,
follow these steps :
If you are using the flexible mount with a direct-wired junction box (CDB-MNT-FLEX-DIR), refer to the
Electrical Installation section before you start the installation procedure.
Note
Before You Begin
•
Refer to Installation Guidelines section.
•
Refer to Electrical Installation section if you are using the flexible mount with direct-wired junction box
(CDB-MNT-FLEX-DIR).
Catalyst Digital Building Series Switch Hardware Installation Guide
30
Switch Installation
Flexible Mounting
