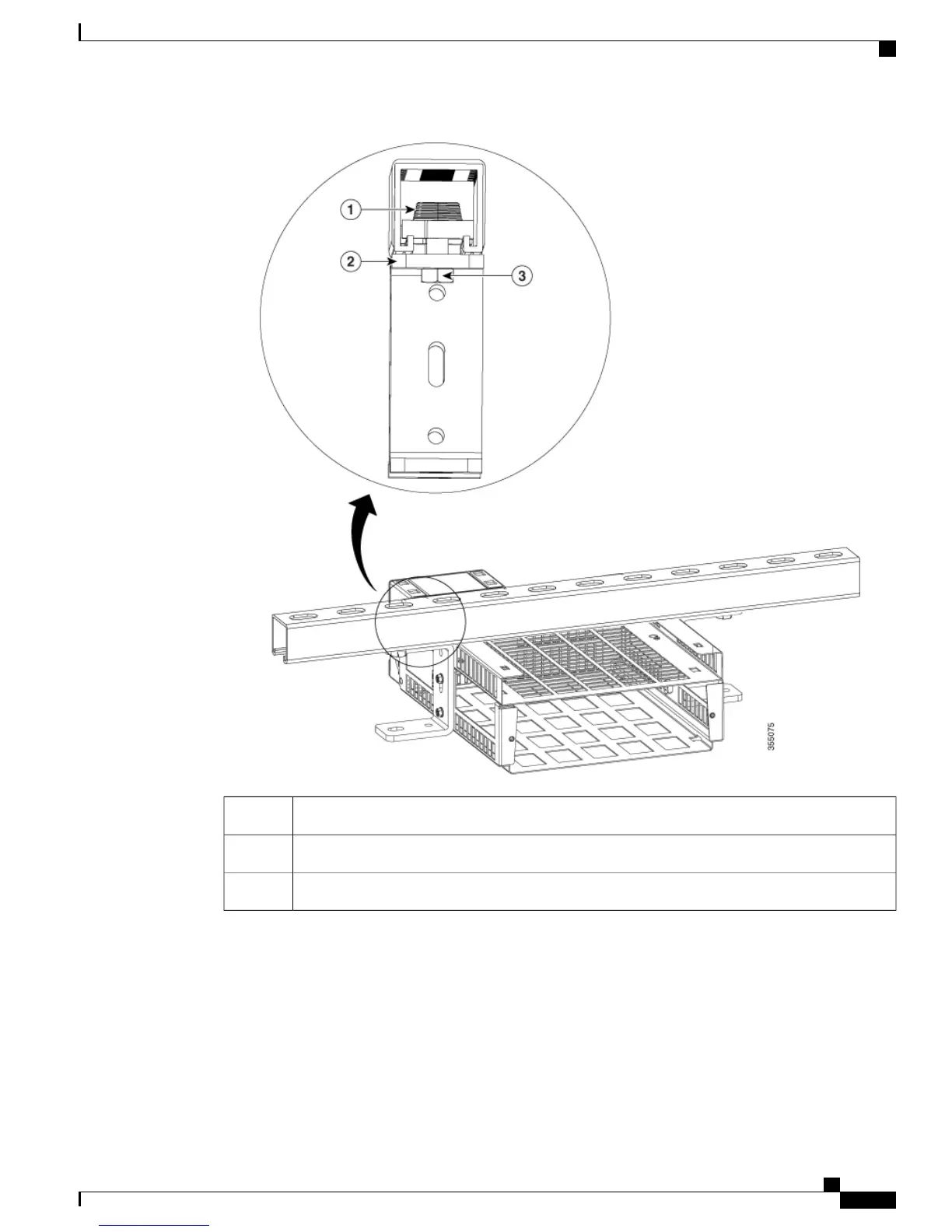

Strut channel nut1
U-shaped mounting bracket2
Bolt matching the strut nut3
Step 4
Connect to a power source.
•
To connect the assembly which uses flexible mount with direct-wired junction box
(CDB-MNT-FLEX-DIR) to a power source, use an armored cable. See Electrical Installation section.
CDB-MNT-FLEX-DIR accepts 100V – 277V AC Input.
•
To connect the assembly which uses flexible mount with IEC C14 power junction box
(CDB-MNT-FLEX-C14) to a power source, use country-specific power cord.
Catalyst Digital Building Series Switch Hardware Installation Guide
29
Switch Installation
Flexible Mounting
