Repeat the step to attach the other bracket to the strut channel.

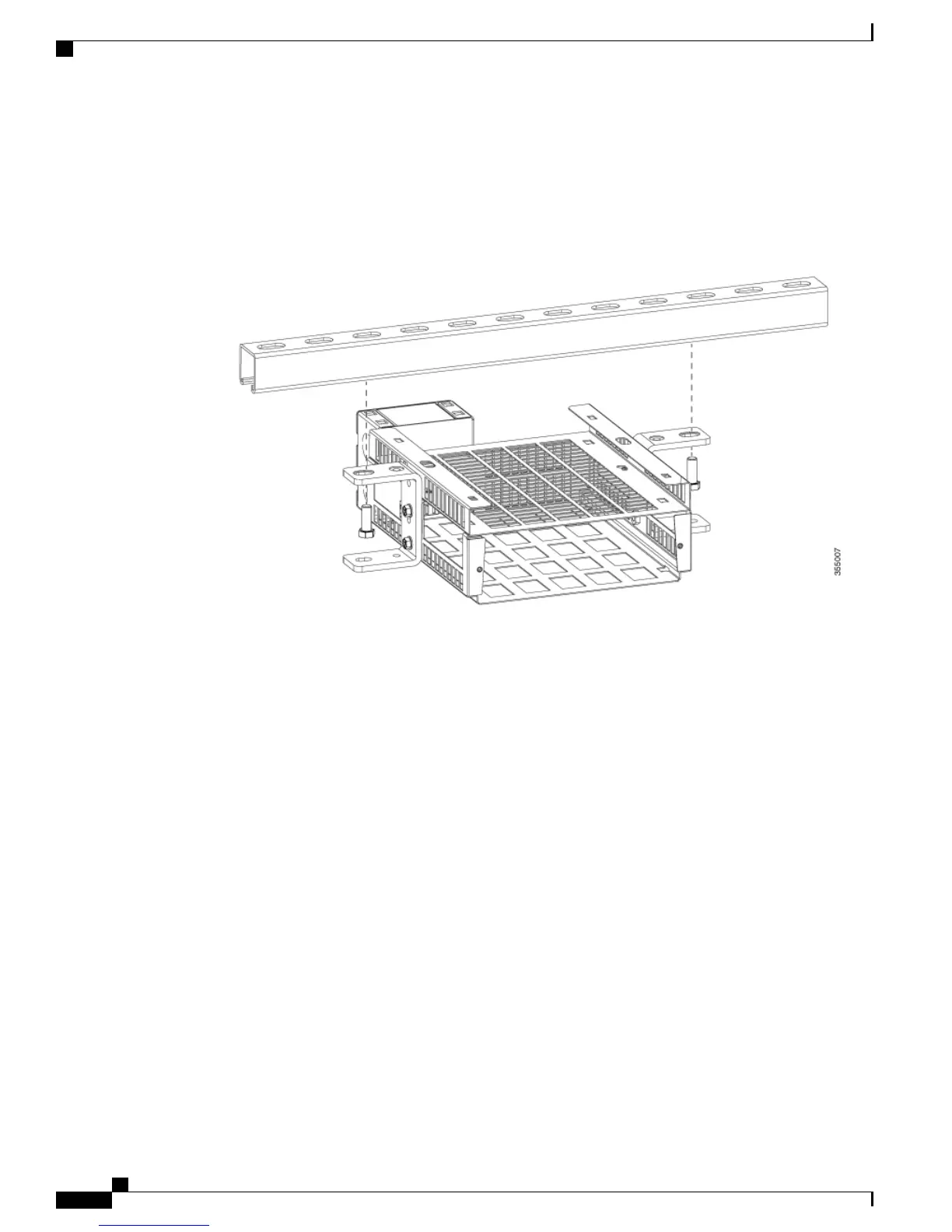

Figure 17: Attaching flexible mount assembly to strut channel
In the following figure, 3/8" hole is used to attach the assembly to the strut channel. You can also
use 1/4" hole to attach the assembly to the strut channel.
Note
Catalyst Digital Building Series Switch Hardware Installation Guide
28
Switch Installation
Flexible Mounting
