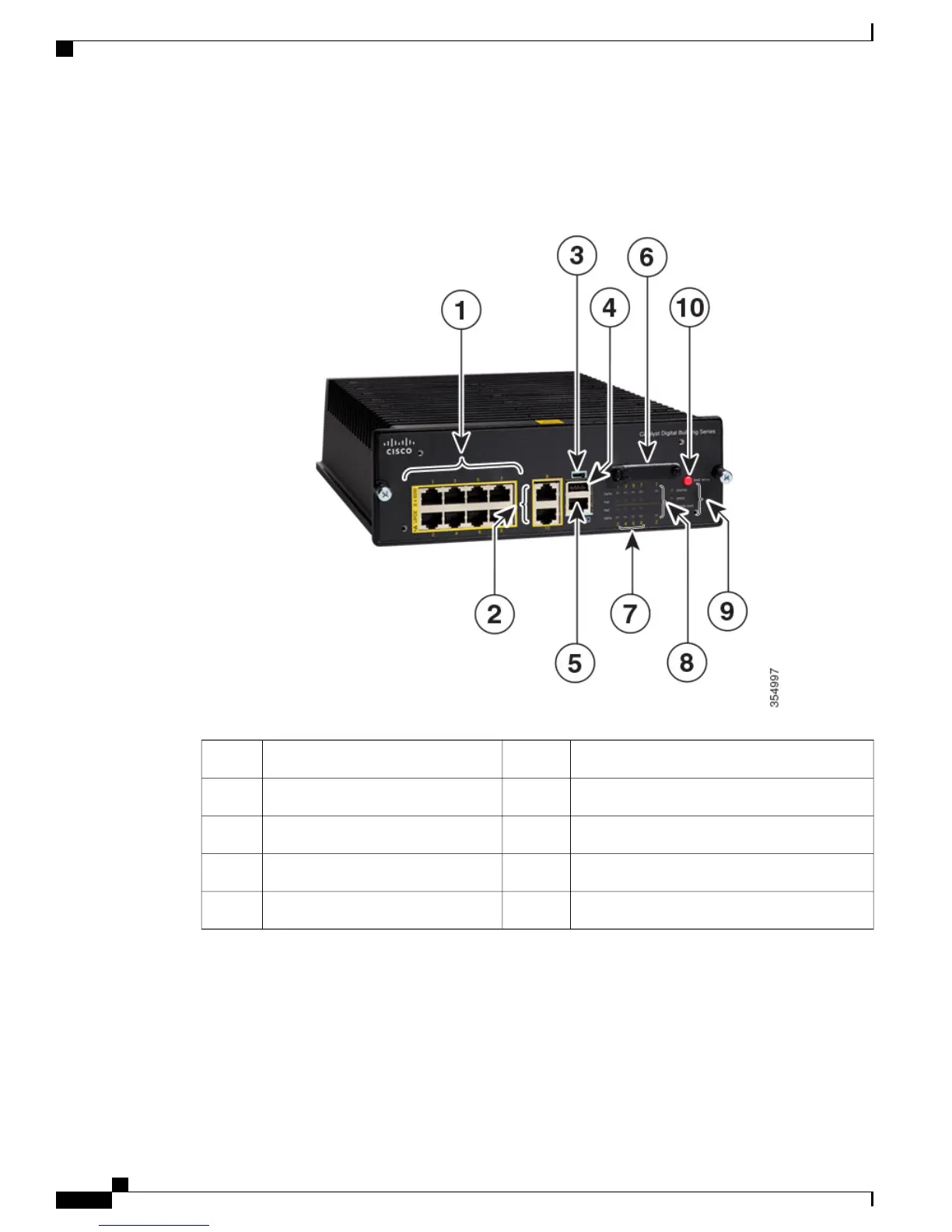

Figure 2: Front Panel of a Catalyst Digital Building Series UPOE Switch
SD Card Slot6Downlink UPOE ports1
Downlink port data and PoE LEDs7Uplink Gigabit Ethernet ports2
Uplink port data LEDs8USB micro-Type B (console) port3
System LEDs9USB Type A port4
Mode button10RJ-45 Console port5
PoE, PoE+ and UPOE Ports
The ports on the PoE/PoE+ switch provide PoE+ support for devices compliant with IEEE 802.3af and IEEE
802.3at and also provide PoE support for Cisco IP Phones and LED Luminaries. The PoE switch ports are
Power Source equipment (PSE) capable and source power to PD devices (Luminaries) connected to the
Catalyst Digital Building Series Switch Hardware Installation Guide
4
Product Overview
PoE, PoE+ and UPOE Ports
