Step 3
Position the assembly as shown in the figure. Align one of the screw holes — 1/4" or 3/8" — of the mounting
bracket to the strut nut hole on the strut channel and secure the bracket to the strut channel using a bolt matching
to the strut nut.
The bolt must match the strut
nut.
Note
Repeat the step to attach the other bracket to the strut channel.

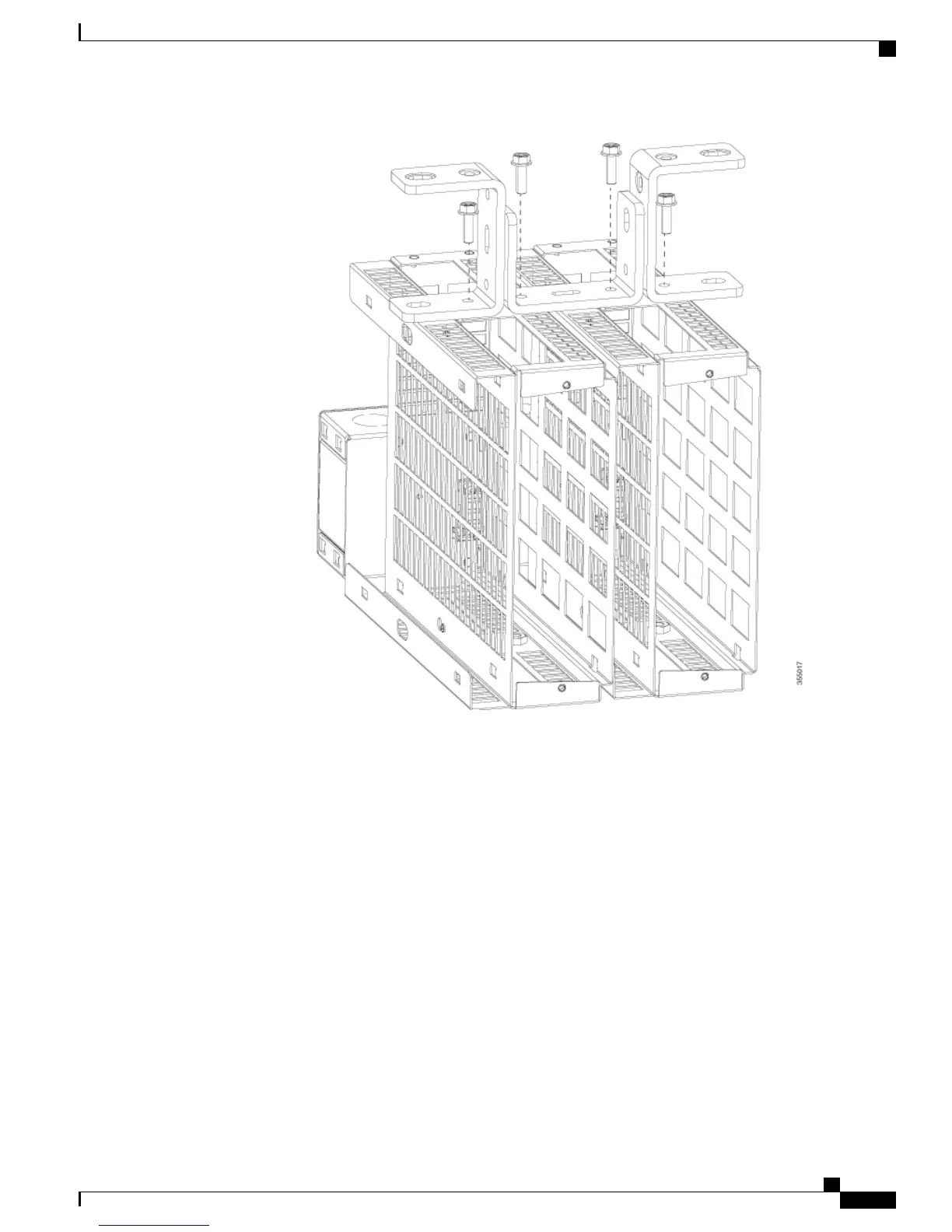

Figure 38: Attaching combined flexible mount assembly to strut
In the following figure, 3/8" hole is used to attach the assembly to the strut channel. You can also
use 1/4" hole to attach the assembly to the strut channel.
Note
Catalyst Digital Building Series Switch Hardware Installation Guide
55
Switch Installation
Flexible Mounting
