2-2
Cisco CRS-1 Carrier Routing System SIP and SPA Hardware Installation Guide
OL-17439-01
Chapter 2 Overview: Cisco CRS-1 SPA Interface Processor
Cisco CRS-1 SIP-800 Overview
LEDs
The Cisco CRS-1 SIP-800 has one LED, as shown in Figure 2-1.

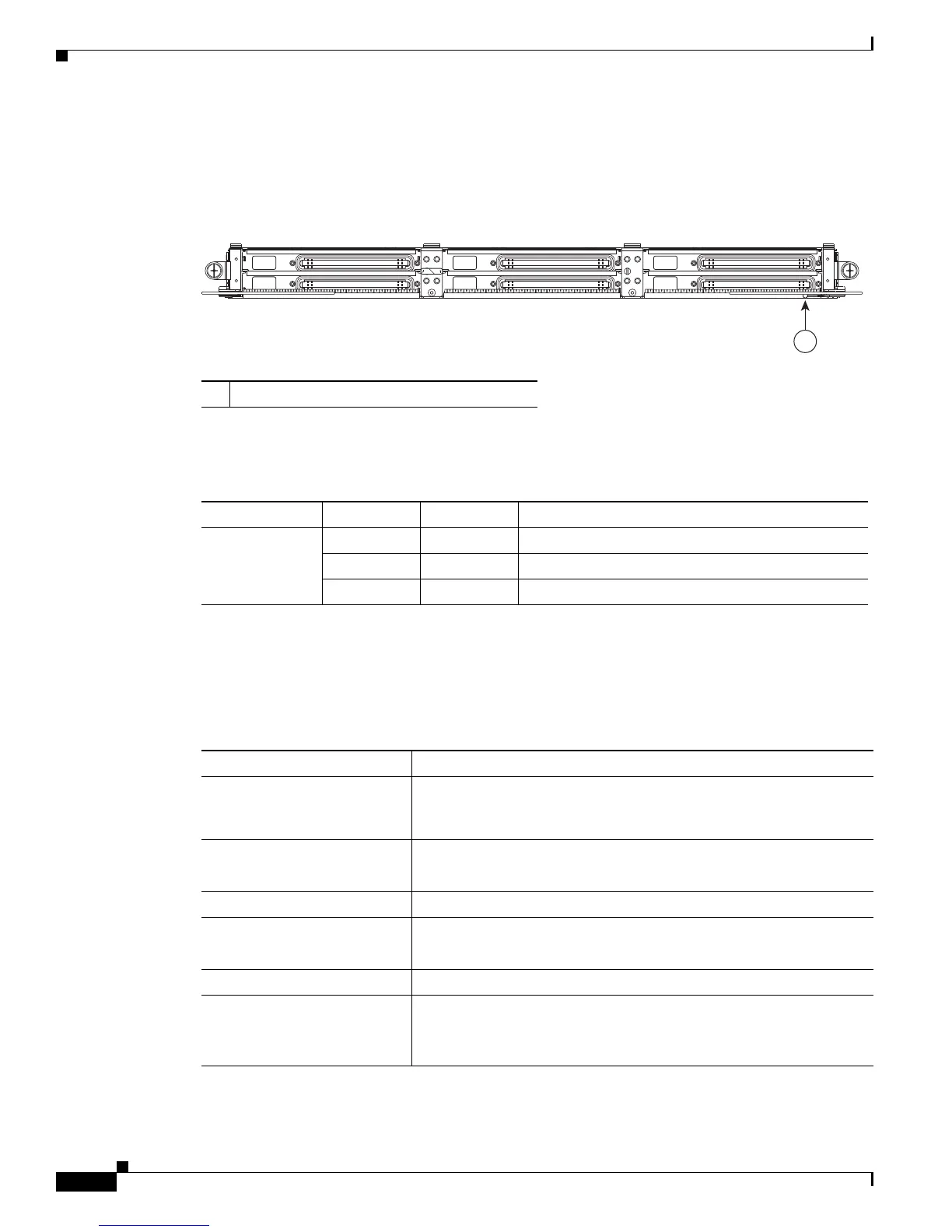

Figure 2-1 Cisco CRS-1 SIP-800 Faceplate
Table 2-2 describes the Cisco CRS-1 SIP-800 LED.
Physical Specifications
Table 2-3 shows the Cisco CRS-1 SIP-800 physical specifications.
1 Status LED
1
129778
52 30
4 1
SPA
SUB-
SLOT
4
SPA
SUB-
SLOT
1
SPA
SUB-
SLOT
5
SPA
SUB-
SLOT
2
SPA
SUB-
SLOT
3
SPA
SUB-
SLOT
0
Ta b l e 2-2 Cisco CRS-1 SIP-800 LED
LED Label Color State Meaning
— Green On The SIP is online and standing by.
Amber On The SIP has failed and needs to be replaced.
Off Off The SIP is offline and deactivated.
Ta b l e 2-3 Cisco CRS-1 SIP-800 Physical Specifications
Description Specifications
Physical dimensions
(H x W x D)
20.6 x 1.8 x 11.2 in. (52.32 x 4.57 x 28.4 cm)
Occupies one physical layer interface module (PLIM) slot on the
Ci
sco CRS-1 router
Weight
• Minimum, without any SPAs: 5.8 lb (2.6 kg)
• Maximum, with 6 SPAs: 15 lb (6.8 kg)
Shipping weight 27 lb (12.25 kg)
Operating temperature
• Normal: 41 to 104°F (5 to 40°C)
• Short term
1
: 23 to 122°F (–5 to 50°C)
1. Short term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in one year. (This
refers to a total of 360 hours in any given year, but no more than 15 occurrences during that one-year period.)
Storage temperature –40 to 158°F (–40 to 70°C)
Relative humidity
• Normal: 5 to 85%
• Short term
1
: 5 to 90% but not to exceed 0.024 kg of water per kg
of dry air
