3-28
Cisco CRS-1 Carrier Routing System SIP and SPA Hardware Installation Guide
OL-17439-01
Chapter 3 Overview: Cisco CRS-1 Shared Port Adapters
5-Port Gigabit Ethernet SPA Overview
1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA Fixed Optical Transceiver,
Connector, and Cables
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SPA uses fixed optical transceivers, one for receive
(RX) and one for transmit (TX), for SONET and SDH connection to the network. Only Very Short Reach
(VSR) optics are supported.
The 1-Port OC-192c/STM-64 POS/RPR VSR Optics SP
A uses multimode MTP-type connectors:
• Multimode—9.95 Gbps, OC-192 optical fiber (SONET STS-192c or SDH STM-64c)
Use a multimode optical fiber that has a modal-f
ield diameter of 8.7 ±0.5 microns. (Nominal
diameter is approximately 10/125 microns.)
Use a multimode optical fiber cable to connect your router to a network.
Figure 3-19 s
hows the cable type for use with the fixed optical transceiver module on the 1-Port
OC-192c/STM-64 POS/RPR VSR Optics SPA.

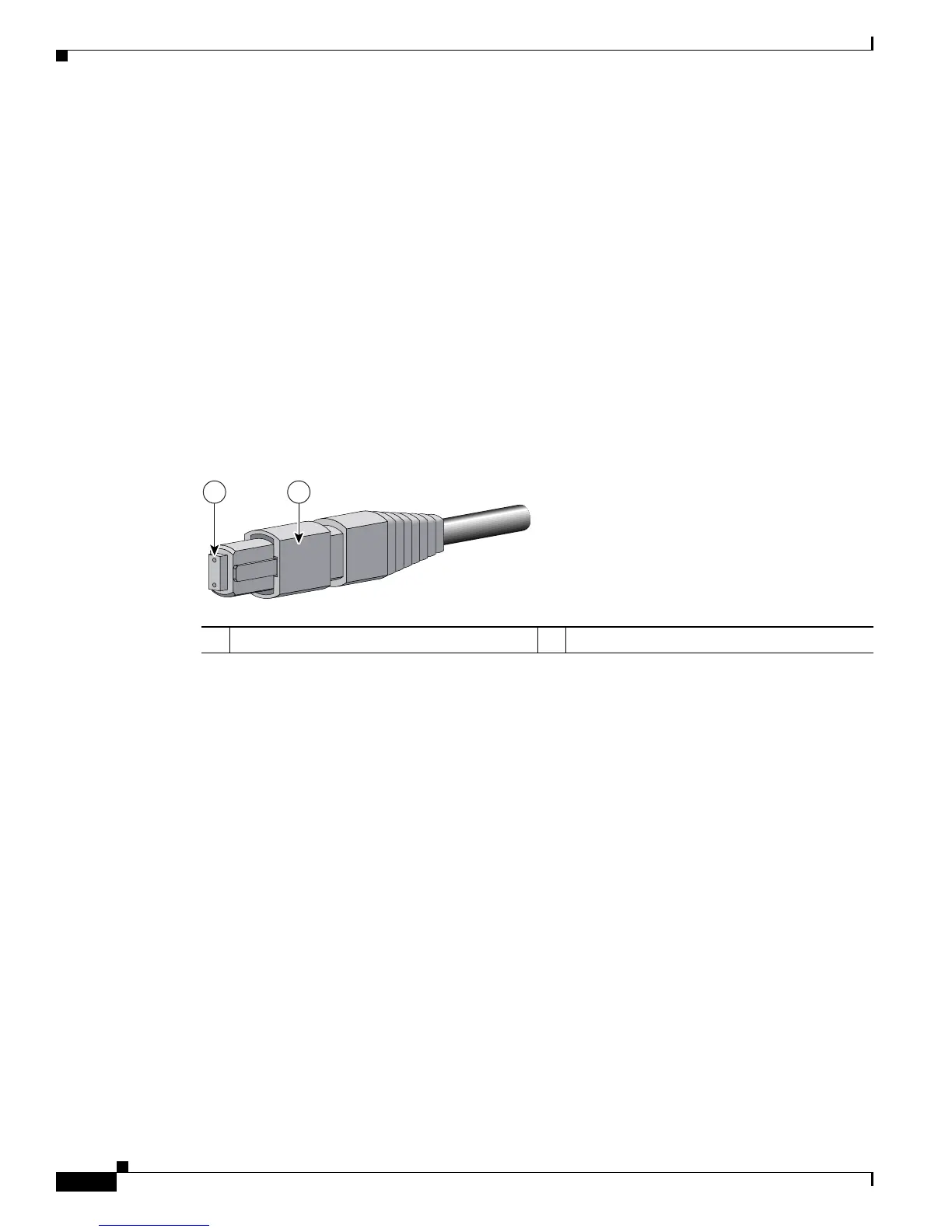

Figure 3-19 Simplex MTP Cable Connector (Multimode—VSR Only)
5-Port Gigabit Ethernet SPA Overview
The following sections describe the 5-Port Gigabit Ethernet SPA:
• 5-Port Gigabit Ethernet SPA LEDs, page 3-29
• 5-Port Gigabit Ethernet SPA Cables and Connectors, page 3-29
1 MTP female connector 2 Spring-action disconnect latch
66916
1 2
