Cisco CRS-1 - Carrier Routing System Router Hardware Installation Guide

3-23
Cisco CRS-1 Carrier Routing System SIP and SPA Hardware Installation Guide
OL-17439-01
Chapter 3 Overview: Cisco CRS-1 Shared Port Adapters
1-Port OC-192c/STM-64 POS/RPR XFP SPA Overview
1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs
The 1-Port OC-192c/STM-64 POS/RPR XFP SPA has six LEDs, as shown in Figure 3-16.

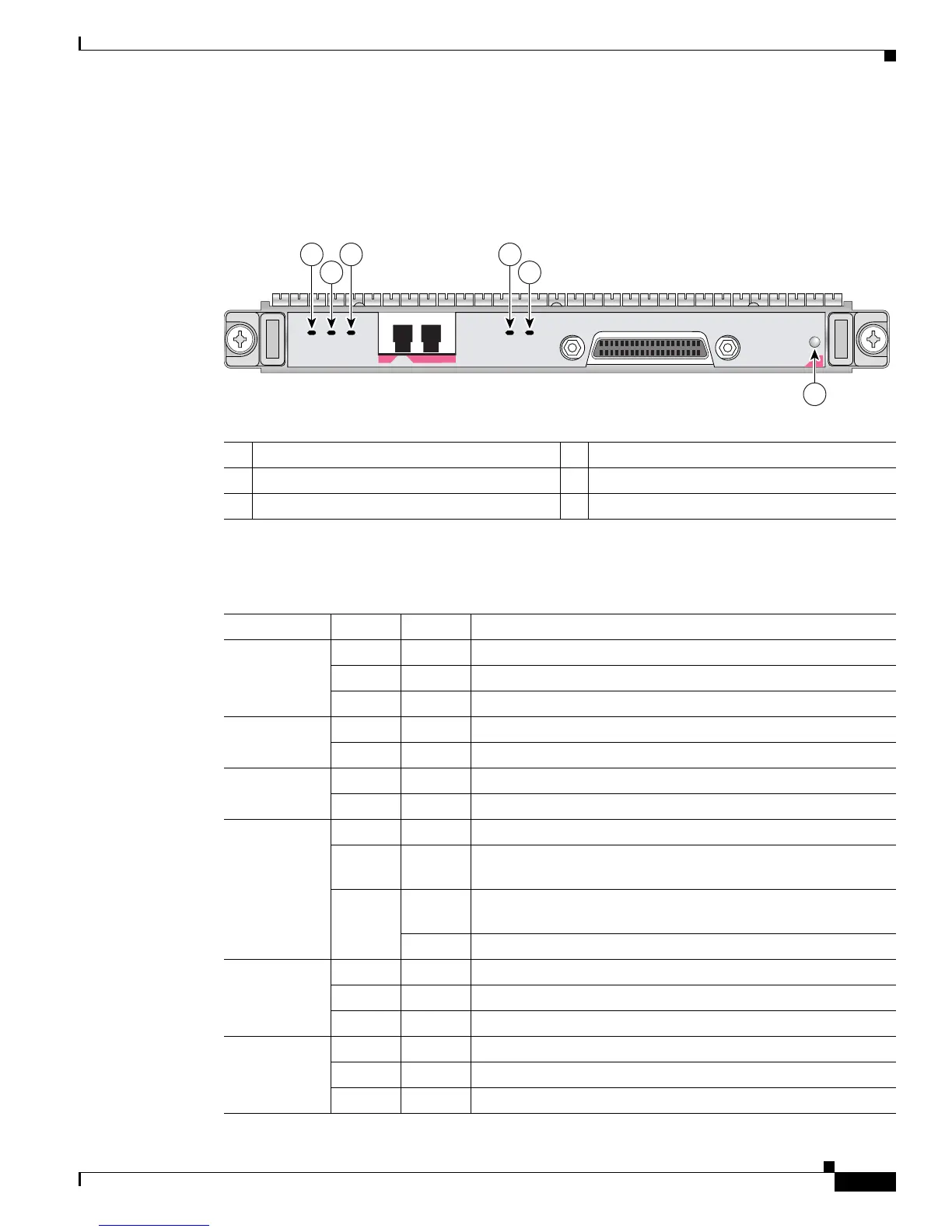

Figure 3-16 1-Port OC-192c/STM-64 POS/RPR XFP SPA Faceplate
Table 3-12 describes the 1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs.
1 WRAP LED 4 CARRIER LED
2 PASSTHRU LED 5 ACTIVE LED
3 MATESYNC LED 6 STATUS LED
MATESYNC
PASSTHRU
WRAP
CARRIER
ACTIVE
SPA-0C192POS-XFP
STATUS
0
129432
1
2
3 4
5
6
Ta b l e 3-12 1-Port OC-192c/STM-64 POS/RPR XFP SPA LEDs
LED Label Color State Meaning
WRAP Off Off Port is not in wrap mode.
Green On Port is in wrap mode somewhere on the ring.
Amber On Port is in wrap mode locally.
PASSTHRU Off Off Port is not in pass-through mode.
Amber On Port is in pass-through mode.
MATESYNC Off Off Mate port is not synchronized.
Green On Mate port is synchronized.
CARRIER Off Off Port is not enabled by software.
Green On Port is enabled by software, and t
here is a valid SONET signal
without alarms.
Amber On Port is enabled by software, and there is at least one alarm (LOS,
LOF
, RDI, and so on).
Blinking SRP mode mismatch alarm is indicated.
ACTIVE Off Off Port is not enabled by software.
Green On Port is enabled by software, and loopback is off.
Amber On Port is enabled by software, and loopback is on.
STATUS Off Off SPA power off.
Green On SPA is ready and operational.
Amber On SPA power is on and good, and the SPA is being configured.
