Chapter 3 Overview: Cisco CRS-1 Shared Port Adapters
8-Port OC-12c/STM-4 Multirate POS SPA Overview

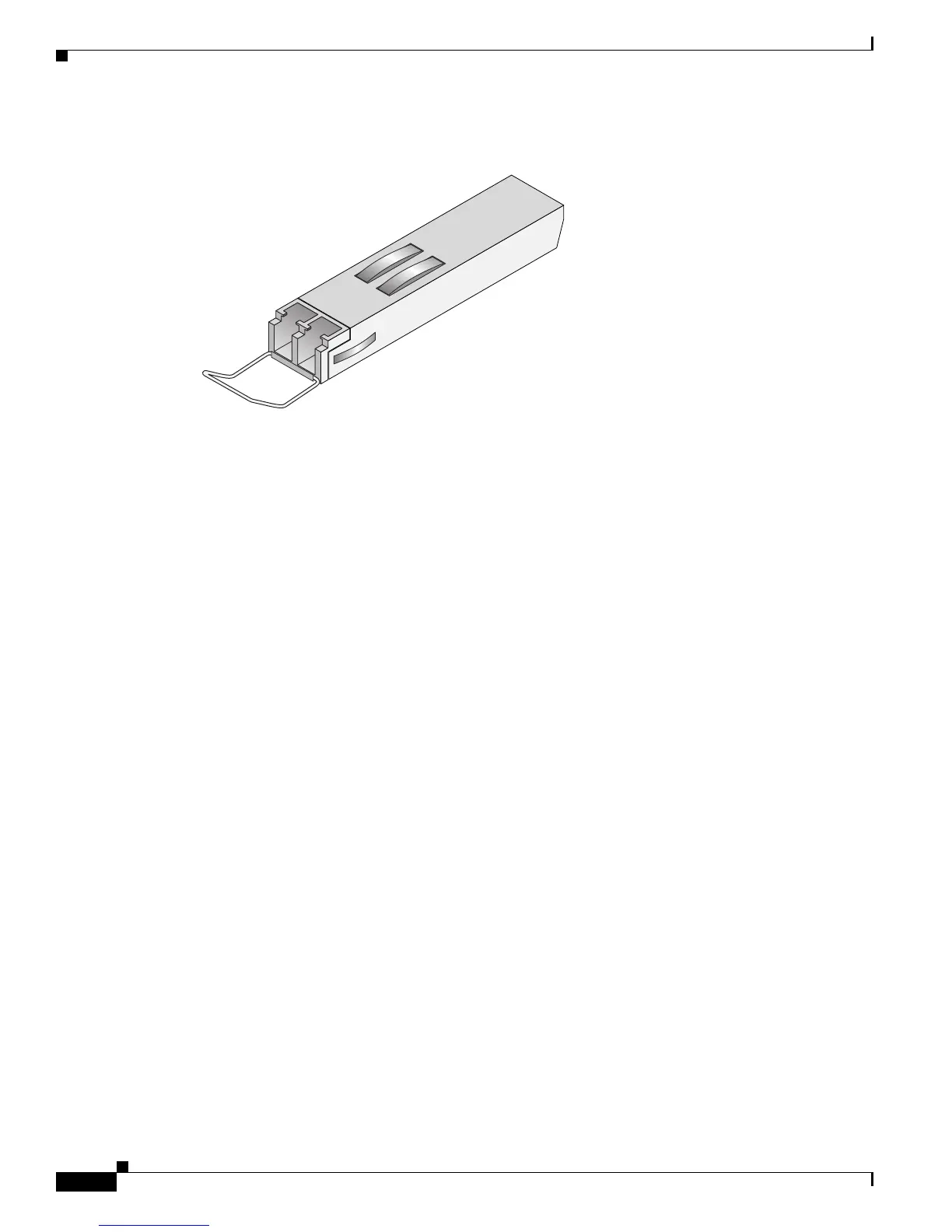

Figure 3-12 SFP Optics Module
The following OC-3 optical fiber options are available for the 8-Port OC-12c/STM-4 Multirate POS
SPA:
• Multimode—155.52-Mbps, OC-3 optical fiber (SONET STS-3c or SDH STM-1)
Use a multimode optical fiber that has a core/cladding diameter of 62.5/125 microns.
• Single-mode—155.52-Mbps, OC-3 optical fiber (SONET STS-3c or SDH STM-1)
Use a single-mode optical fiber that has a modal-field diameter of 8.7 ± 0.5 microns. (Nominal
d
iameter is approximately 10/125 microns.)
The following OC-12 optical fiber options are available for
the 8-Port OC-12c/STM-4 Multirate POS
SPA:
• Multimode—622.08-Mbps, OC-12 optical fiber (SONET STS-12c or SDH STM-4)
Use a multimode optical fiber that has a core/cladding diameter of 62.5/125 microns.
• Single-mode—622.08-Mbps, OC-12 optical fiber (SONET STS-12c or SDH STM-4)
Use a single-mode optical fiber that has a modal-field diameter of 8.7 ± 0.5 microns. (Nominal
d
iameter is approximately 10/125 microns.)
For single-mode and multimode optical fiber connections, you c
an use either a duplex LC-type cable (see
Figure 3-13) or t
wo simplex LC-type cables, one for transmit (TX) and one for receive (RX).
Use single-mode (for short-, intermediate- or long-reach configurations) or multimode optical fiber
cable to
connect your router to a network or two OC-3-equipped or OC-12-equipped routers
back-to-back.
Long-range SFP optical transceiver modules (for long-reach conf
igurations) cannot be connected
back-to-back without using an attenuator between them.
