Serial Number Location
You can view the serial number and additional model information on the compliance label located on the
bottom of the chassis. The following figure shows a sample compliance label.

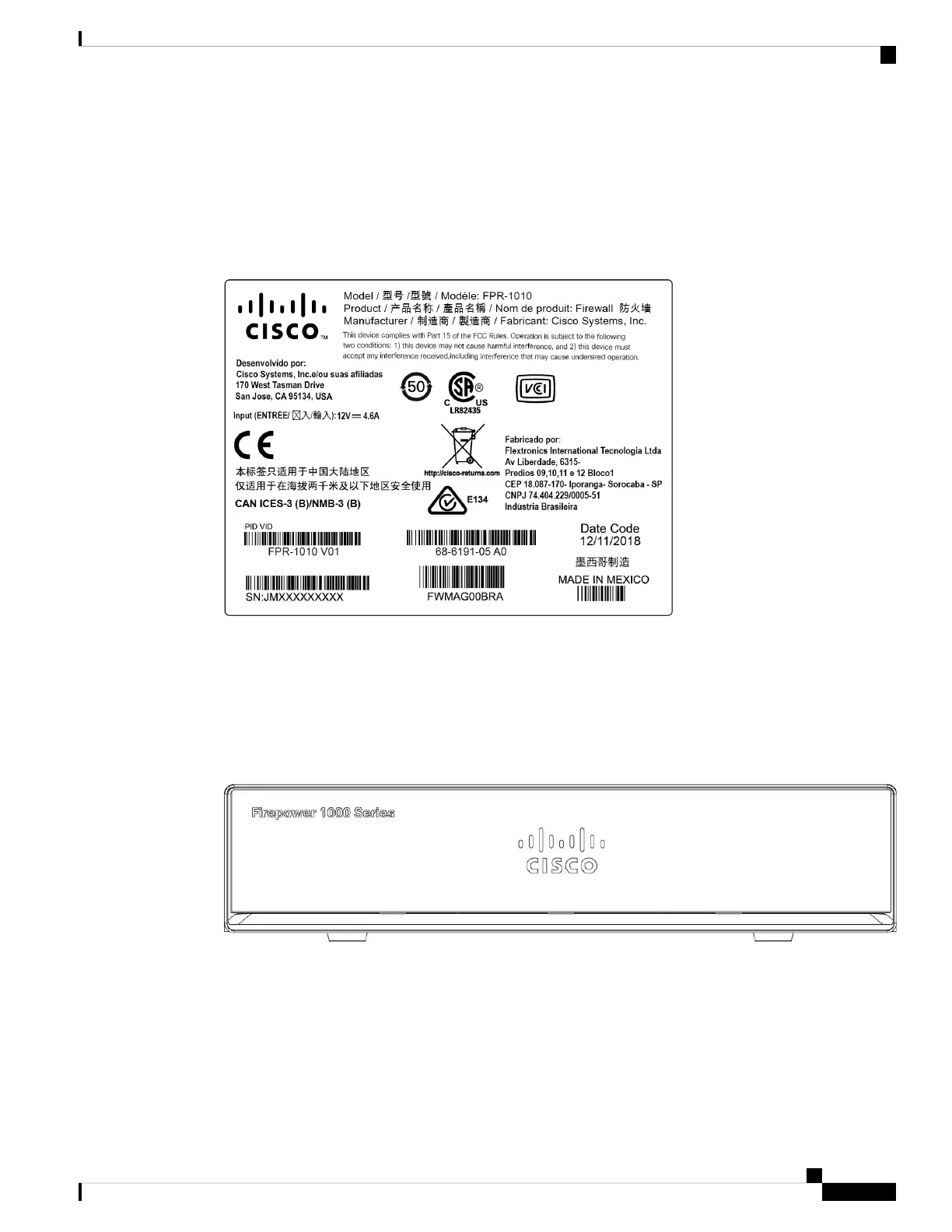

Figure 5: Compliance Label on the Chassis
Front Panel
The following figure shows the front panel of the Firepower 1010. Note that there are no connectors or LEDs
on the front panel.
Figure 6: Firepower 1010 Front Panel
Rear Panel
The following figure shows the rear panel of the Firepower 1010. See Status LEDs, on page 8 for a description
of the LEDs.
Cisco Firepower 1010 Hardware Installation Guide
7
Overview
Serial Number Location
