greatly increases reliability when compared to any other wireless or wired
data-transmission technology.

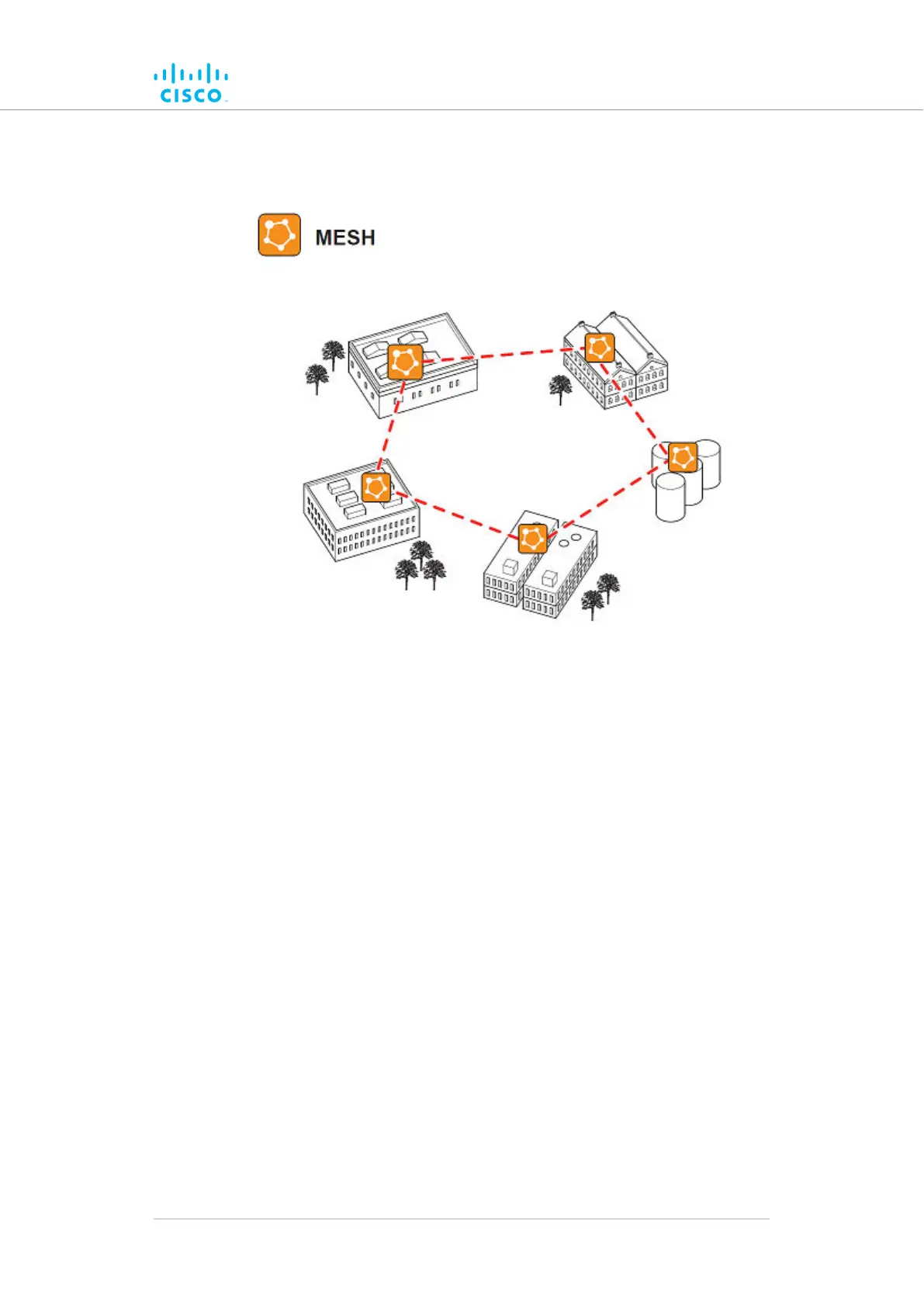

Figure 3. Cisco Mesh Networking Architecture
3.3. Cisco network addressing
3.3.1. Bridge IP addressing
If needed, the Cisco FM1200 Volo can be operated in Bridge mode. This
creates a single point-to-point connection between two network segments.
A simplified example of a Bridge mode connection is shown in Figure 4
(page 20).
As shipped from the factory, the wired ethernet ports of all Cisco
hardware components are assigned the same default IP address of
192.168.0.10/24.
No default IP address is associated with the wireless interface.
Getting Started
© 2021 Cisco and/or its affiliates. All rights reserved. Page 19 of 175
