Cisco IR829 Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Preparing to Connect the Router
Connecting a PC, Server, or Workstation
To connect a PC (or other Ethernet devices) to an Ethernet switch port, follow these steps:
Step 1 Connect one end of the Ethernet cable to an Ethernet switch port on the router. In this example a PC is
being connected to GE LAN Port 2. See
Figure 3-1.

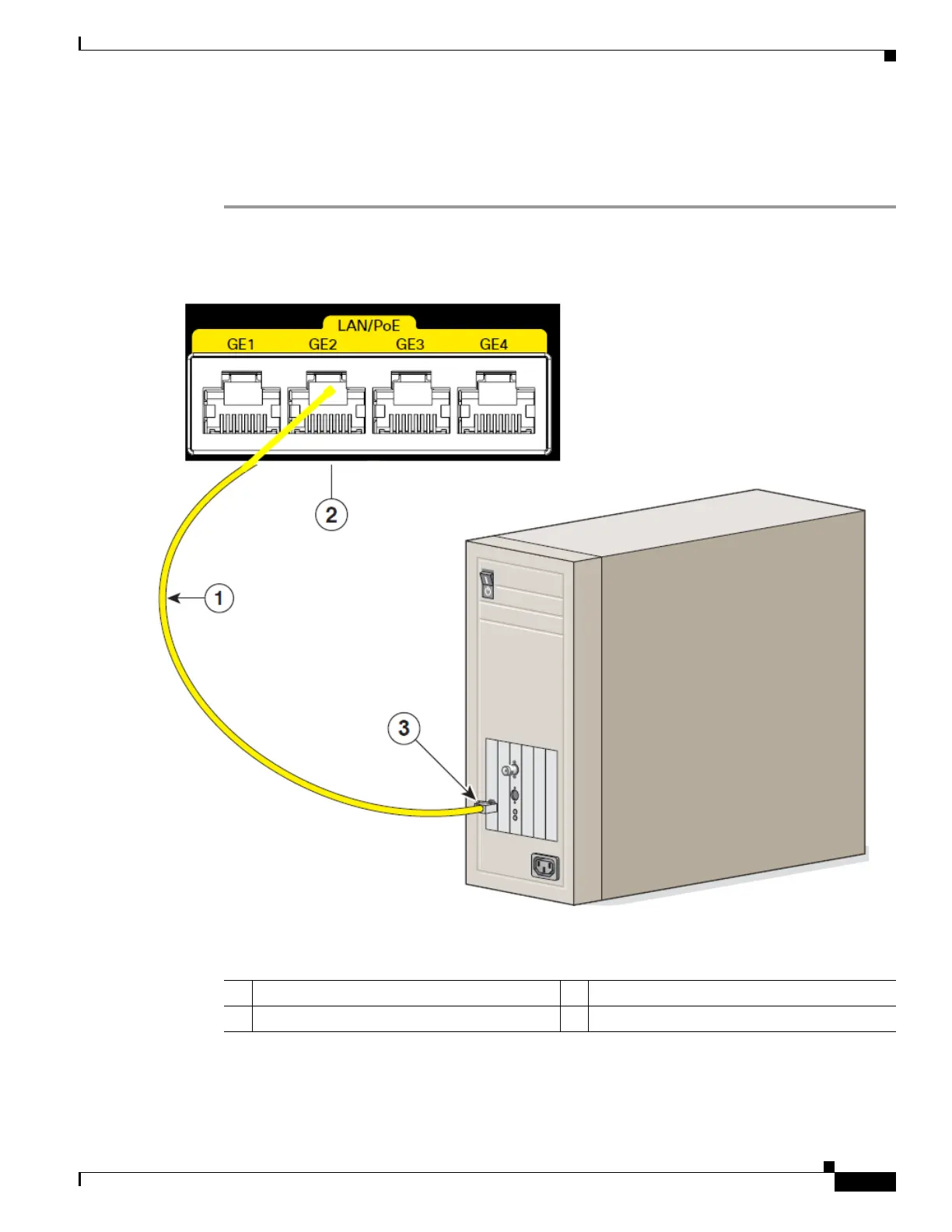

Figure 3-1 Connecting a Server, PC, or Workstation
Step 2 Connect the other end of the cable to the RJ-45 port on the network interface card (NIC) that is installed
in the PC, server, or workstation.
1 Ethernet cable 3 RJ-45 port on the PC, Server, or Workstation
2 Ethernet switch port on the router

Cisco IR829 Specifications

General

Serial Interfaces	1 x RS-232
USB Ports	1 x USB 2.0
Wireless	802.11a/b/g/n
Product Type	Router
Form Factor	Rack-mountable
Connectivity Technology	Wired, Wireless
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
WAN Ports Qty	2
LAN Ports Qty	4
Cellular Protocol	LTE
Memory	2 GB DDR3
WAN Interfaces	2 x Gigabit Ethernet
LAN Interfaces	4 x 10/100/1000 Ethernet
Operating Temperature	-20 °C to 60 °C
Processor	1.2 GHz
