Chapter 8 Configuring VLANs
Understanding VLANs

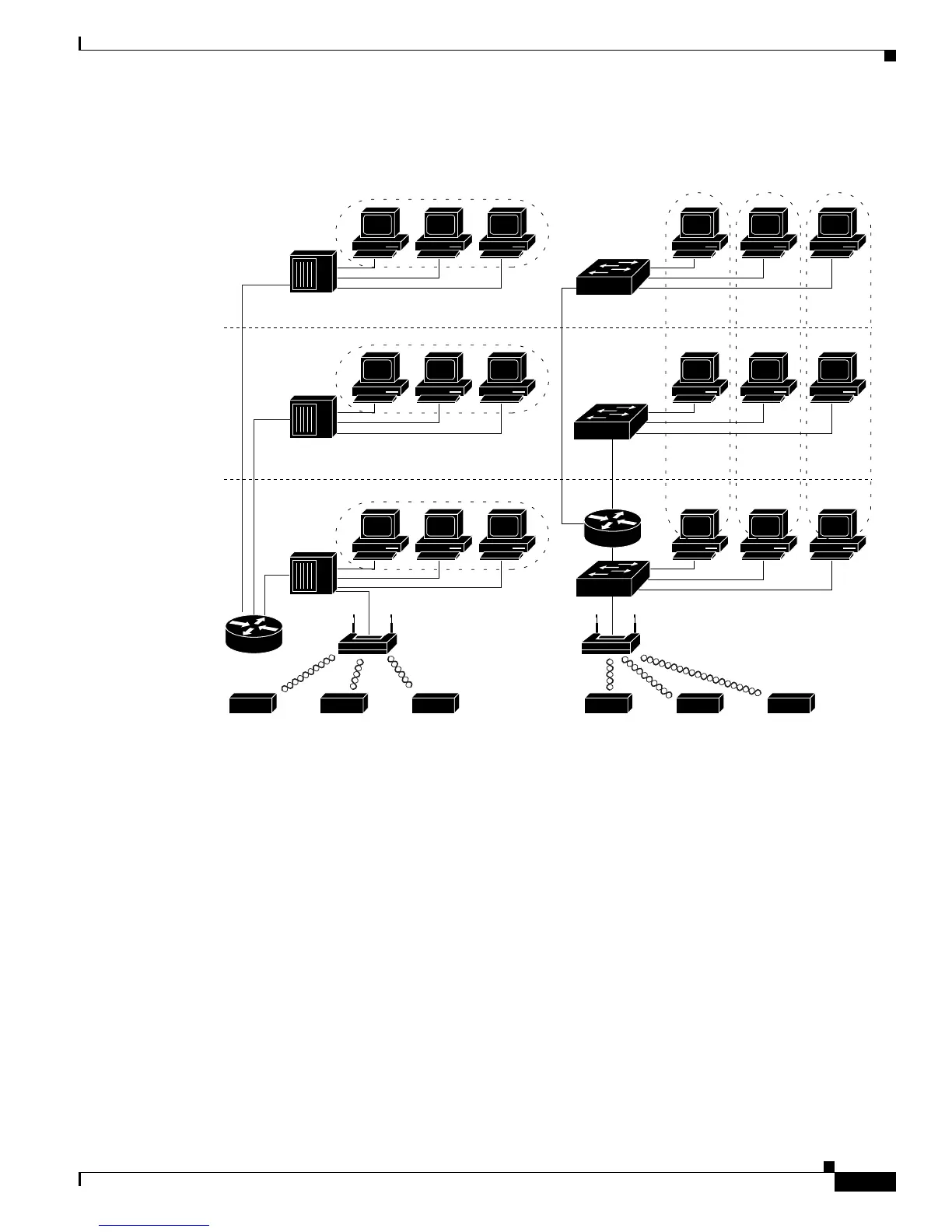

Figure 8-1 LAN and VLAN Segmentation with Wireless Devices
Related Documents
These documents provide more detailed information pertaining to VLAN design and configuration:
• Cisco IOS Switching Services Configuration Guide. Click this link to browse to this document:
http://www.cisco.com/univercd/cc/td/doc/product/software/ios122/122cgcr/fswtch_c/index.htm
• Cisco Internetwork Design Guide. Click this link to browse to this document:
http://www.cisco.com/univercd/cc/td/doc/cisintwk/idg4/index.htm
• Cisco Internetworking Technology Handbook. Click this link to browse to this document:
http://www.cisco.com/univercd/cc/td/doc/cisintwk/ito_doc/index.htm
• Cisco Internetworking Troubleshooting Guide. Click this link to browse to this document:
http://www.cisco.com/univercd/cc/td/doc/cisintwk/itg_v1/index.htm
Catalyst
VLAN switch
VLAN 1
VLAN Segmentation
Traditional LAN Segmentation
VLAN 2 VLAN 3
LAN 1
Shared hub
Shared hub
Shared
hub
Floor 3
Floor 2
Floor 1
Tr unk
port
SSID 1 = VLAN 1
SSID 2 = VLAN 2
SSID 3 = VLAN 3
LAN 2
LAN 3
52
Catalyst
VLAN switch
Catalyst
VLAN
switch
