8
Chapter 4: Setting up and Connecting the USB Network Adapter
Connecting the Adapter
Wireless-G USB Network Adapter
3. Windows will begin copying the files onto your PC.
4. The Setup Wizard will now prompt you to connect the Adapter to your PC’s USB port. Once you’ve connect,
click Next.
5. Windows 98SE and ME users will need to restart their PCs.
Connecting the Adapter
1. Connect one end of the included USB cable to the Adapter’s USB port.
2. Connect the other end of the cable to one of the USB ports on your computer.
3. The Power LED should light up when the Adapter is plugged in.
4. Raise the antenna. Make sure the antenna points straight up into the air, at a 90º angle from the Adapter. This
will ensure optimum wireless operating range and performance.

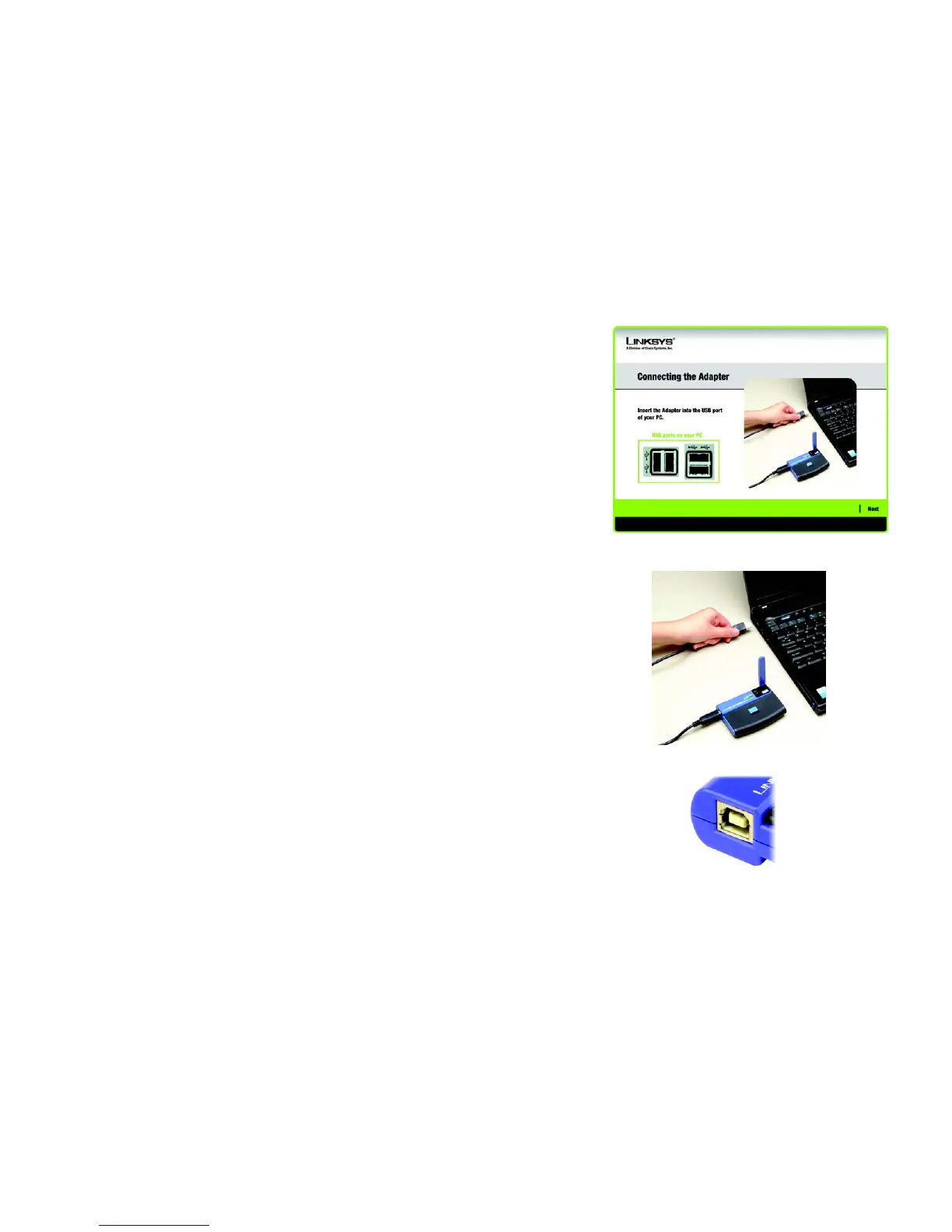

Figure 4-3: The Connecting the Adapter Screen
Figure 4-4: Connecting the Adapter
Figure 4-5: The Adapter’s USB Port
