Cisco NCS 5700 Series User Manual

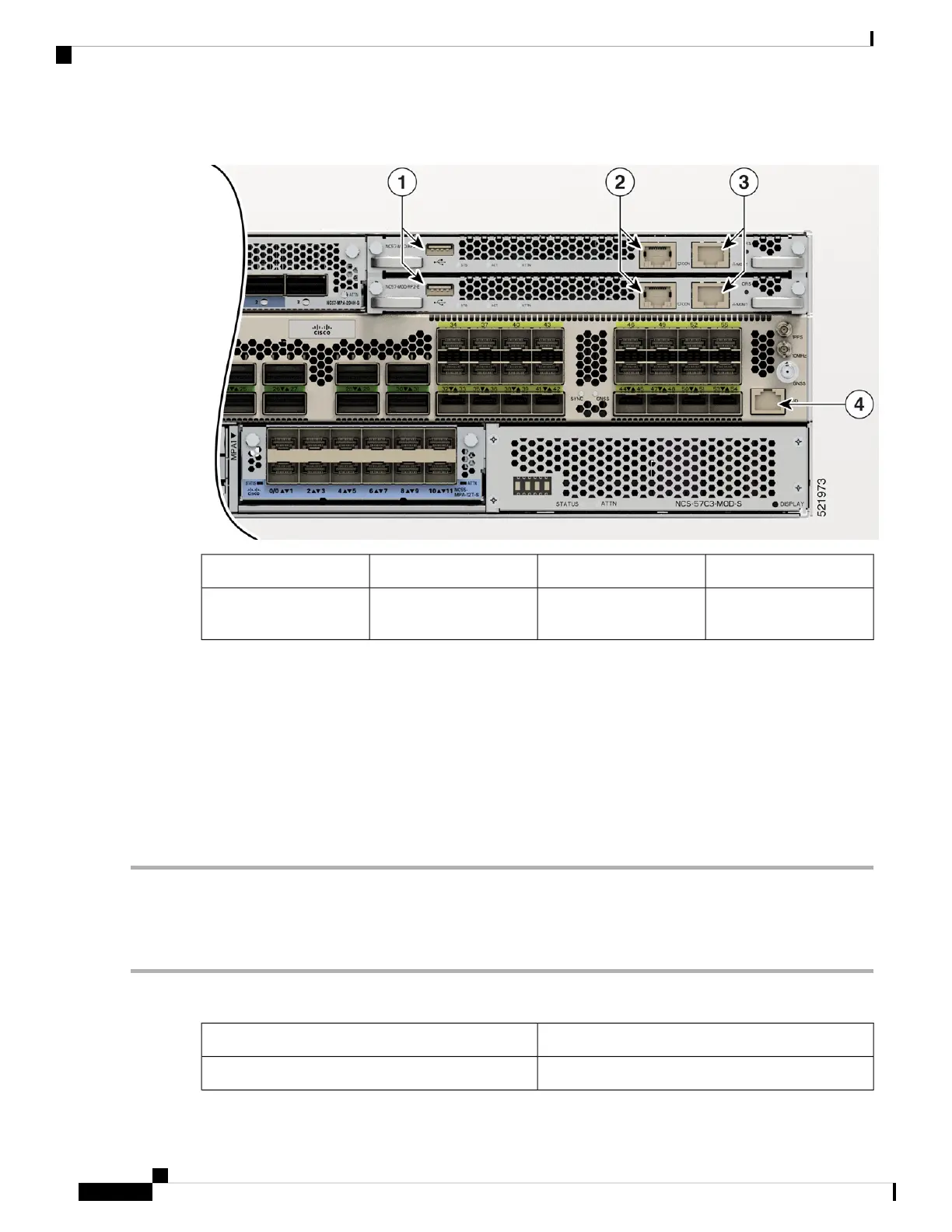

Figure 49: NCS-57C3-MOD Console, TOD, and Management Port Location
Console ports2USB ports1
Time of Day (ToD) port4Management Ethernet
ports
3
Follow this procedure to connect a data terminal to the console port.
Before you begin
• The router must be fully installed in its rack, connected to a power source, and grounded.
• The necessary cabling for the console, management, and network connections must be available.
• An RJ-45 rollover cable and DB9F/RJ-45 adapter.
• Network cabling should already be routed to the location of the installed router.
Step 1 Set your terminal to these operational values: 115200 bps, 8 data bits, no parity, 1 stop bits (115200 8N1).
Step 2 Attach the terminal end of the cable to the interface port on the data terminal.
Step 3 Attach the other end of the cable to the console port.
Table 12: RJ-45 Straight-through Cable Pin-outs
SignalRJ-45 Pin
—1
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
64
Connect Router to the Network
Connect to the Console Port
