Cisco NCS-57B1-6D24-SYS

QSFP port and
Active/Link LED
3STATUS LED1
ATTN LED4QSFP port and
Active/Link LED
2

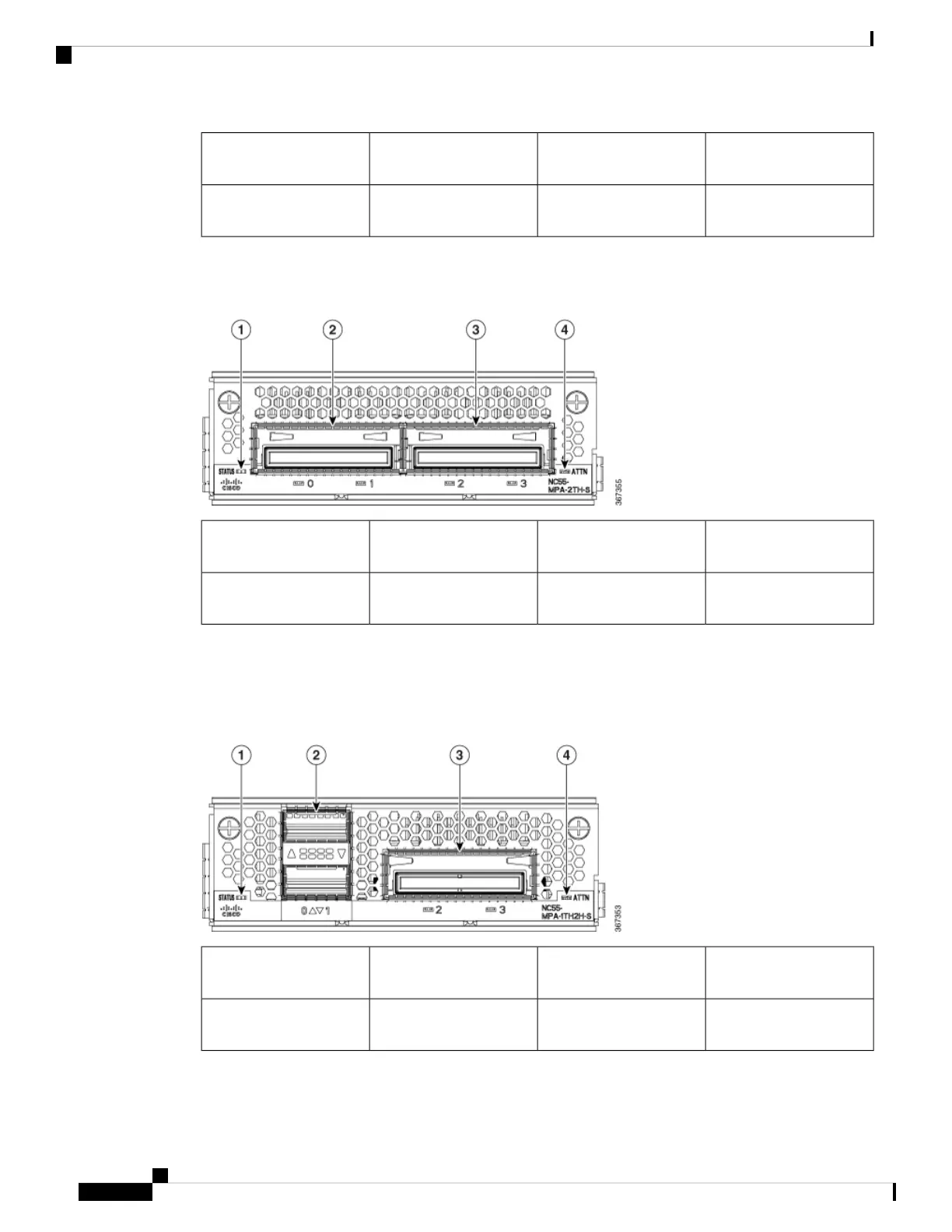

2-Port 100GE/200GE with CFP2-DCO
The 2-port 100GE/200GE MPA (NC55-MPA-2TH-S) provides 2 ports for CFP2-DCO transceivers.
CFP2-DCO port and
Active/Link LED
3STATUS LED1
ATTN LED4CFP2-DCO port and
Active/Link LED
2
1-port 100GE/200GE with CFP2-DCO + 2-Port 40GE or 100GE with QSFP+/QSFP28
The 1-port 100GE/200GE + 2-Port 40GE/100GE combination MPA (NC55-MPA-1TH2H-S) provides 1 port
for CFP2-DCO transceivers and 2 ports for 4x25GE (via cable breakout), QSFP+ (40Gbps) or QSFP28
(100Gbps) transceivers.
CFP2-DCO port and
Active/Link LED
3STATUS LED1
ATTN LED4QSFP port and
Active/Link LED
2
