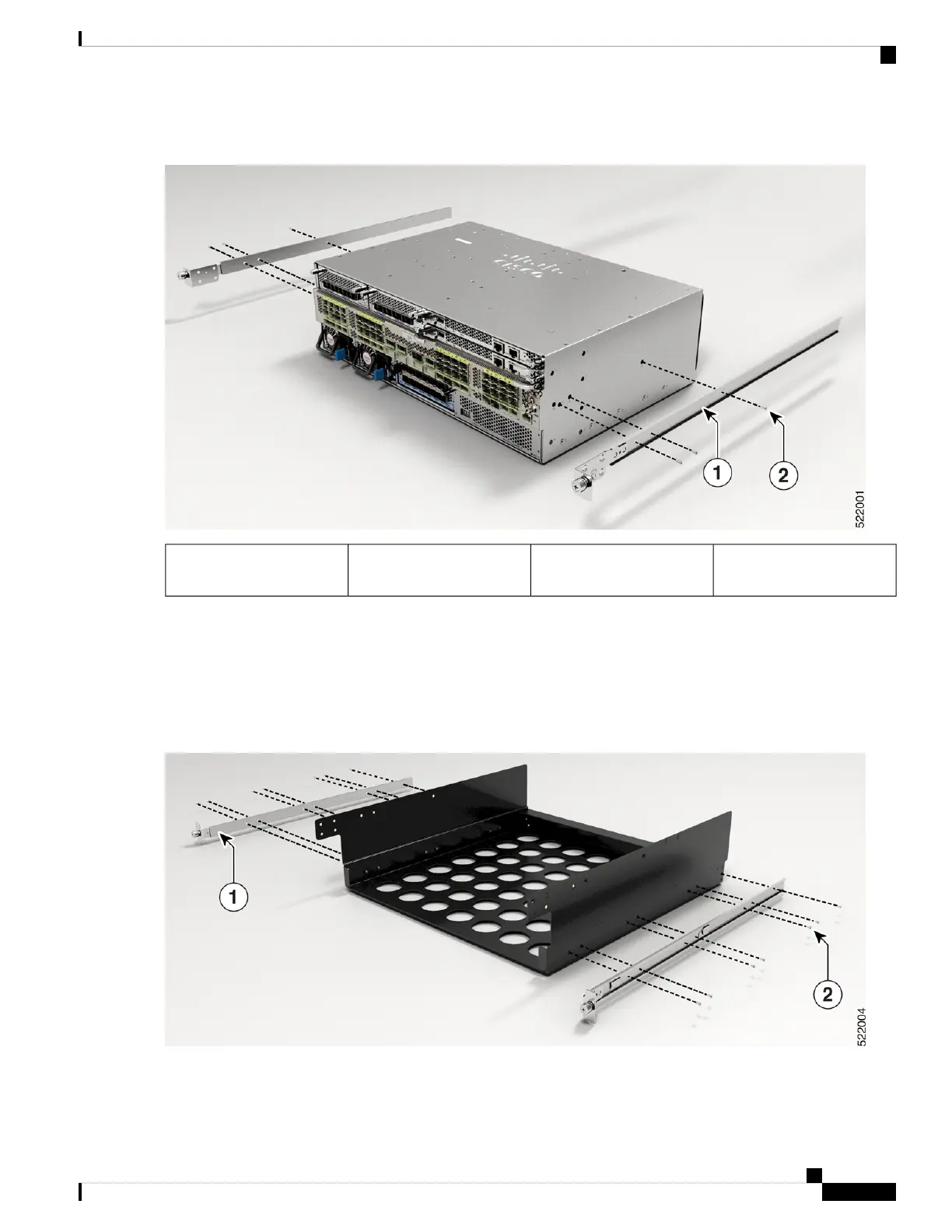

Figure 31: Install the Inner Slider Member to the Chassis
M4 x 10-mm Phillips pan
head screws.
2Inner slider member1
For NC55-2RU-ACC-SL2, attach the inner slider member to the sides of the tray:
a. Align the inner slider member with one side of the tray and use seven M4 x 8-mm flat head screws and tighten the
screws to 12 in-lbs (1.4 N-m).
b. Repeat this step to install the inner slider member to the other side of the tray.
Figure 32: Install the Inner Slider Member to the Tray
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
45
Install the Chassis
Rack Mount the NCS-57C3-MOD Chassis in a 4-Post Rack using Sliders
To Next Page
