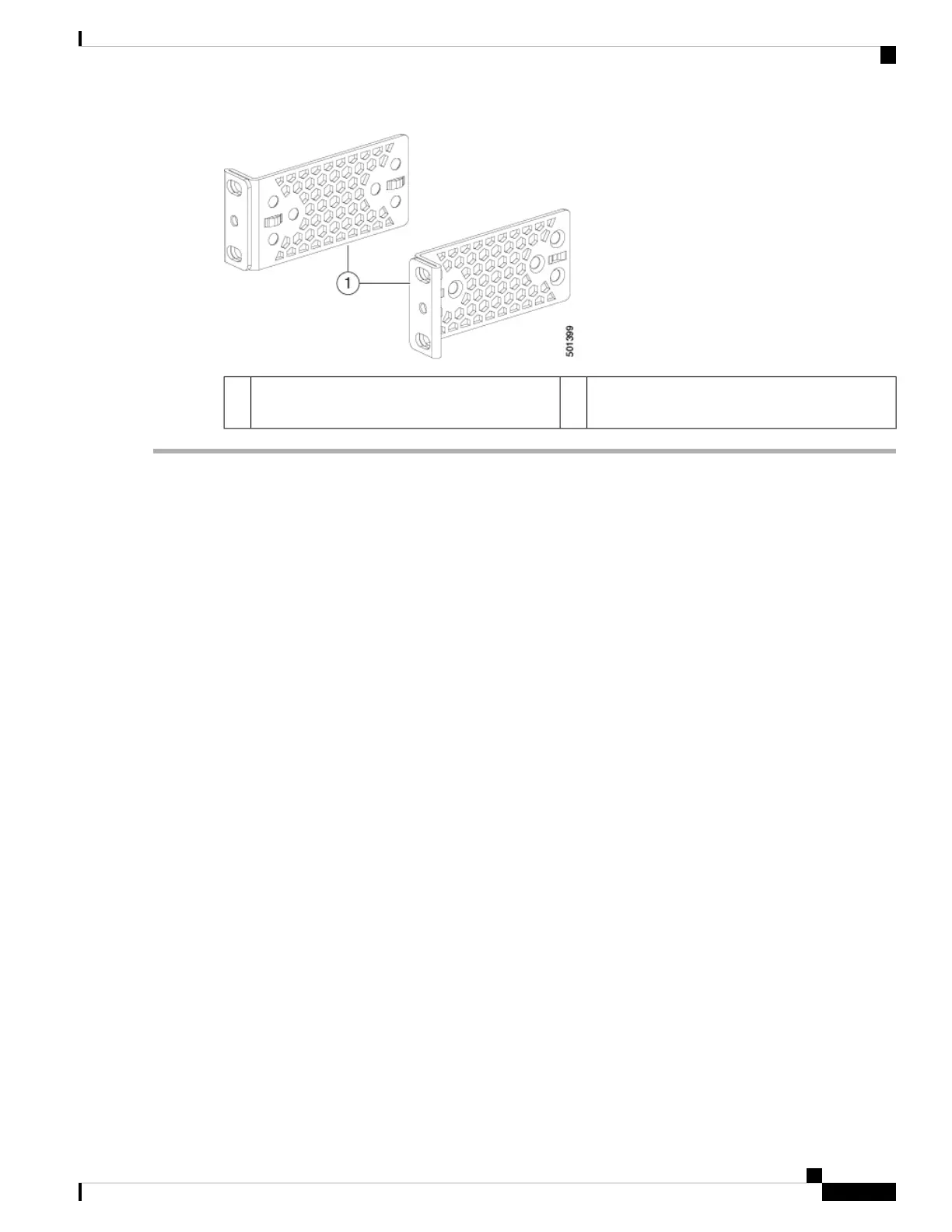

Standard mounting bracket for a 19-inch,
two-post rack
1
Step 1 Install the brackets to the switch.
a) Determine which end of the chassis is to be located in the cold aisle as follows:
• If the switch has port-side intake modules (fan modules with burgundy coloring), position the switch so that its
ports will be in the cold aisle.
• If the switch has port-side exhaust modules (fan modules with blue coloring), position the switch so that its fan
and power supply modules will be in the cold aisle.
b) Position the bracket so that four of its screw holes are aligned to the screw holes on the side of the chassis as shown
in the following figure.
Cisco Nexus 9348GC-FXP ACI Mode Hardware Installation Guide
19
Installing the Switch Chassis
Installing the Switch into a Two-post Rack
