Unpacking and Installing the Cisco ONS 15454 Four-Shelf and Zero-Shelf Bay Assembly
78-13271-05
Fuse and Alarm Panel Wiring

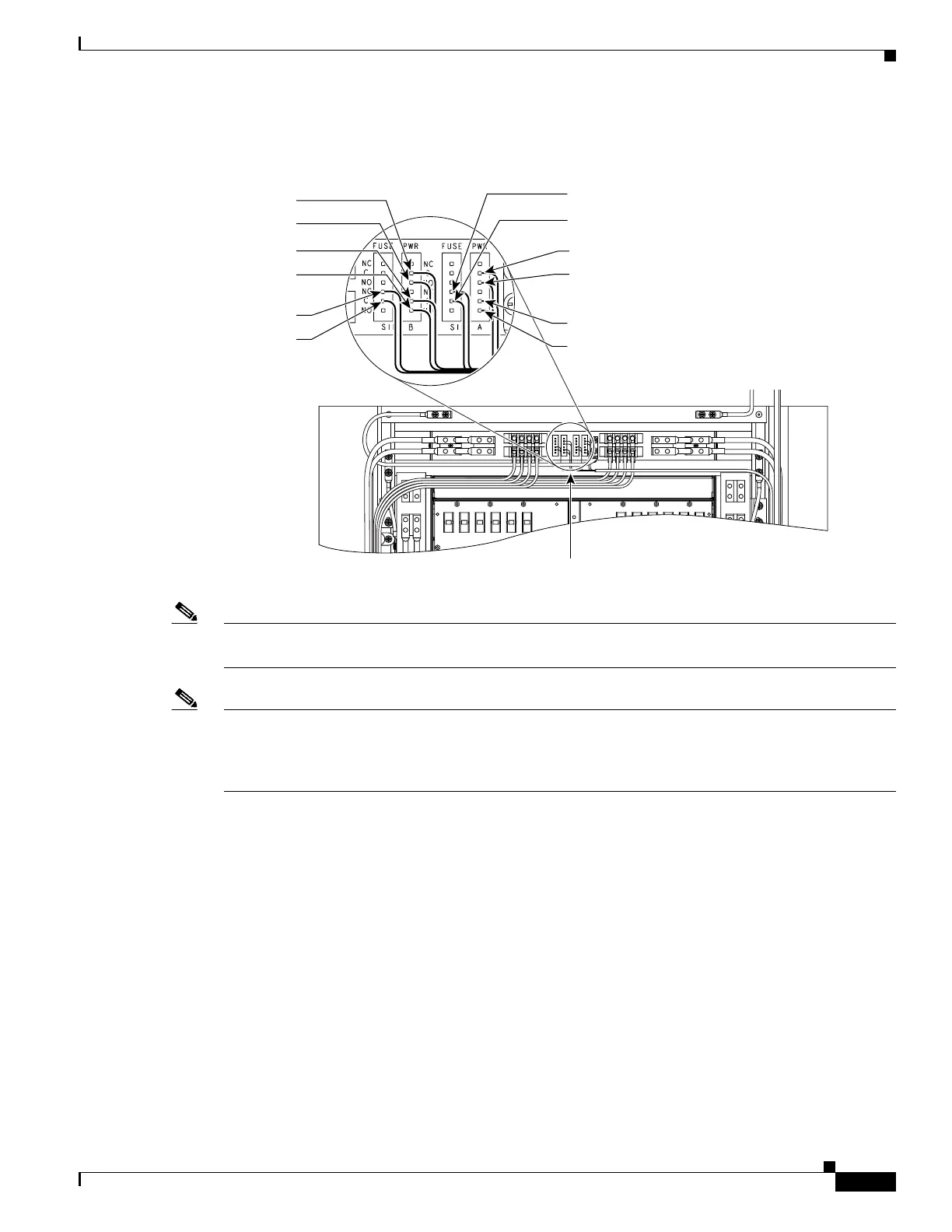

Figure 23 FAP and power close-up of alarming wire color
Note Because there are six alarms on the FAP, some alarms will be double-wrapped on one of the four
environmentals of the alarmed shelf.
Note The AIC-I requires a shelf assembly running Software Release 3.4.0 or later. The AIC-I uses wire-wrap
field pin assignments according to the layout in Figure 24. The shelf assembly may be an existing shelf
that has been upgraded to 3.4.0. In this case the backplane pin labeling will appear as indicated in
Figure 25. But you must use the pin assignments provided by the AIC-I as shown in Figure 24.
59173
Alarming
Wire color
BRN/WHT
ORN/WHT
WHT/ORN
WHT/BRN
Wire color
GRN/WHT
WHT/GRN
WHT/BLU
BLU/WHT
WHT/SLT
SLT/WHT
BLU/RED
RED/BLU
