Chapter 3 Connection Requirements
Ordering Cables
3-4
Cisco Redundant Power System Hardware Installation Guide
OL-3654-01

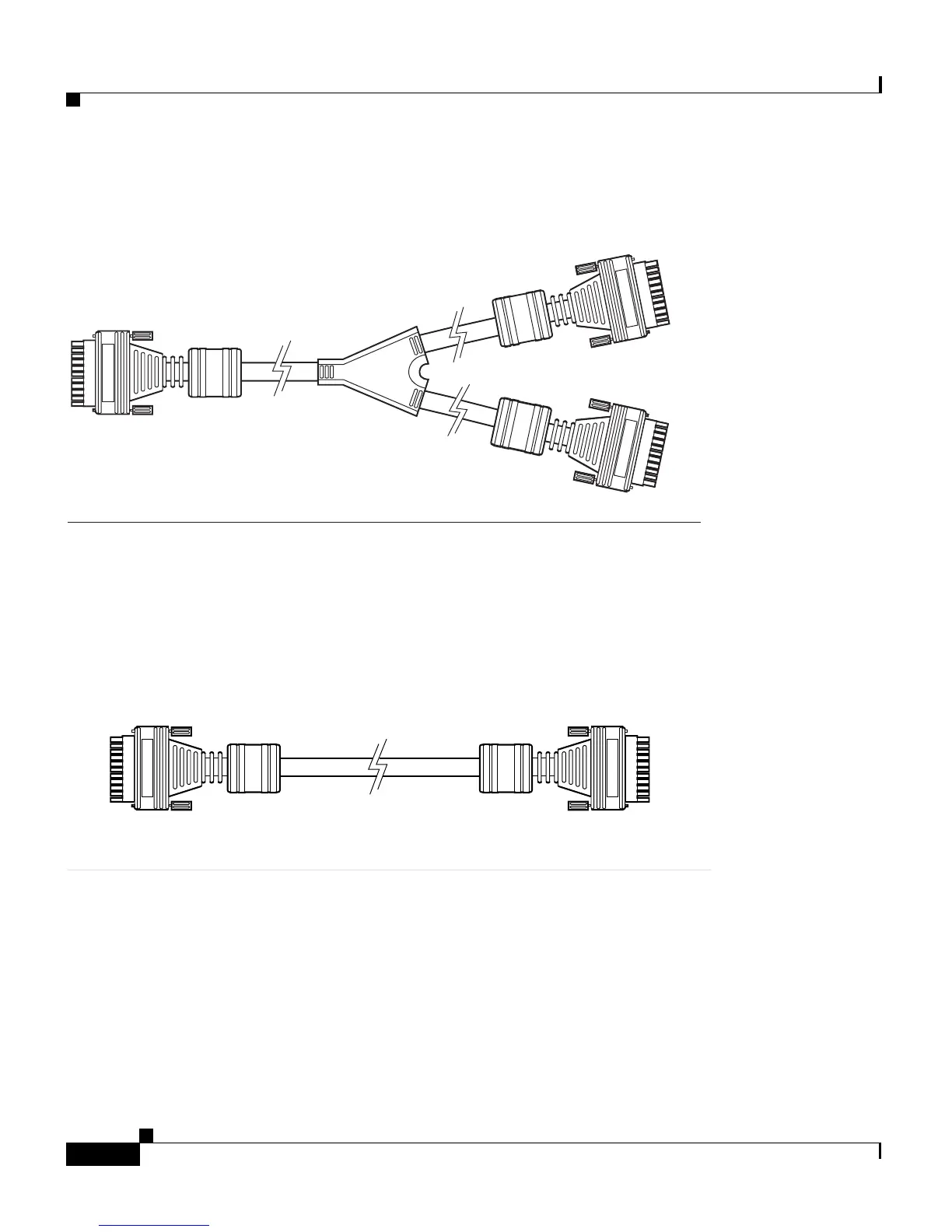

Figure 3-1 Two-to-One Y-Shaped Cable
Figure 3-2 One-to-One Cable
Load unit
8 or 18 pins
Cisco RPS side
22 pins
CAB-RPSY-2218
CAB-RPSY-2208 Cisco 2500 series routers and Cisco MC3810 multiservice concentrators
Cisco 2600 series routers, Cisco 3620, Cisco 3640, and Cisco 3725
routers, and Cisco 4000 series routers
Product number External device
11538
Load unit
8 or 18 pins
RPS side
22 pins
11539
CAB-RPS-2218
CAB-RPS-2208 Cisco 2500 series routers and Cisco MC3810 multiservice concentrator
All others
Product number External device
