Chapter 5 Troubleshooting the Cisco RPS
Reading the LEDs
5-2
Cisco Redundant Power System Hardware Installation Guide
OL-3654-01
Note Some external devices also have LEDs that show the operating condition of the
Cisco RPS. Refer to the installation guide that accompanied the device for
detailed information about the LEDs.
Table 5-1 lists symptoms indicating a problem, along with possible causes and
suggested corrective actions.

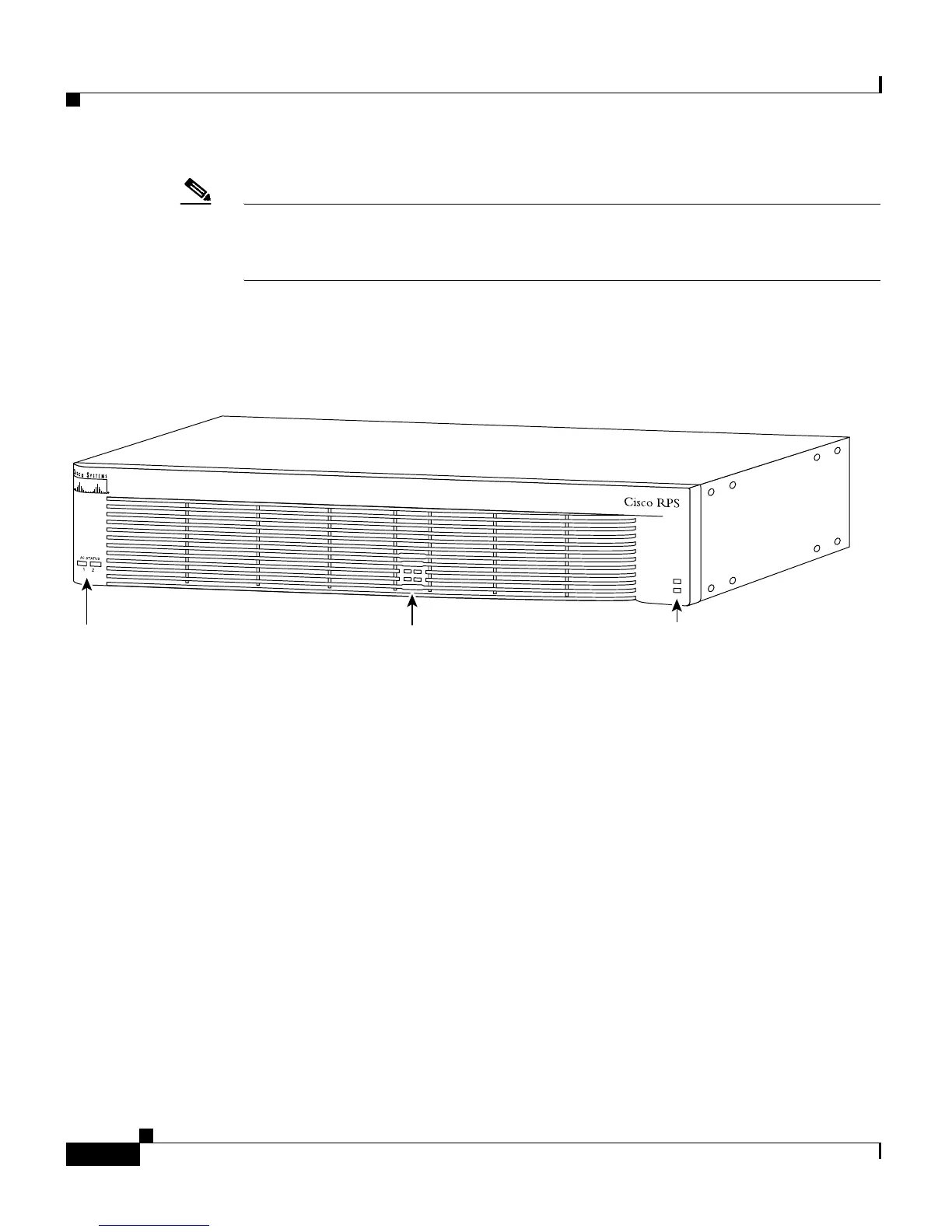

Figure 5-1 Cisco RPS LEDs
DC STATUS
12
3
4
H9629
AC status LEDs
DC status LEDs
Fan and temp LEDs
FAN
TE
M
P
