Chapter 4 Connecting the Cisco RPS
Connecting Hubs
4-4
Cisco Redundant Power System Hardware Installation Guide
OL-3654-01

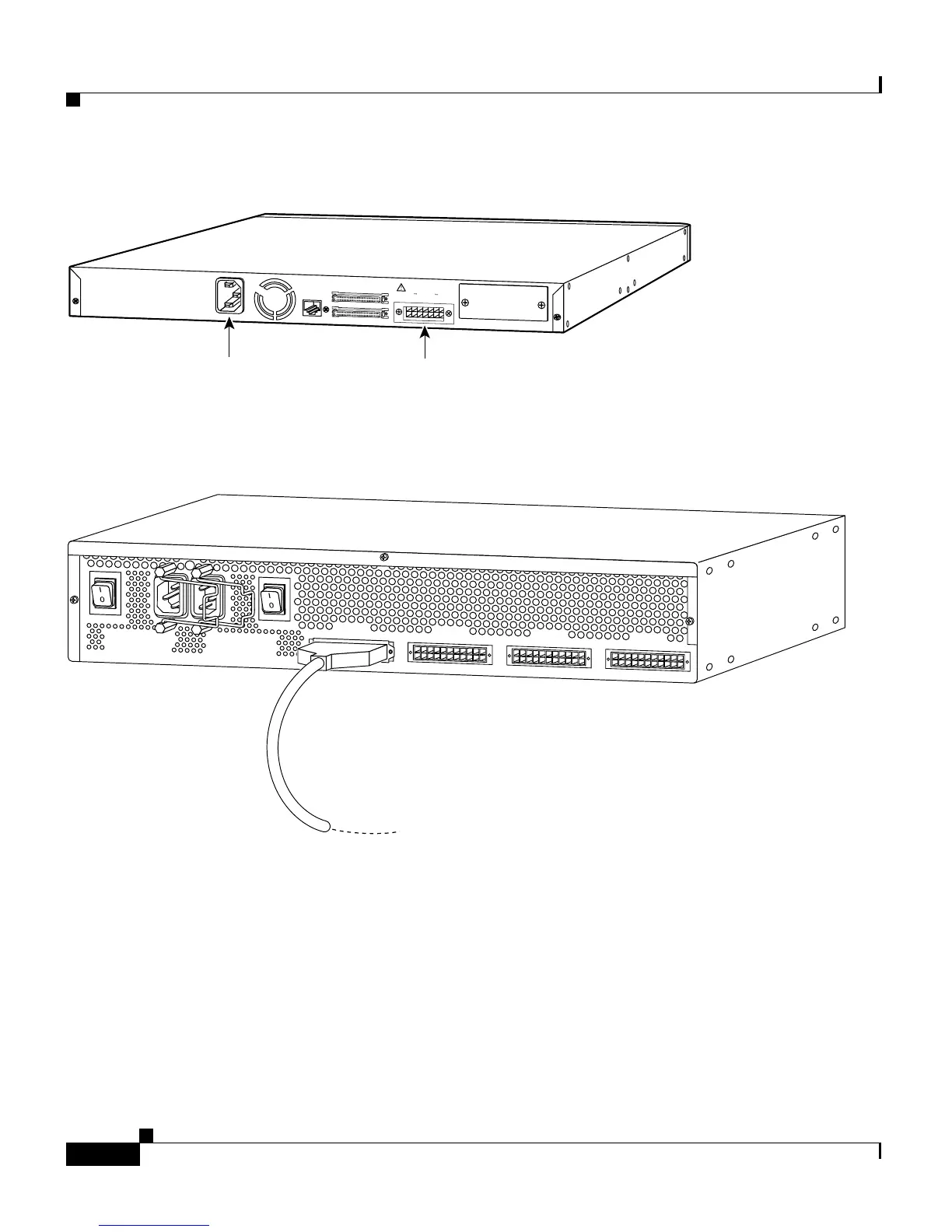

Figure 4-2 FastHub 400 Rear Panel
Figure 4-3 Connecting the One-to-One Cable to the Cisco RPS
Step 4
On the Cisco RPS rear panel, connect an AC power cable to either or both of the
power connectors. Use the cable locks on the Cisco RPS to lock the cables in
place. (See Figure 4-4.)
