Chapter 5
Setting Up and Configuring the Router
23
4-Port Gigabit Security Router with VPN
L2TP PassThrough Layer 2 Tunneling Protocol is the
method used to enable Point-to-Point sessions via the
Internet on the Layer 2 level. L2TP Passthrough is enabled
by default. To disable L2TP Passthrough, select Disabled.
Click Save Settings to save your settings. Click Cancel
Changes to cancel any changes you have entered.
QoS
QoS (Quality of Service) allows you to perform Bandwidth
Management, by either Rate Control or Priority. You can
also configure QoS Trust Mode and the DSCP settings.

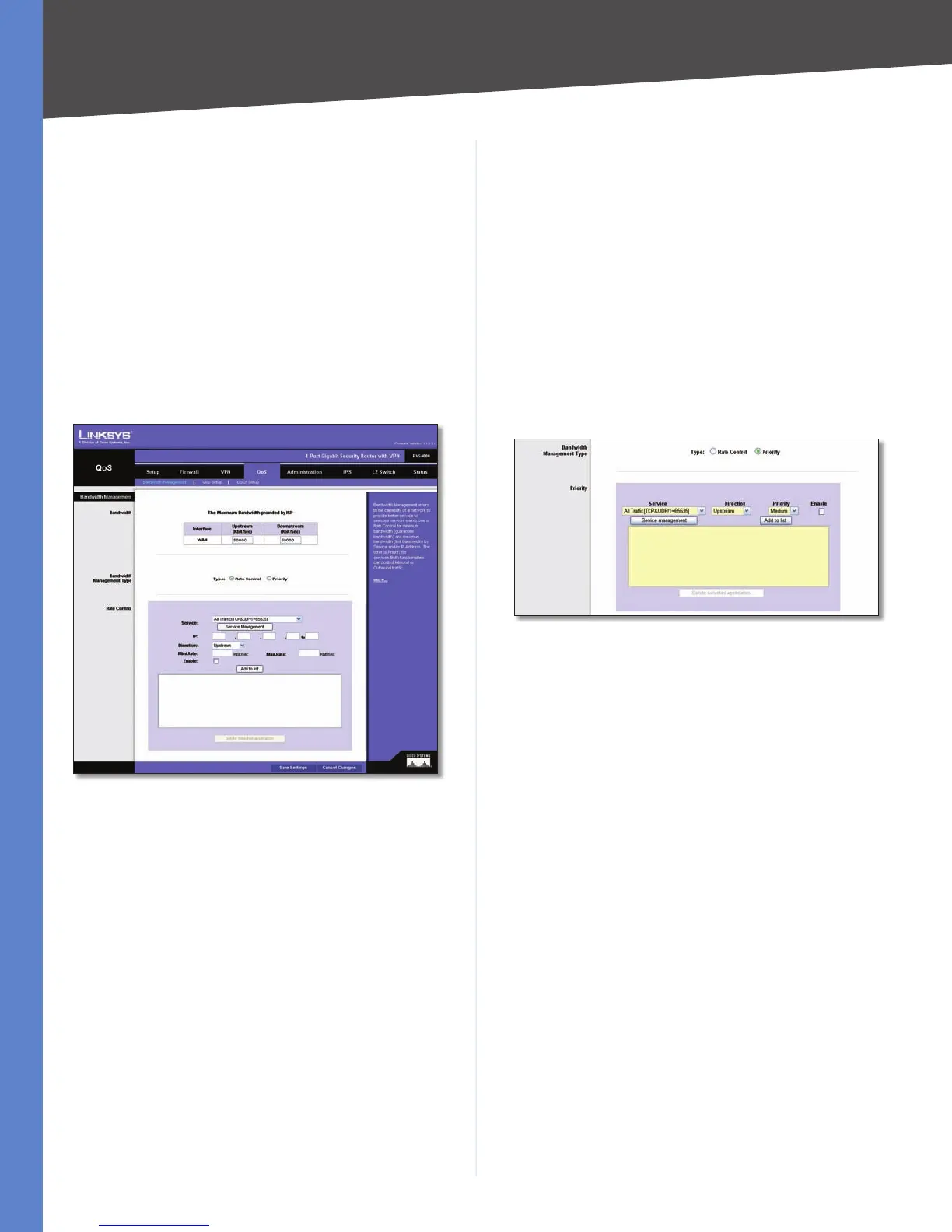

QoS > Bandwidth Management
QoS > Bandwidth Management - Rate Control
Bandwidth
This section lets you specify the maximum bandwidth
provided by the ISP on the WAN interface, for both the
upstream and downstream directions.
Bandwidth Management Type
Type The desired type of bandwidth management, either
Rate Control (default) or Priority. Depending on your
selection, the lower portion of the screen displays either
the Rate Control section or the Priority section.
Rate Control
Service Select the service from the drop-down menu.
If it does not contain the service you need, click Service
Management to add the service.
IP Enter the IP address or IP range you need to control. The
default is zero which includes all internal IP addresses.
Direction Select Upstream for outbound traffic or
Downstream for inbound traffic.
Mini. Rate Enter the minimum rate for the guaranteed
bandwidth.
Max. Rate Enter the maximum rate for the guaranteed
bandwidth.
Enable Check this box to enable this Rate Control Rule.
Add to list After a rule is set up, click this button to add it
to the list. The list can contain a maximum of 15 entries.
Delete selected application Click this button to delete a
rule from the list.
Priority
QoS > Bandwidth Management - Priority
Service Select the service from the drop-down menu.
If it does not contain the service you need, click Service
Management to add the service.
Direction Select Upstream for outbound traffic or
Downstream for inbound traffic from the drop-down
menu.
Priority Select High, Medium, Normal, or Low priority
for the service. The default is Medium.
Enable Check this box to enable this Priority Rule.
Add to list After a rule is set up, click this button to add it
to the list. The list can contain a maximum of 15 entries.
Delete selected application Click this button to delete a
rule from the list.
Click Save Settings to save your settings. Click Cancel
Changes to cancel any changes you have entered.
QoS > QoS Setup
The QoS Setup screen allows users to configure QoS Trust
Mode for each LAN port.
