Chapter 5
Setting Up and Configuring the Router
20
4-Port Gigabit Security Router with VPN
Tunnel(s) Defined Displays the number of tunnels
currently defined. This number will be greater than the
Tunnels Enabled field if any defined tunnels have been
disabled.
VPN Clients Status
No. Displays the user number from 1 to 5.
Username. Displays the username of the VPN Client.
Status Displays the connection status of the VPN Client.
Start Time Displays the start time of the most recent VPN
session for the specified VPN Client.
End Time Displays the end time of a VPN session if the
VPN Client has disconnected.
Duration Displays the total connection time of the latest
VPN session.
Disconnect Check the Disconnect checkbox at the end of
each row in the VPN Clients Table and click the Disconnect
button to disconnect a VPN Client session.

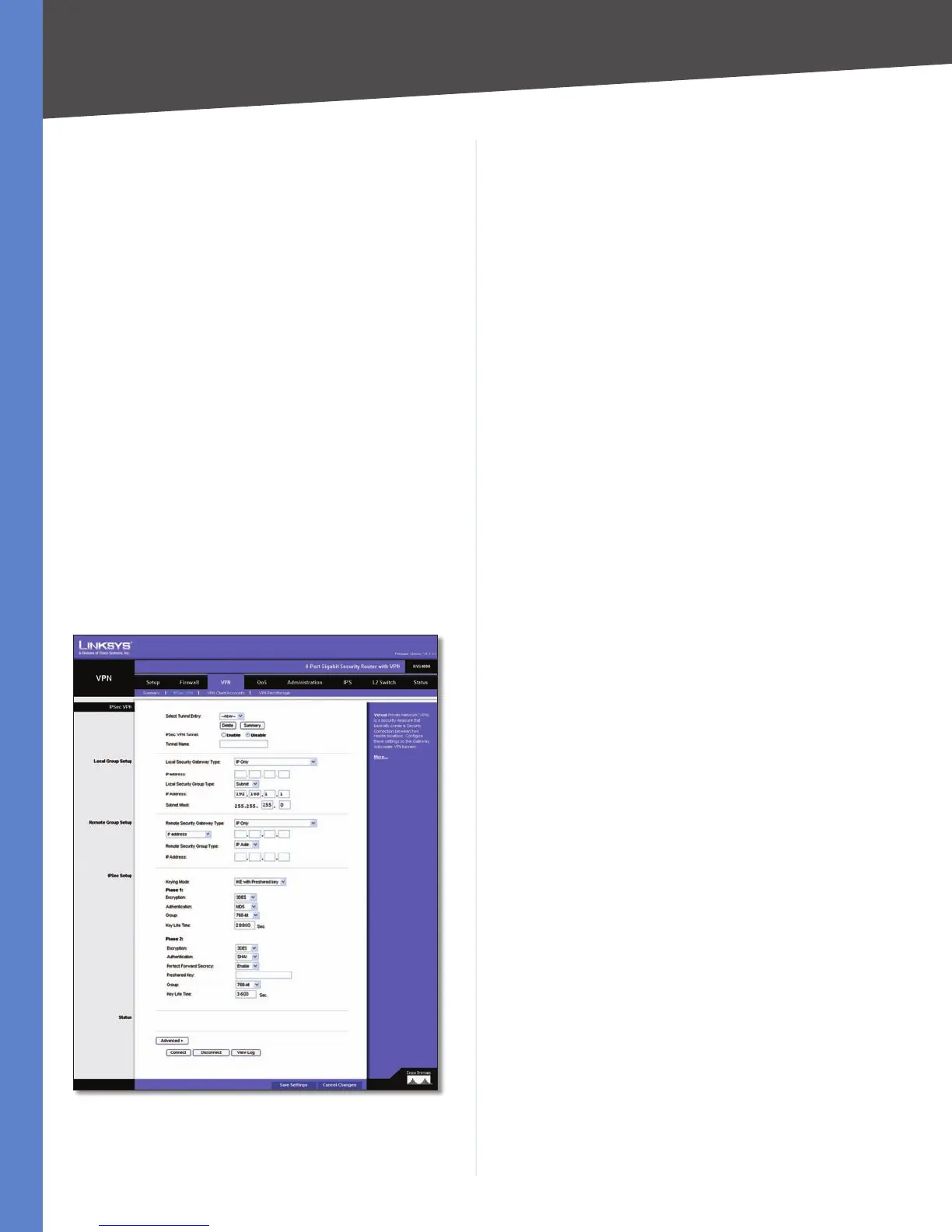

VPN > IPSec VPN
The VPN > IPSec VPN screen is used to create and configure
a Virtual Private Network (VPN) tunnel.
VPN > IPSec VPN
Select Tunnel Entry To create a new tunnel, select new.
To configure an existing tunnel, select it from the drop-
down menu.
Delete Click this button to delete all settings for the
selected tunnel.
Summary Clicking this button shows the settings and
status of all enabled tunnels.
IPSec VPN Tunnel Check the Enable option to enable
this tunnel.
Tunnel Name Enter a name for this tunnel, such as
“Anaheim Office”.
Local Group Setup
Local Security Gateway Type This has two settings, IP
Only and IP + Domain Name (FQDN) Authentication.
IP Only • If this is selected, the RVS4000’s WAN IP
address automatically appears in the IP Address field.
IP + Domain Name (FQDN) Authentication • This is
the same as IP Only, but includes a domain name for
greater security. Enter an arbitrary domain name in
the Domain Name field. The Router’s WAN IP address
automatically appears in the IP Address field.
Local Security Group Type Select the local LAN user(s)
behind the router that can use this VPN tunnel. This may
be a single IP address or Sub-network. Notice that the
Local Security Group Type must match the other router’s
Remote Security Group Type.
IP Address Enter the IP address on the local network.
Subnet Mask If the Local Security Group Type is set to
Subnet, enter the mask to determine the IP addresses on
the local network.
Remote Group Setup
Remote Security Gateway Type Select either IP Only or
IP + Domain Name (FQDN) Authentication. The setting
should match the Local Security Gateway Type for the VPN
device at the other end of the tunnel.
IP Only • Select this to specify the remote device that
will have access to the tunnel. Then either select IP
Address from the drop-down menu and enter the
remote gateway’s WAN IP address in the IP Address
field, or select IP by DNS Resolved from the drop-
down menu and enter the remote gateway’s domain
name in the Domain Name field.
IP + Domain Name (FQDN) Authentication • This is
the same as IP Only but includes a domain name for
greater security. Enter an arbitrary domain name in the
Domain Name field. Then select either IP Address or IP
by DNS Resolved from the drop-down menu, and fill
in the IP Address field or Domain Name field.
