Cisco RVS4000 - Gigabit Security Router User Manual

43
Using Linksys QuickVPN for Windows 2000, XP, or Vista
4-Port Gigabit Security Router with VPN
Appendix B

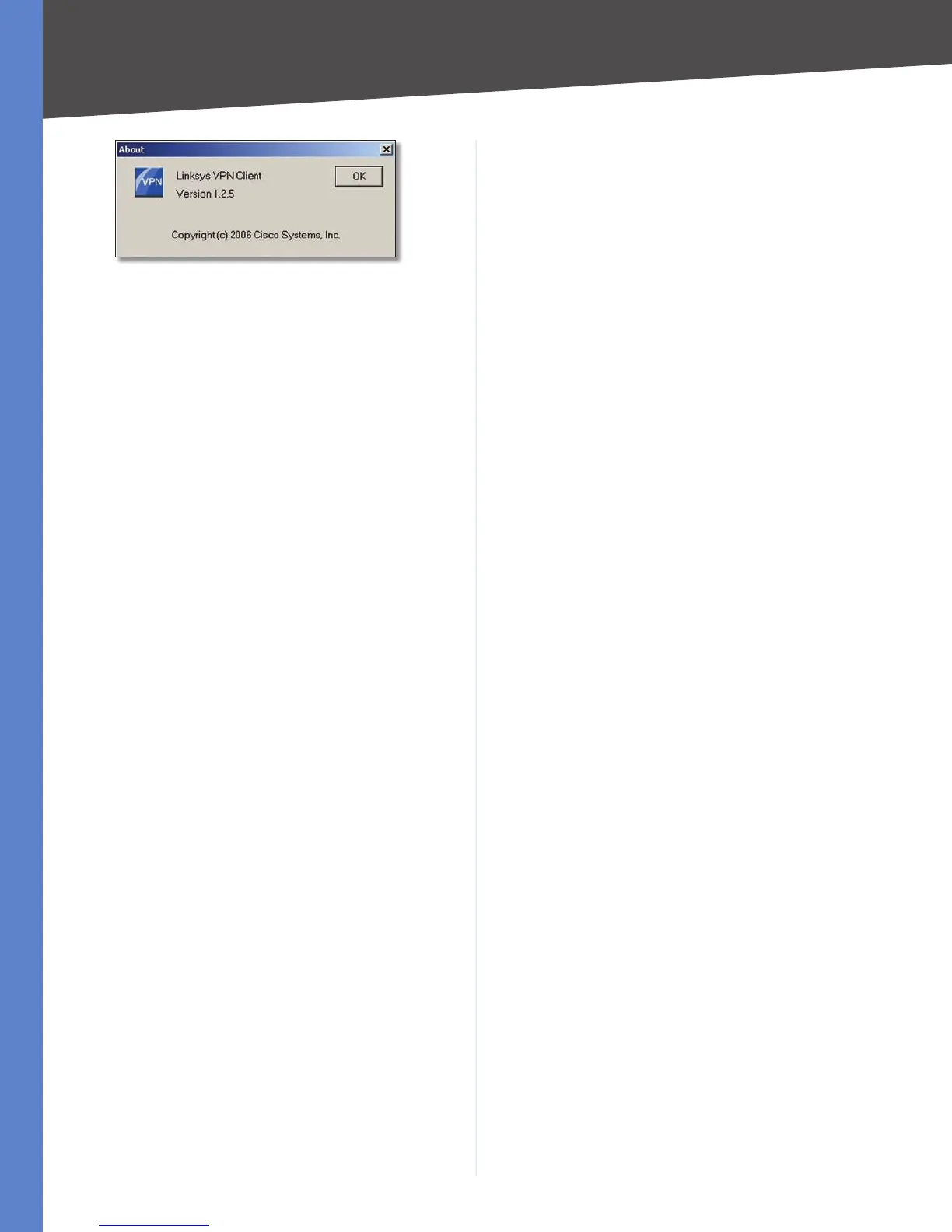

QuickVPN Client Version Number
Distributing Certificates to QuickVPN Users
The following explains how to export a certificate from
the RVS4000 for distribution to QuickVPN users, as well as
how to install the certificate on the QuickVPN users’ PCs.
Generate the Certificate as follows:1.
Log on to the Web-based Utility.a.
Select b. VPN, then VPN Client Accounts.
Click c. Generate to generate a new certificate.
Click d. Export for Client and save the certificate as
a .PEM file.
Distribute the certificate to all QuickVPN users.2.
Each QuickVPN user must then install the certificate as 3.
follows:
Save the certificate into the directory where a.
the QuickVPN Client is installed. For example:
C:\Program Files\Linksys\QuickVPN Client\
Launch the QuickVPN Client and specify the User b.
Name, Password, and Server Address (IP address or
domain name).
Click c. Connect.
For more information on certificate management, go to
section “VPN > VPN Client Accounts“ in “Chapter 5: Setting
Up and Configuring the Router”.

Cisco RVS4000 - Gigabit Security Router Specifications

General

WAN Ports	1 x 10/100/1000 Mbps
LAN Ports	4 x 10/100/1000 Mbps
VPN Support	IPSec, PPTP
Wireless	No
QoS	Yes
Power Supply	12V DC, 1.5A
Humidity	10% to 85% non-condensing
Firewall	SPI Firewall
VPN Throughput	30 Mbps
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-4°F to 158°F (-20°C to 70°C)
Management	Web-based
