Chapter 9 Removal and Replacement Procedures
Removing and Replacing Shared Port Adapters
SPA Installation and Removal
Warning
During this procedure, wear grounding wrist straps to avoid ESD damage to the card. Do not directly
touch the backplane with your hand or any metal tool, or you could shock yourself. Statement 94
SPAs can be inserted or removed independently from the SIP. Removal of a SIP with installed SPAs is
also supported.
Figure 9-17
illustrates how to install and remove a SPA in the SCE8000-SIP.

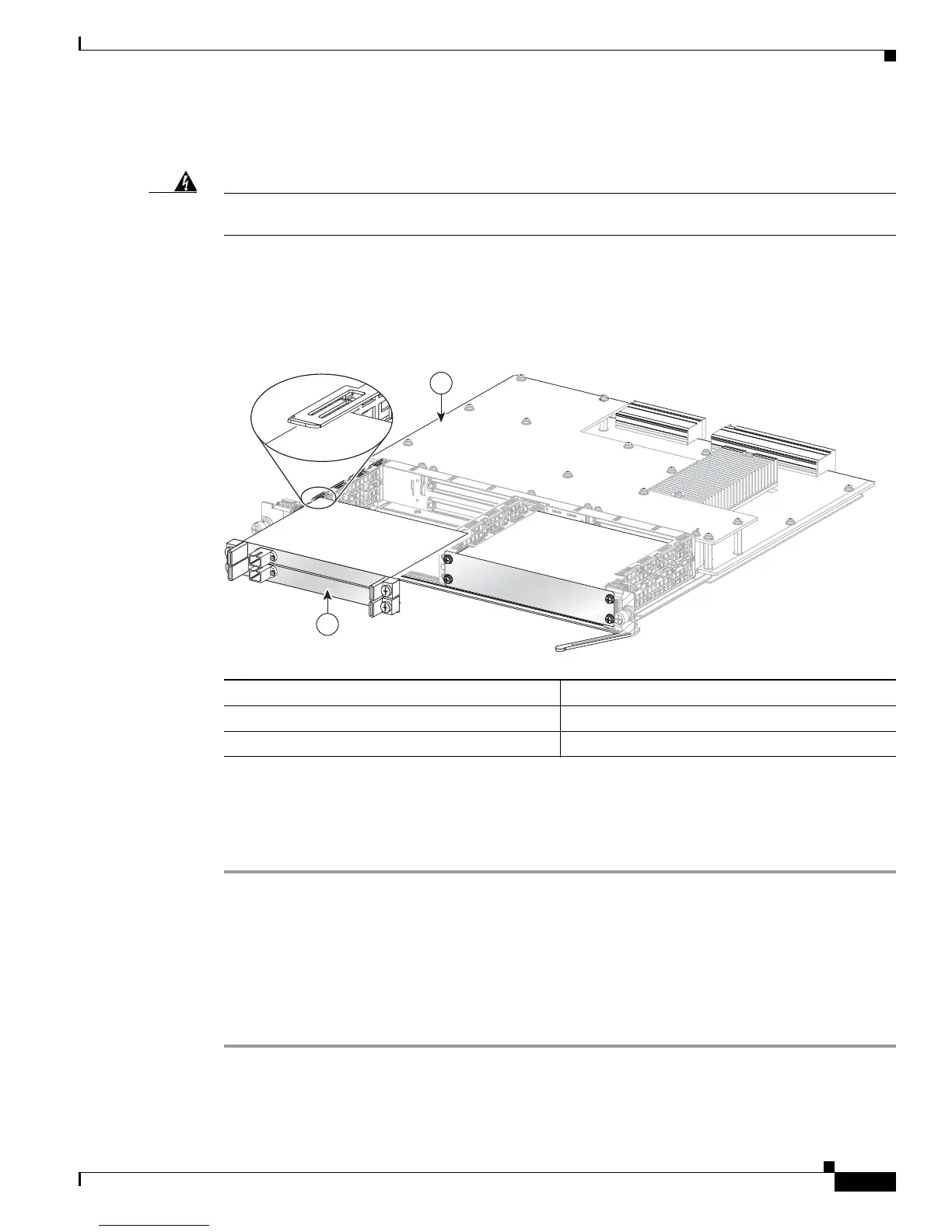

Figure 9-17 SPA Installation and Removal
Installing a SPA in a SIP
To install a SPA in a SIP, refer to Figure 9-17 and do the following:
Step 1 At the SCE# prompt, type reload shutdown and press Enter to power down the Cisco SCE8000
platform before installing or removing any module.
Step 2 To insert the SPA in the SIP, locate the guide rails inside the SIP that hold the SPA in place. They are at
the top left and top right of the SPA slot and are recessed about an inch, as shown in Figure 9-17.
Step 3 Carefully slide the SPA all the way in the SIP until the SPA is firmly seated in the SPA interface
connector. When fully seated, the SPA might be slightly behind the SIP faceplate.
Step 4 After the SPA is properly seated, fasten the SPA in place with the captive installation screws.
This number... Indicates this component
1 SCE8000-SIP
2 1X10GBE SPA module
270988
S
TATU
S
2
0
SPA
INTERFACE
PROCESSOR
7600-SIP-400
S
P
A-
1
X
1
0G
E
-
L
-
V
2
S
P
A-1
X
1
0G
E
-
L-V
2
S
TA
T
U
S
ST
A
T
US
1
2
