Chapter 2 Introduction to the Cisco SCE8000 Platform
The Cisco SCE8000 Optical Bypass
Optical Bypass Module (OPB-SCE8K)
There are two types of optical bypass modules to support different optic types:
• OPB-SCE8K-SM supports Single-Mode optics and should be used with SCE8000 equipped with
Single-Mode optics.
• OPB-SCE8K-MM supports Multi-Mode optics and should be used with SCE8000 equipped with
Multi-Mode optics.
The optical bypass module is installed either internally, in slot #4 of the Cisco SCE8000 chassis or in an
external mounting panel in the rack.
Up to two optical bypass modules can be mounted internally, supporting inline insertion into two links.
Up to four optical bypass modules can be mounted using an external mount panel
(OPB-SCE8K-EXT-PNL). A single panel can serve two SCE8000 platforms, each cutting two links or
up to four SCE8000 platforms, each cutting a single link.

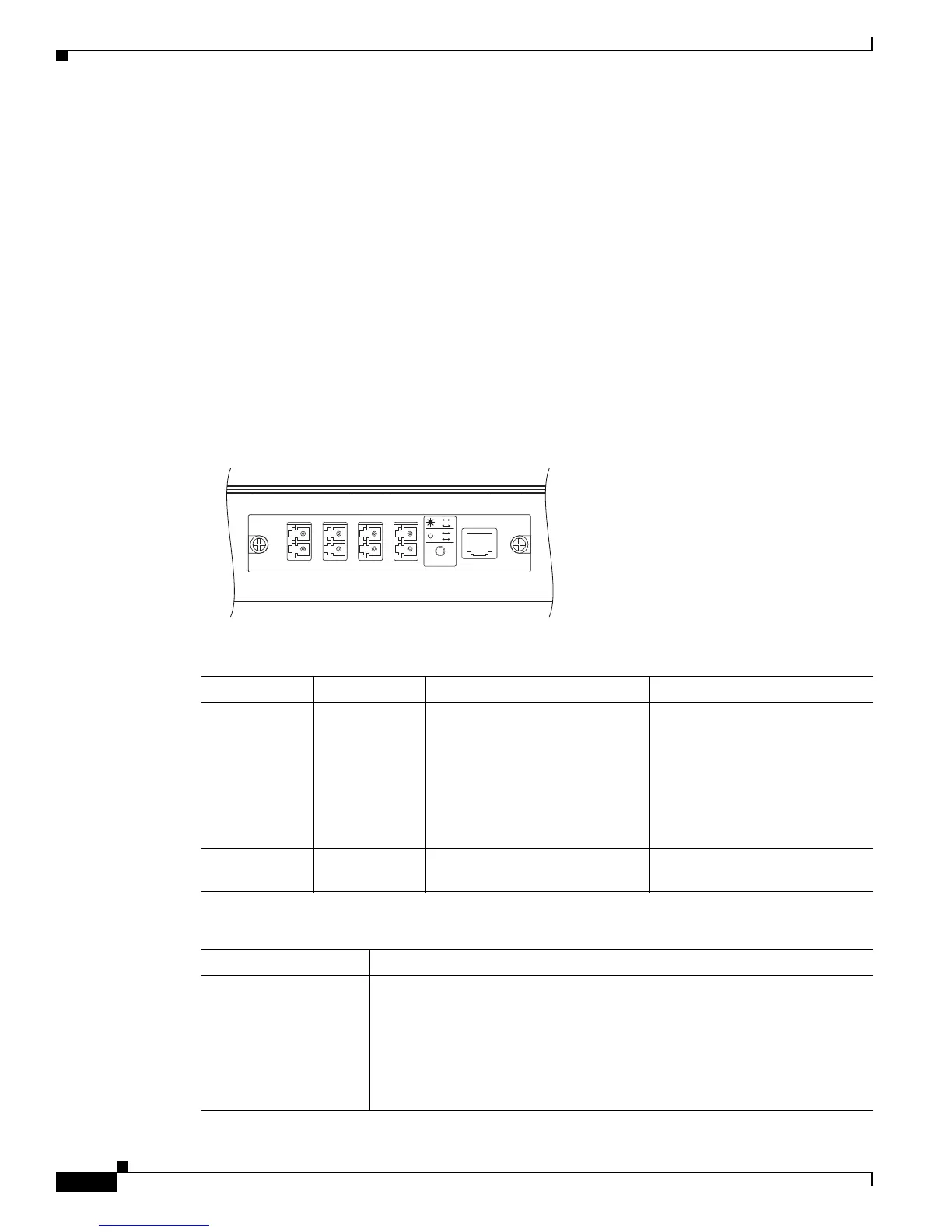

Figure 2-8 Optical Bypass Module
Table 2-8 Optical Bypass Module Ports
Port Quantity Description Connect This Port To…
10 GBE Line
port
4 10GBE ports A through D
Duplex LC, panel mount adaptor
for LC/UPC connectors
SPA interfaces on the Cisco
SCE8000.
Refer to Cabling the 10GBE
Line Interface Ports: Using the
External Optical Bypass
Module, page 6-11 for further
information.
CTRL 1 RJ-11 port RJ-11 Optical Bypass port on the
SCE8000-SCM-E
Table 2-9 Optical Bypass Module LEDs
LEDs Description
Status The Status LED indicates the operational status of the optical bypass
module, as follows:
• Green — Bypass module has been de-activated (traffic flows through the
Cisco SCE8000 platform)
• Off — Bypass module is active (traffic does not flow through the Cisco
SCE8000 platform)
TX
RX
A
TX
RX
B
TX
RX
C
TX
RX
D
A
B
A
C
C
D
B
D
STATUS
CTRL
OPB—SCE8K—MM
242235
