6-12
Cisco SCE8000 Installation and Configuration Guide, Rel 3.1.7
OL-16478-03
Chapter 6 Cabling the Line Ports and Completing the Installation
Cabling the 10GBE Line Interface Ports
Step 1 Take the appropriate fiber optic cable (see Fiber Specifications, page 6-10) and plug it into the
appropriate port (A or B) on the external bypass module.
Step 2 Using a cable with LC connectors on both ends, plug one end into the appropriate port (C or D) on the
external bypass module and the other end into the appropriate 10GBE interface in slot #3 of the SCE8000
chassis.
Step 3 Using the control cable provided, which has RJ11 connectors on both ends, plug one end into the CNTRL
interface on the external bypass module (see Figure 6-3) and plug the other end into the External Bypass
interface on the SCE8000-SCM-E in slot #1 of the SCE8000 chassis (see item #1 in Figure 6-4 below).
If using only one external bypass module, use External Bypass port #1. If using two external bypass
modules, use both External Bypass ports on the SCE8000-SCM-E in slot #1.
Step 4 Complete the installation and powering up of the SCE8000.
By its nature, the optic bypass module will not connect the link to the SCE8000-SIP module until the
entire SCE8000 system is fully functional. It is necessary to bring the SCE8000 to fully operational,
non-bypassed status, in order to confirm correct functioning of the link through the optic bypass module
to the SCE8000-SIP module.
Step 5 Verify link connectivity by checking that the link LED on the 10GBE interface is green, or by using the
SCE8000 command line.

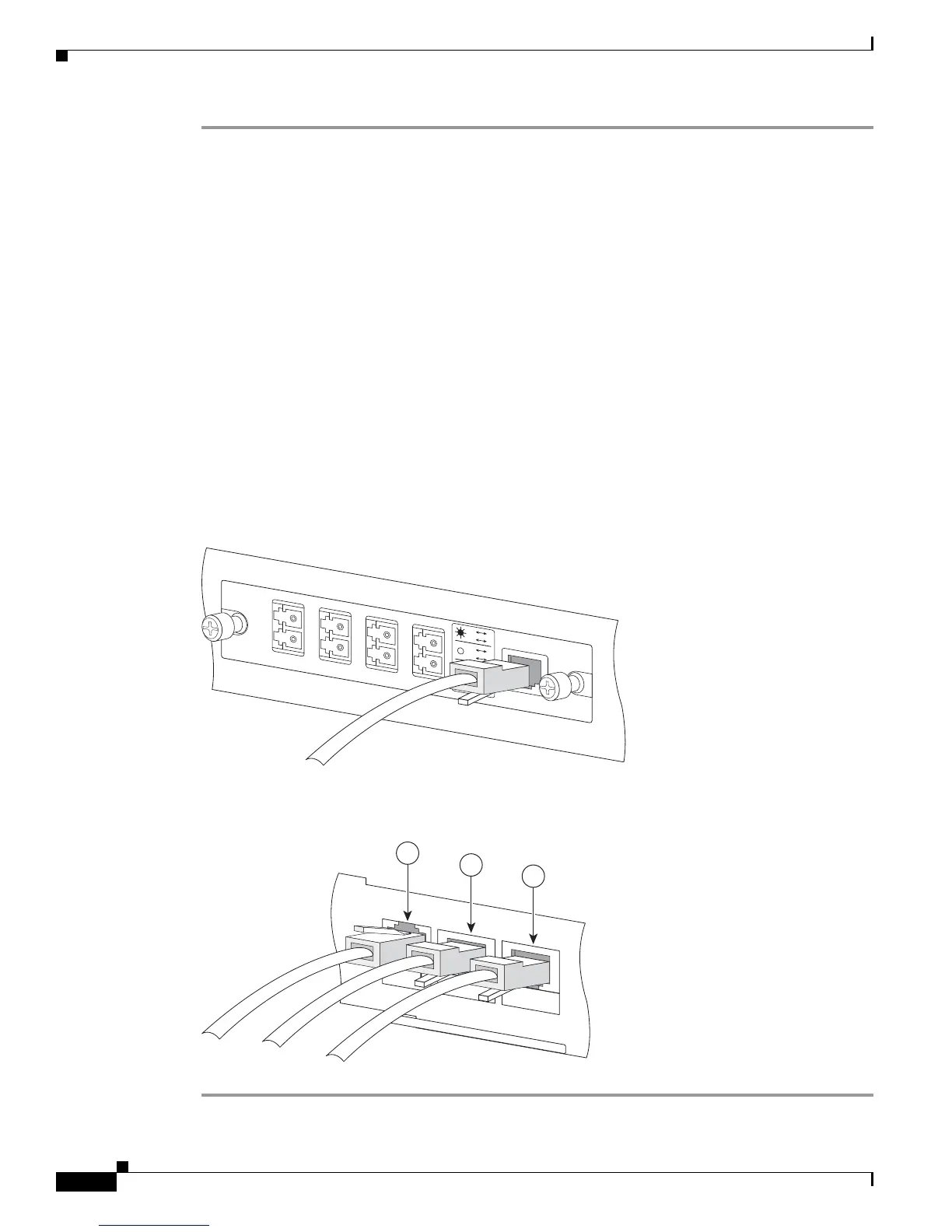

Figure 6-3 Cabling the CNTLR Interface on the External Bypass Module
Figure 6-4 Cabling the SCE8000-SCM-E Module
270977
TX
R
X
A
TX
RX
B
TX
RX
C
TX
RX
D
A
B
A
C
C
D
B
D
STAT
U
S
CTRL
OPB—SCE8K—MM
270976
S
CE8000-SCM-E
1
0/
1
00/
1
00
0
L
INK
/
AC
T
IVE
O
PTIC
A
L
B
YPASS1
C
ONS
OLE
PORT1
1
2
3
