Dashboard
Grid Management
21 Cisco Sx350, SG350X, SG350XG, Sx550X & SG550XG Series Managed Switches, Firmware Release 2.2.5.x
2

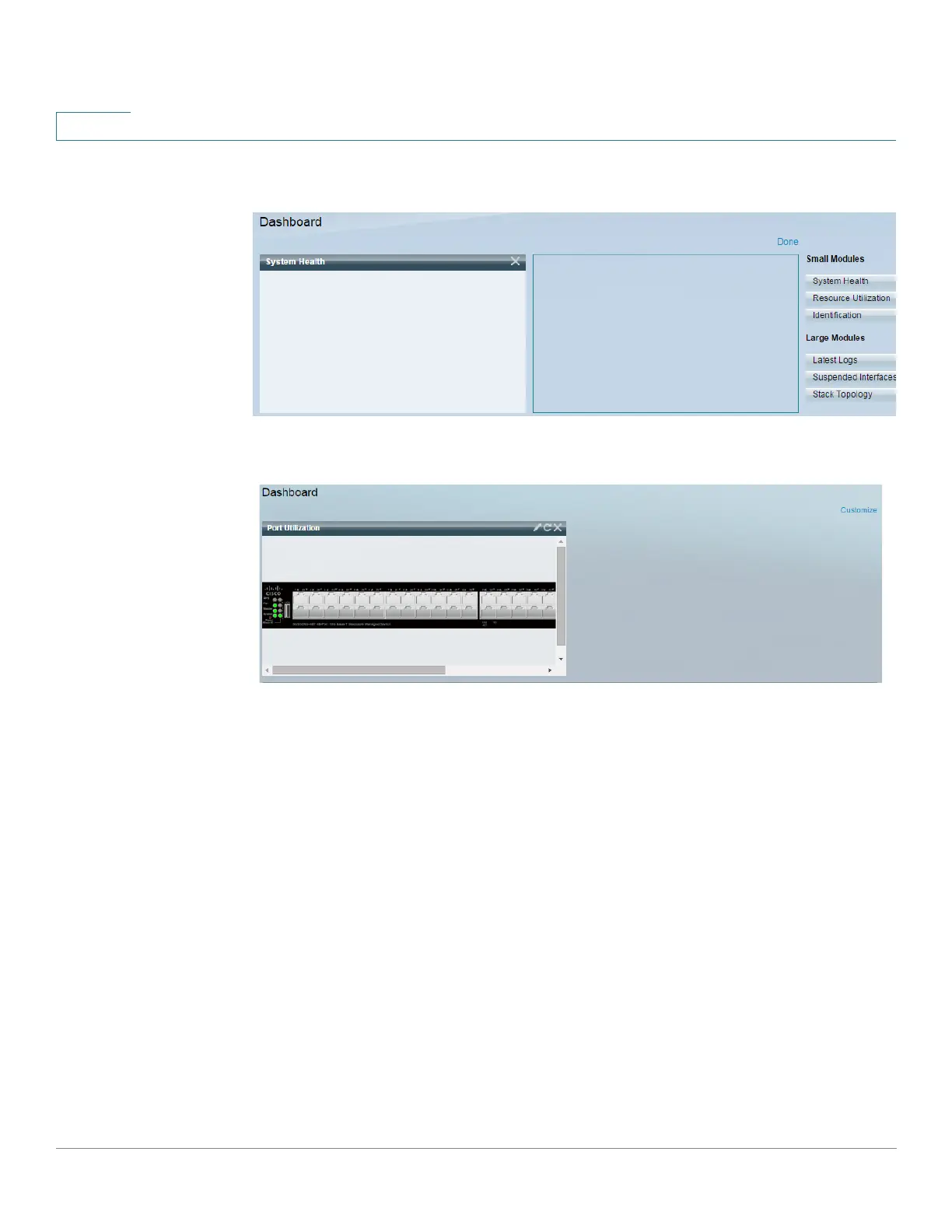

When you open the dashboard, a wire frame view of the grid is displayed, as shown below
(only 2 squares are shown in the following screen capture):
To display modules that are not currently being displayed, click on Customize on the upper-
right of the dashboard, as shown below:
Add modules to the grid by selecting a module from the list of modules on the right and
dragging and dropping it to any space in the grid.
The modules are divided into the following groups:
• Small Modules are modules that take up a single square
• Large Modules take up two squares.
If you drag a module into a space currently occupied, the new module replaces the previous
one.
You can re-arrange the placement of the modules in the grid by dragging a module from one
occupied grid position to another position. The module can be dropped in an unoccupied spot,
or in a spot occupied by a module of the same size. If the selected spot is occupied, the
modules switch places.

Cisco SG350-28 Specifications

General

Model	SG350-28
Category	Switch
Switching Capacity	56 Gbps
Layer	Layer 3
Power Supply	Internal
Form Factor	Rack-mountable
Relative Humidity	10% to 90% non-condensing
MAC Address Table Size	16K entries
Power Dedicated to PoE	Not applicable
Dimensions (W x D x H)	440 x 257 x 44 mm
Operating Temperature	0°C to 45°C
Storage Temperature	-20°C to 70°C
Power Consumption	24W
Input Voltage	100-240V AC, 50/60Hz
Jumbo Frame Support	Supported
Weight	3.2 kg
