IP Configuration: IPv4 VRRP Virtual Routers
Overview
357 Cisco 500 Series Stackable Managed Switch Administration Guide Release 1.3
19

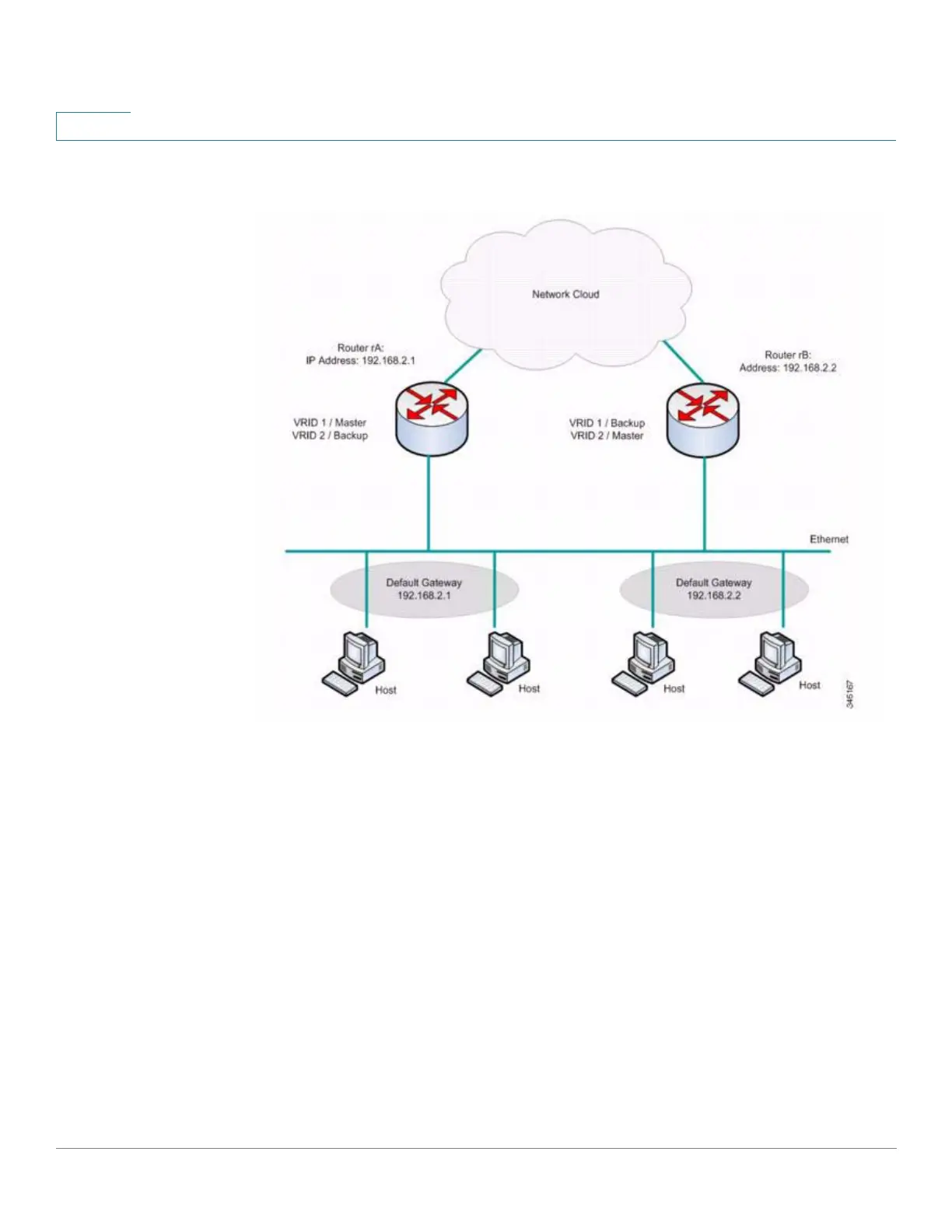

Load Sharing VRRP Topology
In this topology, two virtual routers are configured. For virtual router 1, rA is the
owner of IP address 192.168.2.1 and is the virtual router master, and rB is the virtual
router backup to rA. Clients 1 and 2 are configured with the default gateway IP
address of 192.168.2.1.
For virtual router 2, rB is the owner of IP address 192.168.2.2 and virtual router
master, and rA is the virtual router backup to rB. Clients 3 and 4 are configured with
the default gateway IP address of 192.168.2.2.
