Cisco UCS C200 M2 User Manual

Cisco UCS C200 M2 High-Density SFF Drive Rack-Mount Server
28
CONFIGURING the SERVER
STEP 10 SELECT AC POWER CORD(s)
Using Table 12, select the appropriate AC power cords. You can select a minimum of no power
cords and a maximum of two. If you select the option R2XX-DMYMPWRCORD, no power cord is
shipped with the server.

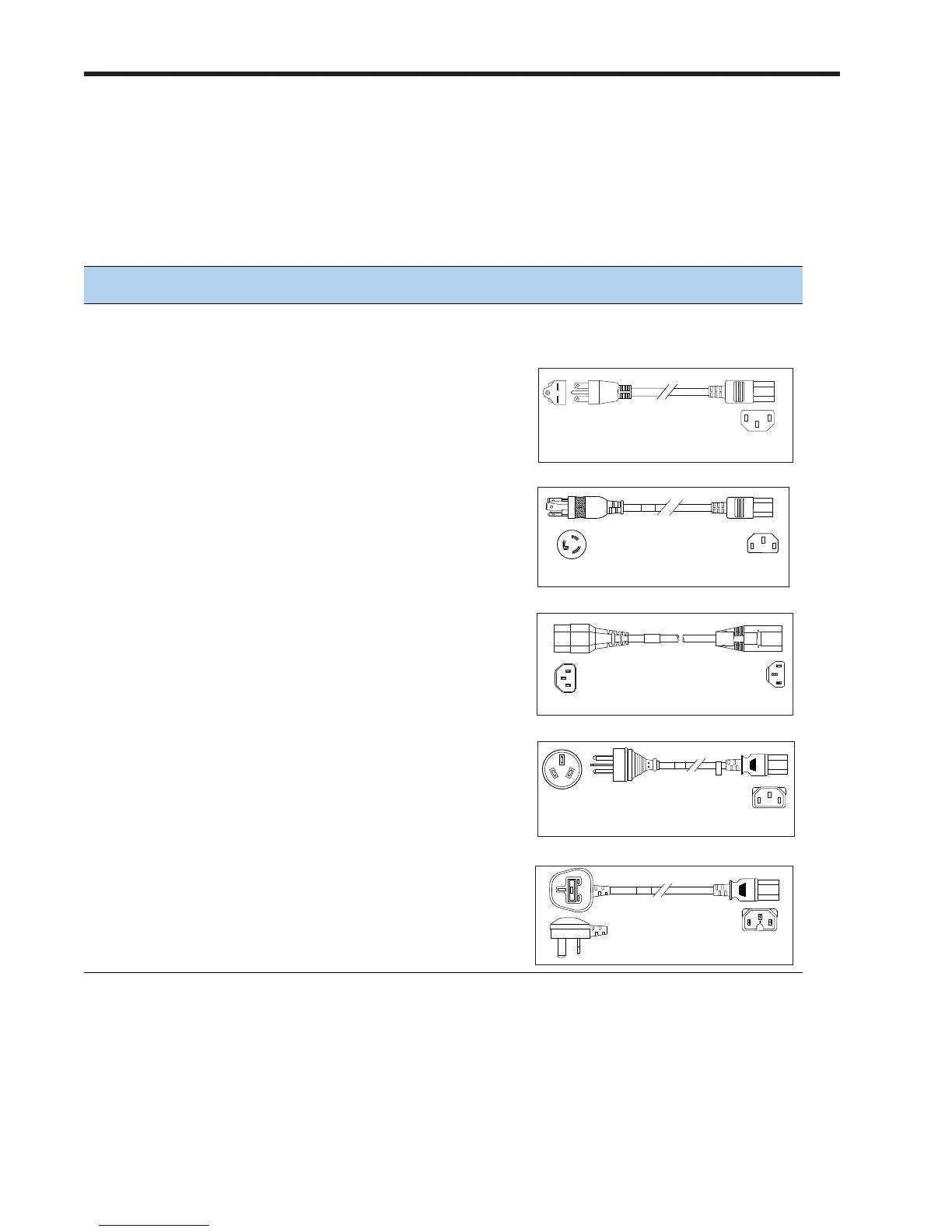

Table 12 Available Power Cords
Product ID (PID) PID Description Images
R2XX-DMYMPWRCORD No power cord (dummy PID to
allow for a no power cord option)
Not applicable
CAB-N5K6A-NA Power Cord, 200/240V 6A, North
America
CAB-AC-250V/13A Power Cord, NEMA L6-20 250V/20A
plug-IEC320/C13 receptacle, North
America,
CAB-C13-C14-JMPR Power Cord, recessed receptacle
AC power cord 27
SFS-250V-10A-AR Power Cord, SFS, 250V, 10A,
Argentina
CAB-9K10A-AU Power Cord, 250VAC 10A 3112 Plug,
Australia
Cordset rating: 10 A, 250 V
Length: 8.2 ft
1
86570
Plug: NEMA 6-15P
Connector:
IEC60320/C13
Cordset rating 13A, 250V
(6.6 feet) (79±2m)
Plug:
EL312MoldedTwistlock
(NEMA L6-20)
186568
Connector:
EL 701
(IEC60320/C13)
Cordset rating 10A, 250V
(686mm)
Plug:
SS10A
186569
Connector:
HS10S
186571
2500 mm
Cordset rating: 10 A, 250/500 V MAX
Length: 8.2 ft
Plug:
EL 219
(IRAM 2073)
Connector:
EL 701
(IEC60320/C13)
Plug:
Cordset rating: 10 A, 250 V/500 V MAX
Length: 2500mm
186580
Connector:
EL 701C
(EN 60320/C15)
EL 210
(BS 1363A) 13 AMP fuse

Cisco UCS C200 M2 Specifications

General

Tcase	76 °C
Bus type	QPI
Stepping	D0
FSB Parity	No
Processor code	SLBF8
Processor cache	4 MB
Processor cores	4
Processor model	E5506
System bus rate	4.8 GT/s
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor codename	Nehalem EP
Motherboard chipset	-
Processor frequency	2.13 GHz
Processor cache type	Smart Cache
Processor lithography	45 nm
Processor system type	DP
Processor manufacturer	Intel
Processor package size	42.5 x 45 mm
Processor front side bus	- MHz
Processor operating modes	64-bit
ECC supported by processor	Yes
Thermal Design Power (TDP)	80 W
Number of processors installed	1
CPU multiplier (bus/core ratio)	16
Maximum number of SMP processors	2
Memory types supported by processor	DDR3-SDRAM
Memory channels supported by processor	Triple
Memory clock speeds supported by processor	800 MHz
Memory bandwidth supported by processor (max)	19.2 GB/s
Maximum internal memory supported by processor	144 GB
HDD size	- \
RAID levels	0, 1
Optical drive type	DVD-RW
Total storage capacity	0 GB
Maximum storage capacity	0 TB
Number of HDDs installed	0
Internal memory	4 GB
Maximum internal memory	96 GB
Memory layout (slots x size)	1 x 4 GB
Graphics card	G200
Networking features	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Power supply	650 W
Power requirements	AC 120/230 V, 50/60 Hz
Chassis type	Rack (1U)
Processor ARK ID	37096

Weight and Dimensions

Depth	706.1 mm
Width	429.3 mm
Height	43 mm
