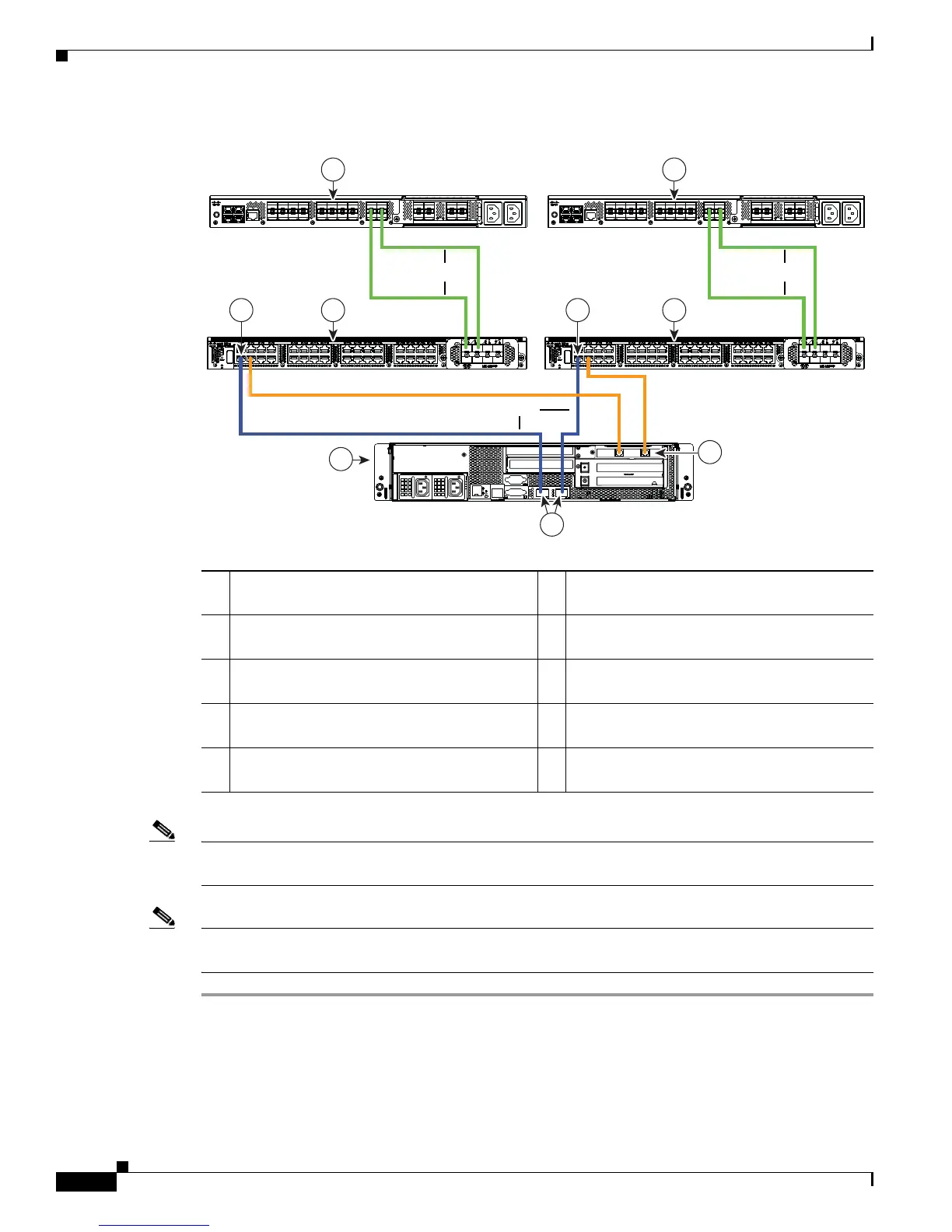

Figure D-3 Cabling Configuration for Cisco UCS Manager 2.0(2xx) Integration
Note The paths shown in blue carry management traffic. The paths shown in gold carry data traffic. The paths
shown in green carry both data and management traffic.
Note The maximum number of physical uplinks between a FEX and an FI is eight. See Hard-Pinning Mode
and Port-Channel Mode Discovery Policies, page D-2 for important information about FI port groups.
1 Cisco UCS 6100 Series or 6200 Series FI
(Fabric A)
6 Cisco Nexus 2232 FEX
(Fabric B)
2 GLC-T transceiver in FEX port
(Fabric A)
7 Cisco UCS C210 M2 server
3 Cisco Nexus 2232 FEX
(Fabric A)
8 1-Gb Ethernet LOM ports Eth1 and Eth2
4 Cisco UCS 6100 Series or 6200 Series FI
(Fabric B)
9 10-Gb adapter card in PCIe slot 1
5 GLC-T transceiver in FEX port
(Fabric B)
3
7
62 5
1 4
8
9
331219
1Gb
10Gb
10Gb
Fabric A Fabric B
