Appendix

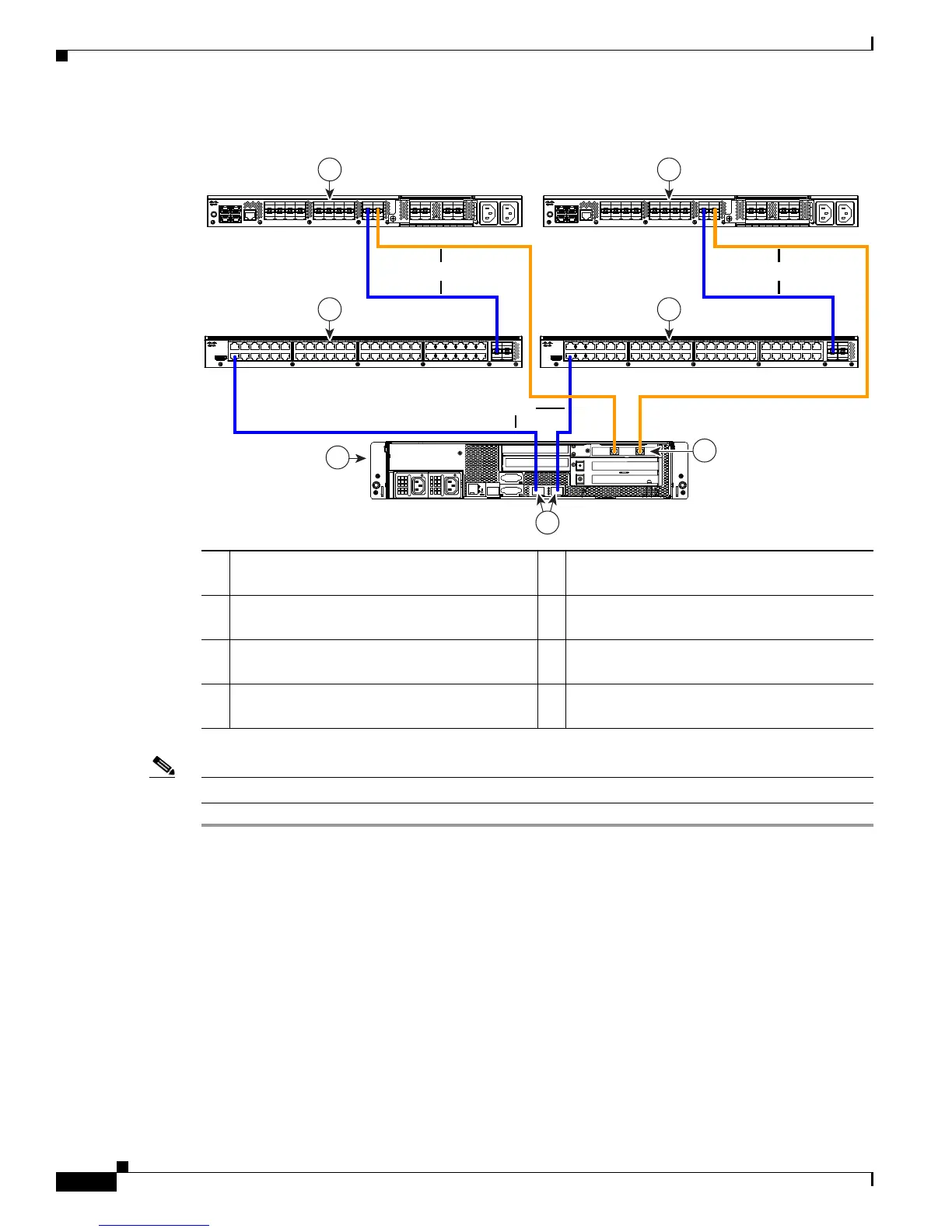

Figure D-5 Cabling Configuration For Cisco UCS Manager 1.4(nx) Integration
Note The paths shown in blue carry management traffic. The paths shown in gold carry data traffic.
1 Cisco UCS 6100 Series or 6200 Series FI
(Fabric A)
5 Cisco UCS C210 M2 server
2 Cisco Nexus 2248 FEX 
(Fabric A)
6 1-Gb Ethernet LOM ports
3 Cisco UCS 6100 Series or 6200 Series FI
(Fabric B)
7 10-Gb adapter card in PCIe slot 1
4 Cisco Nexus 2248 FEX 
(Fabric B)
2
5
4
1 3
6
7
236568
1Gb
10Gb
10Gb
Fabric A Fabric B
10Gb
