Step 3 The new CPU assembly is shipped on a CPU assembly tool. Take the new CPU assembly and CPU assembly tool out of
the carton.
If the CPU assembly and CPU assembly tool become separated, note the alignment features shown below for correct
orientation. The pin 1 triangle on the CPU carrier must be aligned with the angled corner on the CPU assembly tool.
CPUs and their sockets are fragile and must be handled with extreme care to avoid damaging pins.
Caution

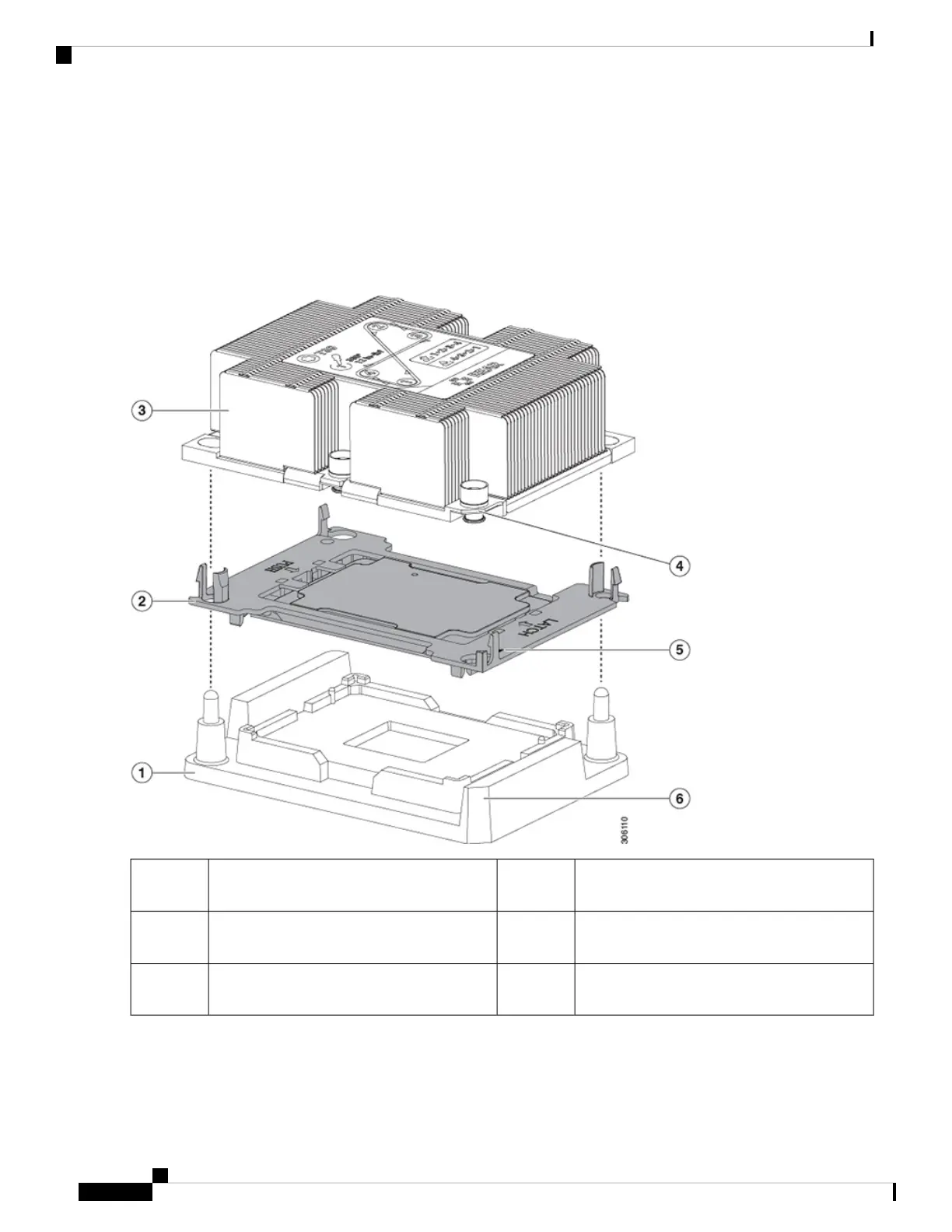

Figure 14: CPU Assembly Tool, CPU Assembly, and Heatsink Alignment Features
Angled corner on heatsink (pin 1 alignment
feature)
4CPU assembly tool1
Triangle cut into carrier (pin 1 alignment
feature)
5CPU assembly (CPU in plastic carrier)2
Angled corner on CPU assembly tool (pin 1
alignment feature)
6Heatsink3
Step 4 Apply new TIM to the heatsink:
The heatsink must have new TIM on the heatsink-to-CPU surface to ensure proper cooling and performance.
Note
Maintaining the Server
28
Maintaining the Server
Replacing a CPU and Heatsink

Cisco UCS C220 M5 Specifications

General

Processor cache	22 MB
Processor model	6130
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.7 GHz
Number of processors installed	2
On-board graphics card	-
Memory slots	24
Internal memory	64 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Supported HDD sizes	2.5, 3.5 \
Supported SSD sizes	2.5\
Total storage capacity	32 GB
Maximum storage capacity	- TB
Chassis type	Rack (1U)
Power supply	700 W
Intel TSX-NI version	1.00
