Replacing Memory DIMMs
DIMMs and their sockets are fragile and must be handled with care to avoid damage during installation.
Caution
Cisco does not support third-party DIMMs. Using non-Cisco DIMMs in the server might result in system
problems or damage to the motherboard.
Caution
To ensure the best server performance, it is important that you are familiar with memory performance guidelines
and population rules before you install or replace DIMMs.
Note
DIMM Population Rules and Memory Performance Guidelines
This topic describes the rules and guidelines for maximum memory performance.
DIMM Slot Numbering

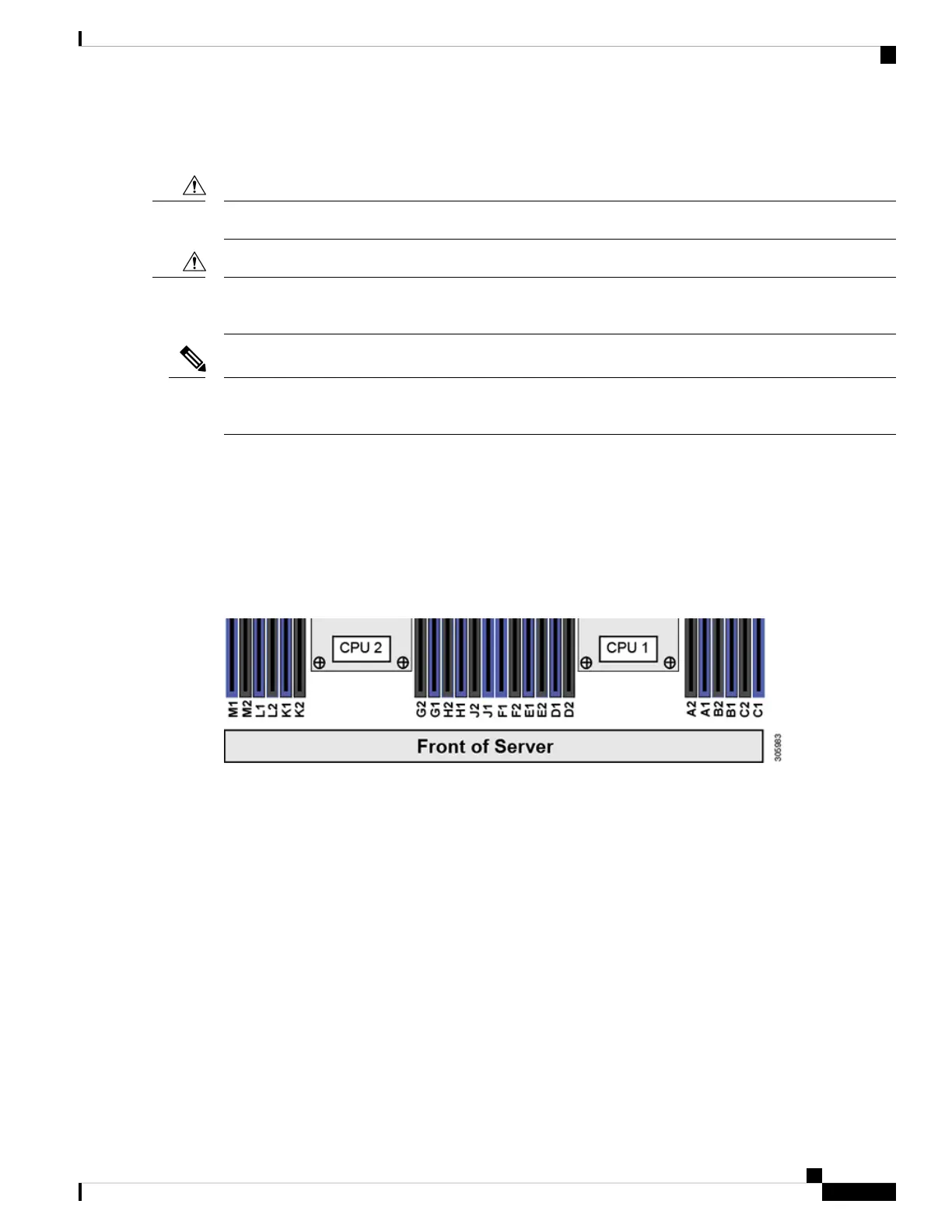

The following figure shows the numbering of the DIMM slots on the motherboard.
Figure 21: DIMM Slot Numbering
DIMM Population Rules
Observe the following guidelines when installing or replacing DIMMs for maximum performance:
• Each CPU supports six memory channels.
• CPU 1 supports channels A, B, C, D, E, F.
• CPU 2 supports channels G, H, J, K, L, M.
• Each channel has two DIMM sockets (for example, channel A = slots A1, A2).
• In a single-CPU configuration, populate the channels for CPU1 only (A, B, C, D, E, F).
• For optimal performance, populate DIMMs in the order shown in the following table, depending on the
number of CPUs and the number of DIMMs per CPU. If your server has two CPUs, balance DIMMs
evenly across the two CPUs as shown in the table.
Maintaining the Server
37
Maintaining the Server
Replacing Memory DIMMs

Cisco UCS C220 M5 Specifications

General

Processor cache	22 MB
Processor model	6130
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.7 GHz
Number of processors installed	2
On-board graphics card	-
Memory slots	24
Internal memory	64 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Supported HDD sizes	2.5, 3.5 \
Supported SSD sizes	2.5\
Total storage capacity	32 GB
Maximum storage capacity	- TB
Chassis type	Rack (1U)
Power supply	700 W
Intel TSX-NI version	1.00
