Cisco UCS C220 M5 User Manual

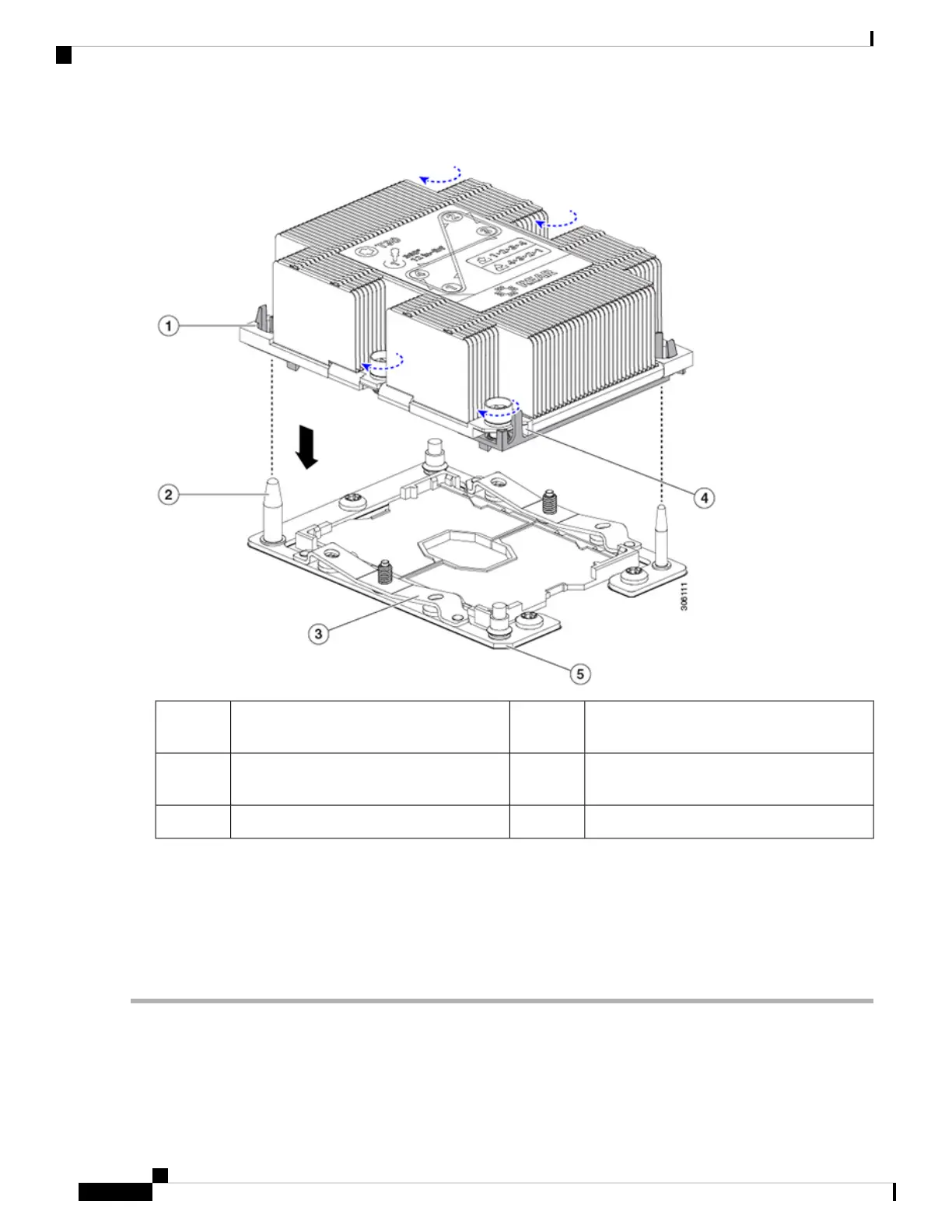

Figure 20: Installing the Heatsink/CPU Assembly to the CPU Socket
Angled corner on heatsink (pin 1 alignment
feature)
4Guide hole in assembly (two)1
Angled corner on socket (pin 1 alignment
feature)
5CPU socket alignment post (two)2
-CPU socket leaf spring3
b) On the new board, set the heatsink with CPU assembly down onto the CPU socket.
c) Use a T-30 Torx driver to tighten the four captive nuts that secure the heatsink to the board standoffs.
Alternate tightening the heatsink nuts evenly so that the heatsink remains level while it is lowered. Tighten
the heatsink nuts in the order shown on the heatsink label: 1, 2, 3, 4. The captive nuts must be fully tightened
so that the leaf springs on the CPU socket lie flat.
Note
Maintaining the Server
36
Maintaining the Server
Moving an M5 Generation CPU

Cisco UCS C220 M5 Specifications

General

Processor cache	22 MB
Processor model	6130
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.7 GHz
Number of processors installed	2
On-board graphics card	-
Memory slots	24
Internal memory	64 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Supported HDD sizes	2.5, 3.5 \
Supported SSD sizes	2.5\
Total storage capacity	32 GB
Maximum storage capacity	- TB
Chassis type	Rack (1U)
Power supply	700 W
Intel TSX-NI version	1.00
