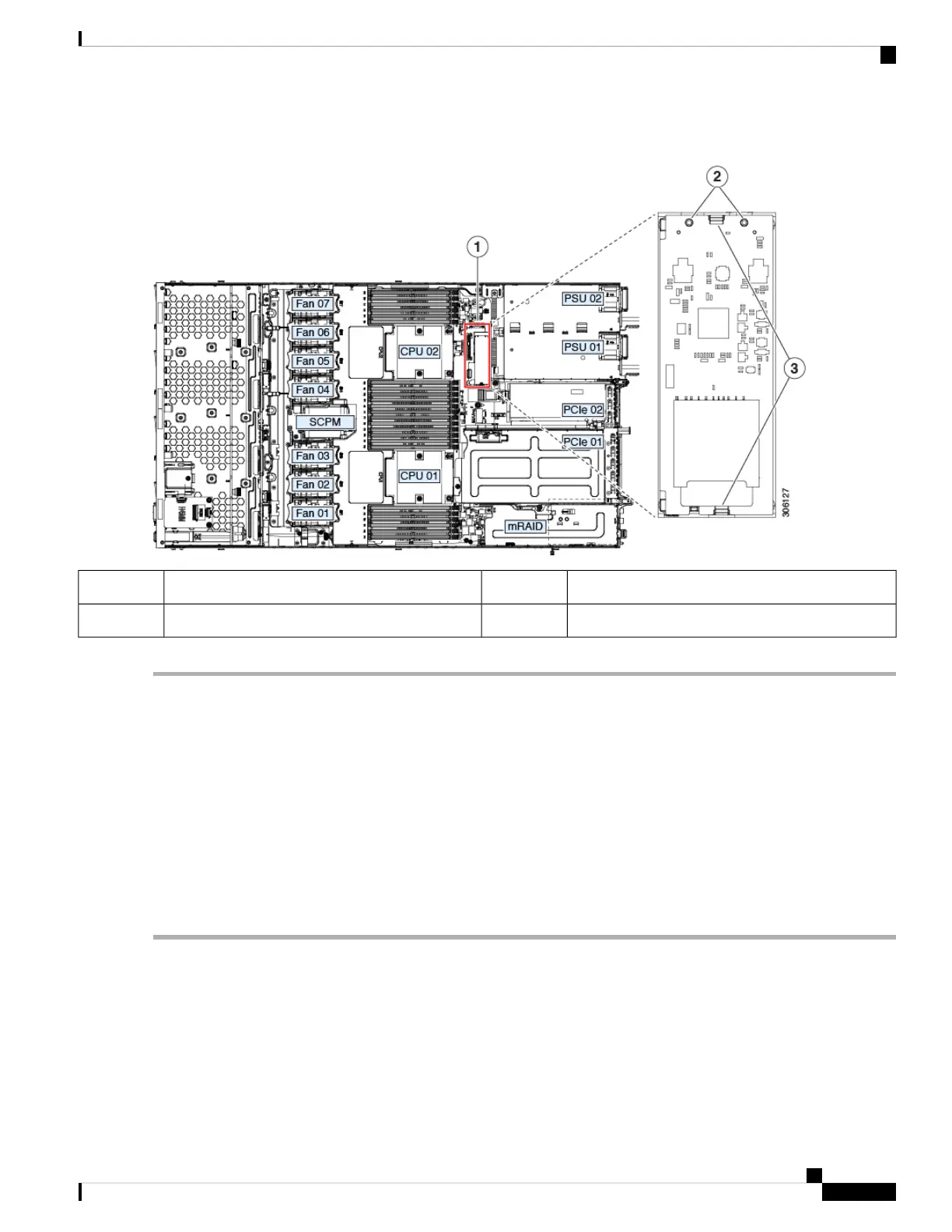

Figure 24: Mini-Storage Module Carrier
Securing clips3Location of socket on motherboard1
-Alignment pegs2
Replacing an SD Card in a Mini-Storage Carrier For SD
This topic describes how to remove and replace an SD card in a mini-storage carrier for SD (PID
UCS-MSTOR-SD). The carrier has one SD card slot on its top and one slot on its underside.
Population Rules For Mini-Storage SD Cards
• You can use one or two SD cards in the carrier.
• Dual SD cards can be configured in a RAID 1 array through the Cisco IMC interface.
• SD slot 1 is on the top side of the carrier; SD slot 2 is on the underside of the carrier (the same side as
the carrier's motherboard connector).
Step 1 Power off the server and then remove the mini-storage module carrier from the server as described in Replacing a
Mini-Storage Module Carrier, on page 44.
Step 2 Remove an SD card:
a) Push on the top of the SD card, and then release it to allow it to spring out from the socket.
b) Grasp and remove the SD card from the socket.
Step 3 Install a new SD card:
Maintaining the Server
45
Maintaining the Server
Replacing an SD Card in a Mini-Storage Carrier For SD

Cisco UCS C220 M5 Specifications

General

Processor cache	22 MB
Processor model	6130
Execute Disable Bit	Yes
Processor frequency	2.1 GHz
Processor manufacturer	Intel
Processor boost frequency	3.7 GHz
Number of processors installed	2
On-board graphics card	-
Memory slots	24
Internal memory	64 GB
Internal memory type	DDR4-SDRAM
Maximum internal memory	128 GB
SSD interface	Serial Attached SCSI (SAS)
Optical drive type	No
Supported HDD sizes	2.5, 3.5 \
Supported SSD sizes	2.5\
Total storage capacity	32 GB
Maximum storage capacity	- TB
Chassis type	Rack (1U)
Power supply	700 W
Intel TSX-NI version	1.00
