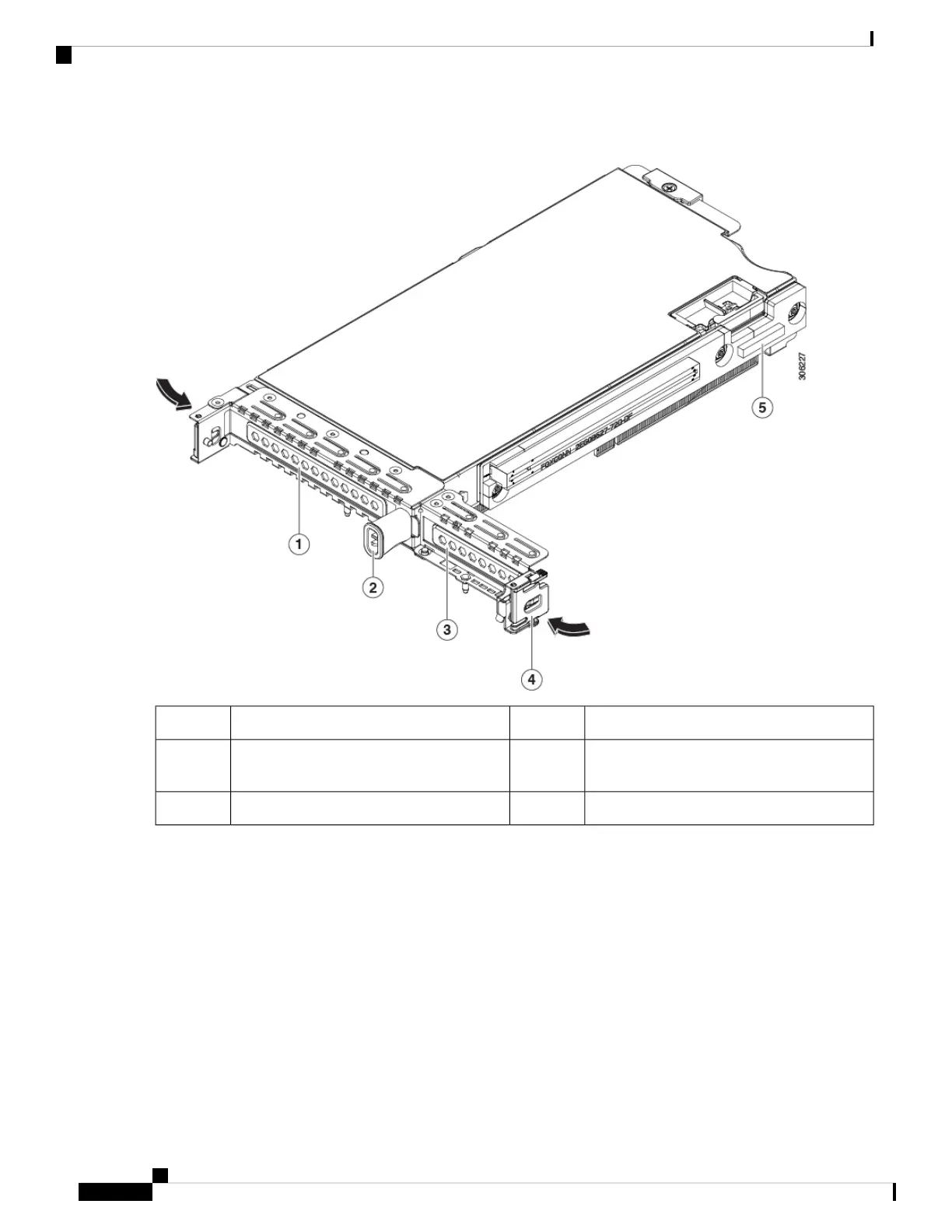

Figure 32: PCIe Riser Assembly

Hinged card retainer (one each slot)4PCIe slot 1 rear-panel opening1

PCIe connector for cable that supports

front-panel NVMe SSDs

5External riser handle2

PCIe slot 2 rear-panel opening3

d) Position the PCIe riser over its two sockets on the motherboard and over the two chassis alignment channels.
