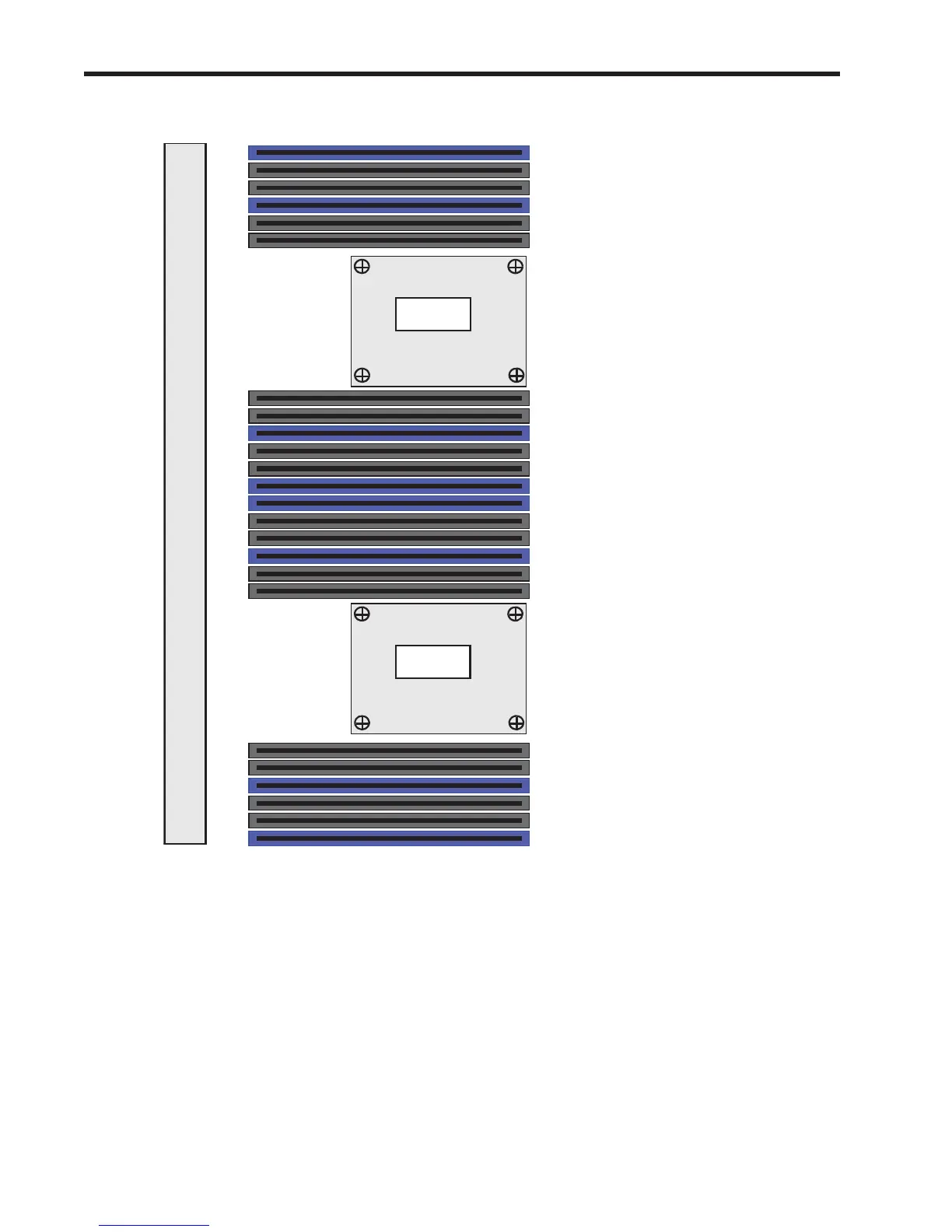

Figure 8 Physical Layout of CPU DIMM Channels and Banks
Front of Server
CPU 1
CPU 2
F3
F2
F1
E3
E2
E1
G1
G2
G3
H1
H2
H3
B3
B2
B1
A3
A2
A1
C1
C2
C3
D1
D2
D3
