Cisco UCS C240 M3 - RAID Option ROM (OPROM) Settings

Cisco UCS C240 M3 High-Density Rack Server (Small Form Factor Disk Drive Model)
74
SUPPLEMENTAL MATERIAL
RAID Option ROM (OPROM) Settings
The server contains an Option ROM (OPROM) for the PCIe slots. The server has a finite amount of option
ROM with which it can boot up devices. Go into the BIOS and disable the OPROM on the PCIe slots not used
for booting so that resources are available for the slots that are used for booting. An example OPROM BIOS
screen is shown in
Figure 9.

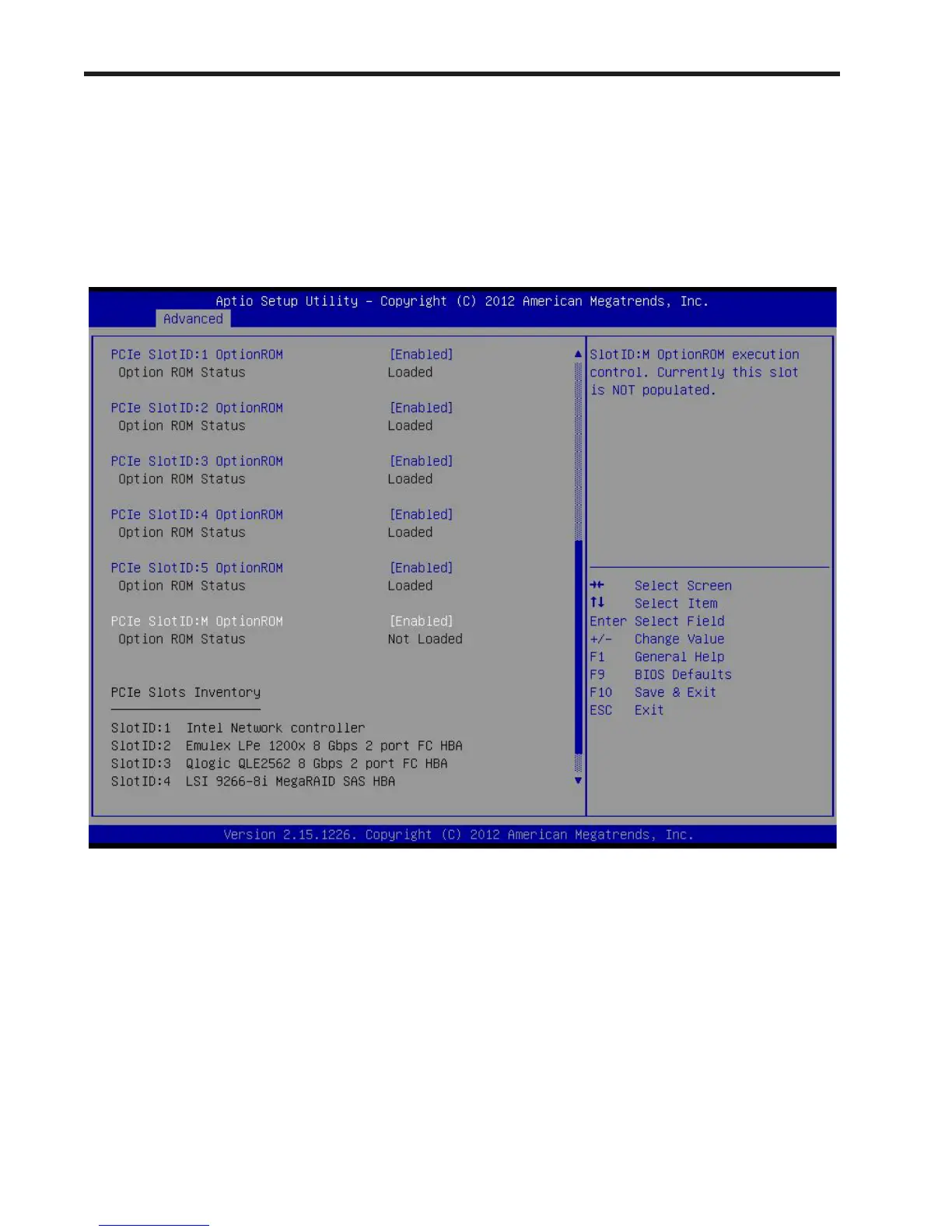

Figure 9 Example BIOS Screen for OPROM
