Chassis Rear View
Figure 3 shows the external features of the rear panel.

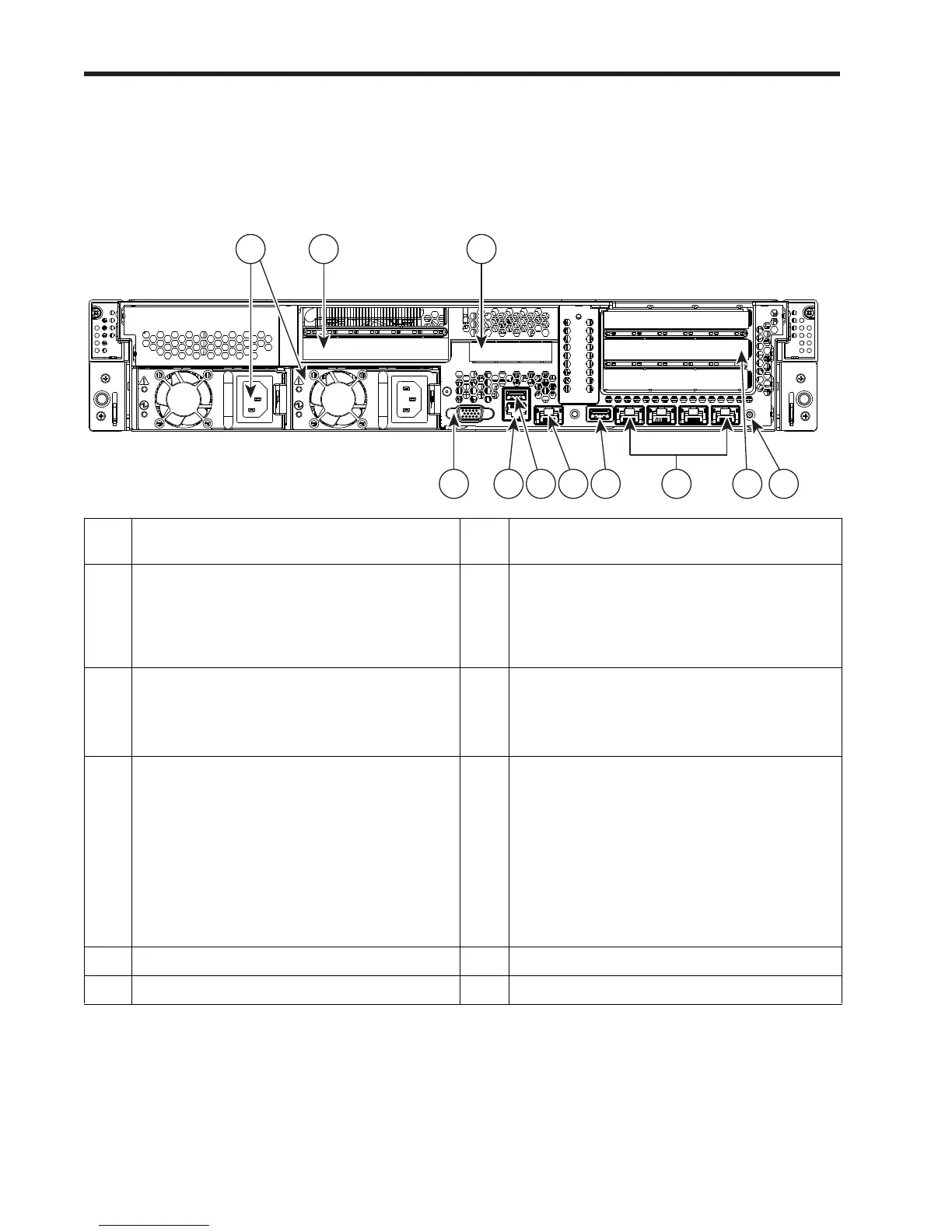

Figure 3 Chassis Rear View
1 Power supplies (up to two) 7 One RJ-45 10/100/1000 Ethernet dedicated
management port
2 Standard-profile PCIe slot on riser 2:
PCIe 5—full-height, 3/4-length
(approximately 10.5 in. long), x16 lane
width, x24 connector, GPU ready, and
supports Cisco Virtual Interface Card (VIC)
8 USB 2.0 port
3 PCIe slot on riser 2:
PCIe 4—half-height, half-length (9.64 in.),
x8 lane width, x16 connector, no NCSI
2
support
9 Quad 1-GbE ports
(LAN1, LAN2, LAN3, and LAN4)
4 VGA video connector 10 Standard-profile PCIe slots on riser 1(three):
PCIe 1—full-height, 3/4-length, x8 lane
width, x16 connector
1
PCIe 2—full-height, 3/4-length
(approximately 10.5 in. long), x16 lane
width, x24 connector, GPU ready, and
supports Cisco Virtual Interface Card (VIC)
PCIe 3—full-height, half-length, x8 lane
width, x16 connector
Notes . . .
1. PCIe slot 1 is not available when a double-width GPU is installed in slot 2.
5
Serial connector (RJ-45)
2
2. For serial port pinout details, see Serial Port Details, page 75
11 Rear Identification button/LED
6 USB 2.0 port —
PSU1 PSU2
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
4 98 107 1165
2 3
331826
1

Cisco UCS C240 M3 Specifications

General

Processor cores	8
Processor model	E5-2600
Processor frequency	2.7 GHz
Number of processors installed	2
HDD size	2.5 \
RAID support	Yes
HDD interface	-
Optical drive type	No
Total storage capacity	300 GB
Maximum storage capacity	- TB
Number of HDDs installed	16
Memory slots	24
Internal memory	96 GB
Memory clock speed	1866 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	- GB
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
PCI Express x8 slots	3
Chassis type	Rack (2U)
Power supply	650 W
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12000 m
Operating temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 93 %
Operating relative humidity (H-H)	10 - 90 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	712 mm
Width	445 mm
Height	87 mm
