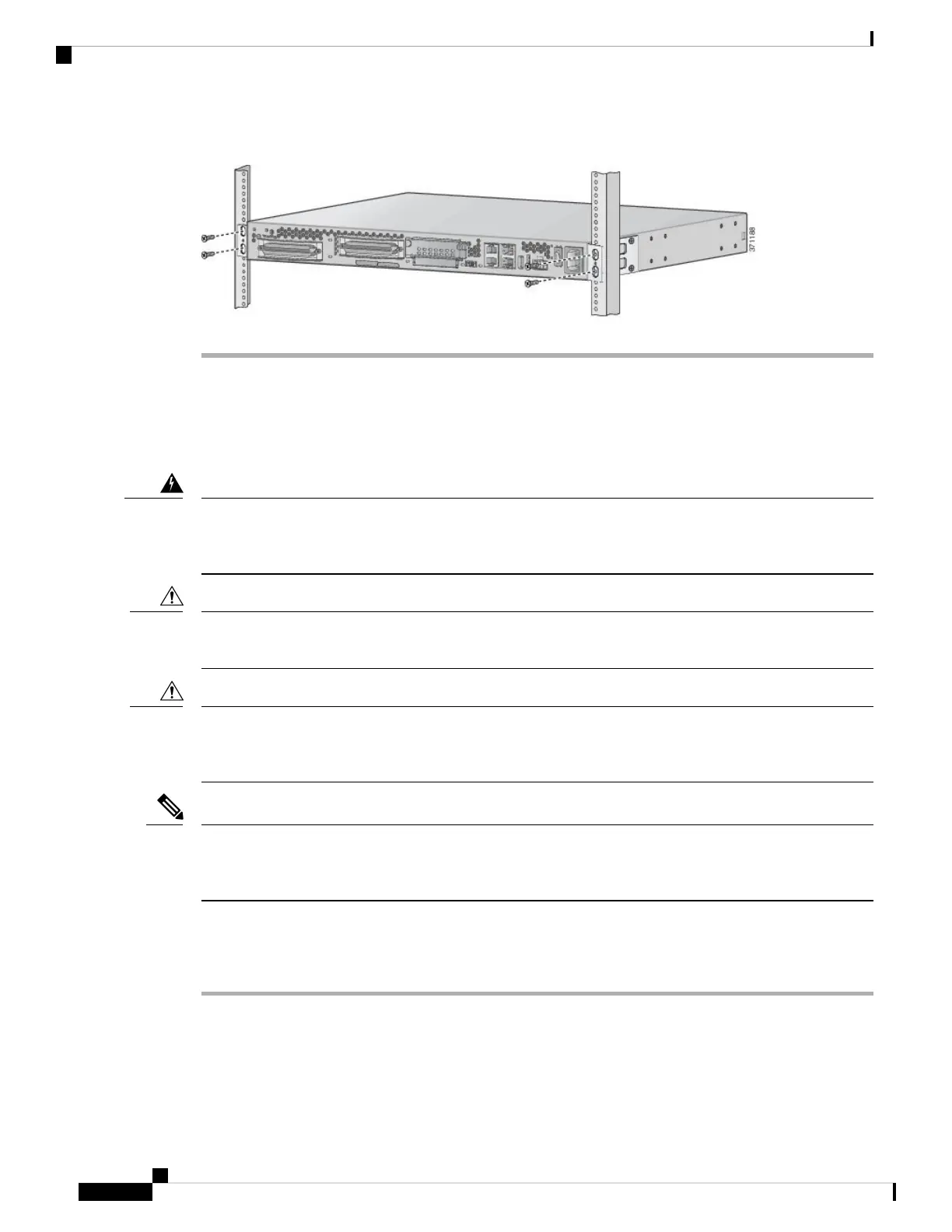

Figure 3: Attaching the Chassis to the 19-Inch Rack
Mounting the Chassis on a Wall
Before you begin
This unit is intended to be mounted on a wall. Read the wall-mounting instructions carefully before beginning
installation. Failure to use the correct hardware or to follow the correct procedures could result in a hazardous
situation to people and damage to the system. Statement 248
Warning
Ensure that the chassis is oriented with the back panel connectors aligned sideways and not facing vertically
upward or downward.
Caution
Two types of mounting screws are provided in separate packages to attach the mounting brackets to the chassis.
Take care to use the correct screw type and washers for the required mounting option (rack mounting or wall
mounting). For more information, see Mounting Screws, on page 6.
Caution
You must arrange for the fasteners required to install the chassis on a wall. These fasteners are not included
in the package. We recommend that you select the fasteners that are appropriate for the material the wall is
made of.
Note
To mount the chassis on a wall:
Procedure
Step 1 Attach the short leg of one bracket to the chassis, using two 6-32 × 1/4 slotted hex screws (provided). Use a
plastic washer (provided) with each screw, with the narrow end of the washer fitting into the bracket slot, and
facing the chassis.
