Replacing a Fan Tray or Air Filter
Figure 5-38 Removing the Cisco 3900 Series Router Bezel
Step 3 Locate the filter, recessed inside the bezel.
Step 4 Remove the filter and insert the replacement filter inside the bezel.
Step 5 Snap the bezel back in place. See Figure 5-39.

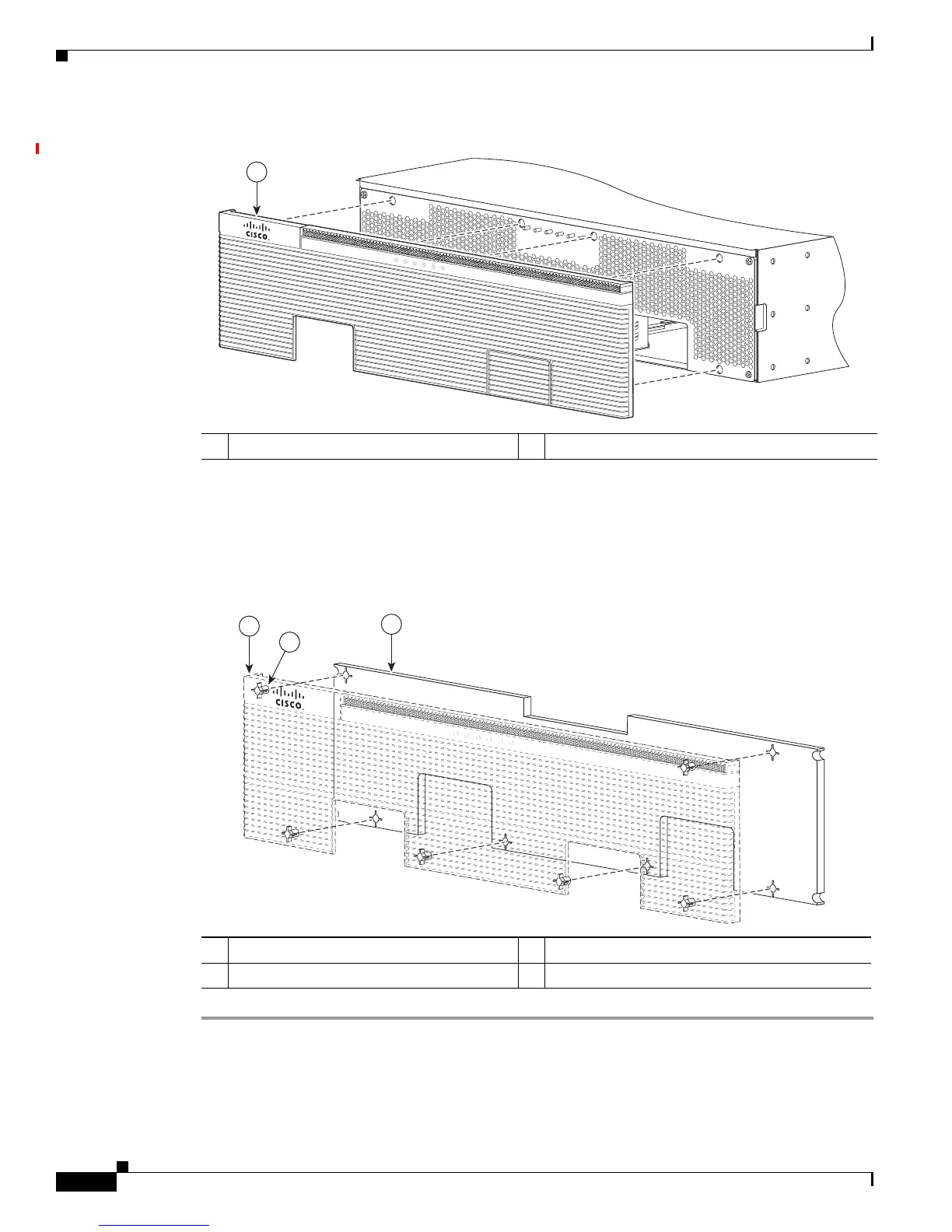

Figure 5-39 Replacing the Cisco 3900 Series Air Filters
)
1 Bezel
250920
SYS ACT
SYS
PW
R
1
AUX
PWR1
SYS
PW
R
2
AUX
PW
R
2
Cisco 3900 Series
1
1 Bezel 2 Snaps (stationary)
3 Air filter
