25
Chapter 2 Printer Operation
Setting the Media

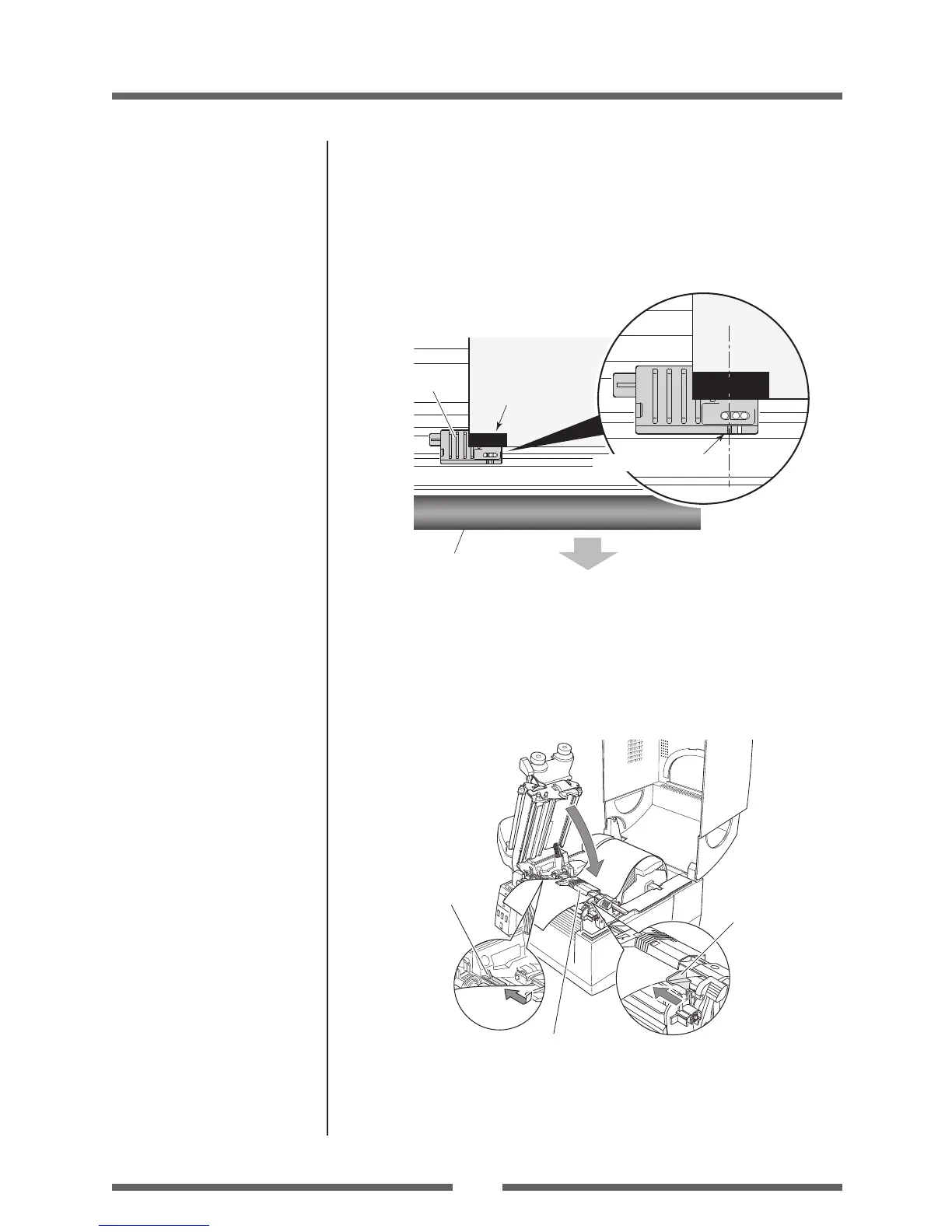

When using a reective sensor
Adjust the position of the sensor so that the reective sensor marker
of the bottom sensor is at the center of the black mark of the media
as shown below.
Front
Black mark
Media
Bottom sensor
Reective sensor marker
Black mark
Platen
7. Lift the sensor arm up temporarily and adjust the media
guide. Align the media with the xed media guide on the left
side, and then align the moveable media guide on the right
side with the width of the media. Lower the sensor arm and
x the media in place.
Fixed media guide
To Next Page
